Network Video Recorder User Manual
145
Human Body Detection

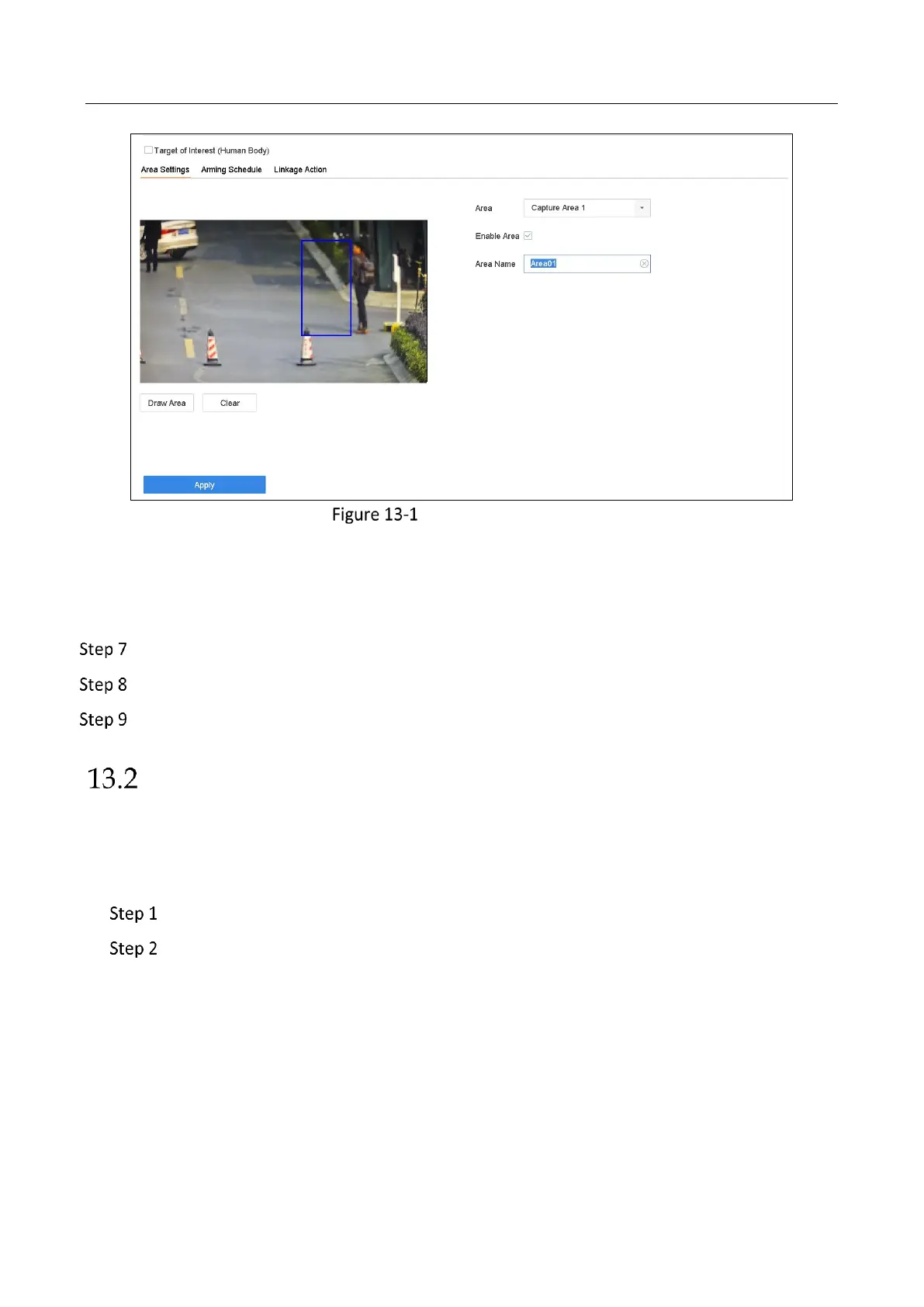

4) Click Draw Area to draw a quadrilateral in the preview window and then click Stop
Drawing.
Related Operation: You can click Clear to clear the existing virtual line and re-draw it.
Set the arming schedule. Refer to Chapter 11.1 Configure Arming Schedule.
Set the linkage actions. Refer to Chapter 11.2 Configure Alarm Linkage Actions.
Click Apply to activate the settings.
Face Detection
Purpose:
Face detection function detects the face appears in the surveillance scene. Linkage actions will be
triggered when a human face is detected.
Go to System > Event > Smart Event.
Click Face Detection.
