Network Video Recorder User Manual
45
No.
Item
Description
7
USB Interface
Universal Serial Bus (USB) port for additional devices.
8
Power Supply
12 VDC power supply.
9
GND
Ground
DS-7200HGHI-K2

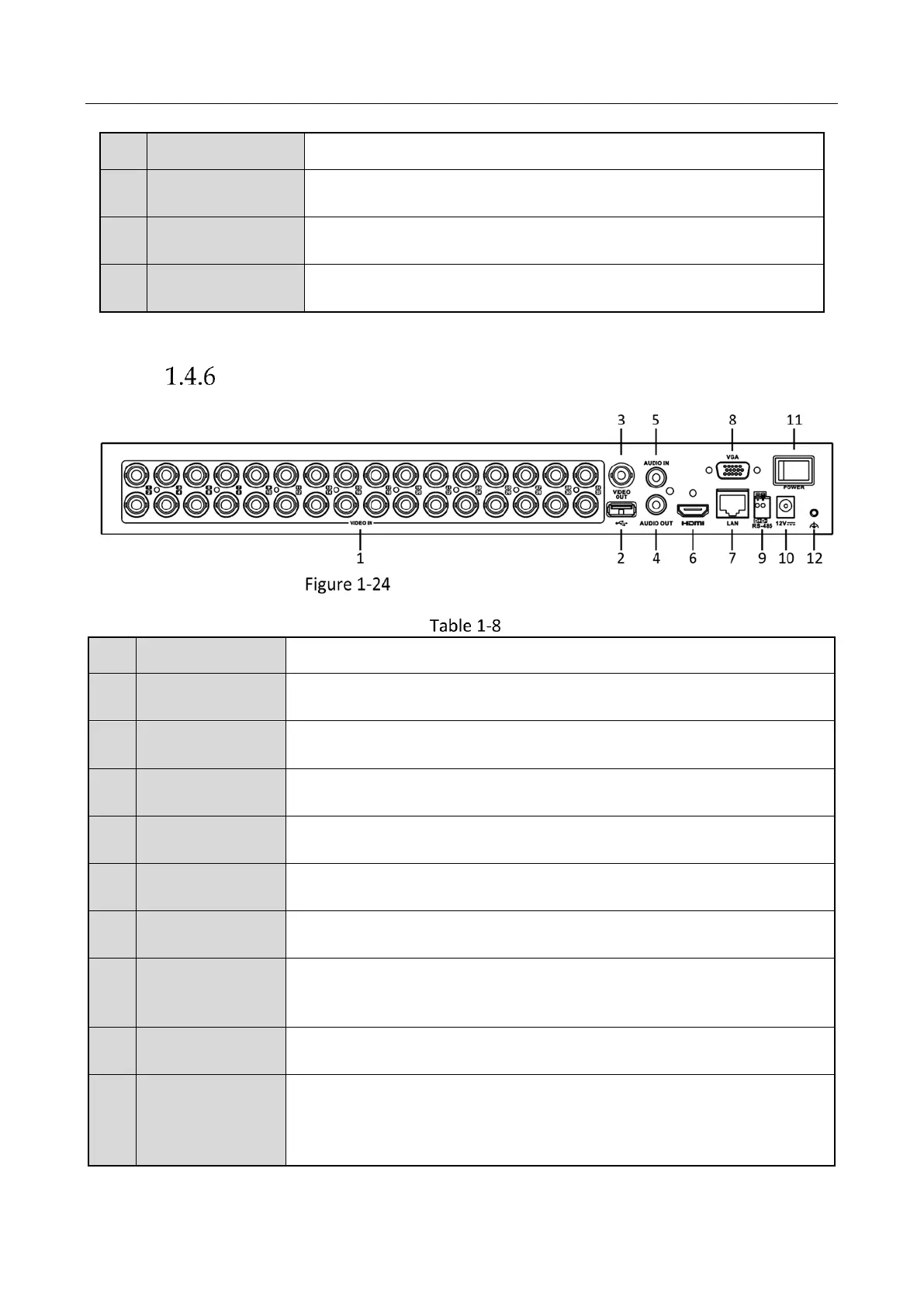

Rear Panel of DS-7200HGHI-K2
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
2
USB Interface
Universal Serial Bus (USB) port for additional devices.
3
VIDEO OUT
BNC connector for video output.
4
AUDIO OUT
RCA connector.
5
AUDIO IN
RCA connector.
6
HDMI Interface
HDMI video output connector.
7
Network
Interface
Connector for network.
8
VGA Interface
VGA video output connector. Display local video output and menu.
9
RS-485 Interface
D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,
the first DVR’s D+, D- pin should be connected with the D+, D- pin of
the next DVR.
