HIKVISION DS-8132HQHI-K8 User Manual

Network Video Recorder User Manual
47
No.
Item
Description
9
Network
Interface
Connector for network.
10
RS-485 and
Alarm Interface
Connector for RS-485 devices. T+ and T- pins connect to R+ and R- pins
of PTZ receiver respectively.
D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,
the first DVR’s D+, D- pin should be connected with the D+, D- pin of
the next DVR.
Connector for alarm input.
Connector for alarm output.
11
eSATA
Connects external SATA HDD, CD/DVD-RW.
12
GND
Ground
13
Power Supply
100 to 240 VAC power supply.
14
Power Switch
Switch for turning on/off the device.
DS-9000HTHI-K8

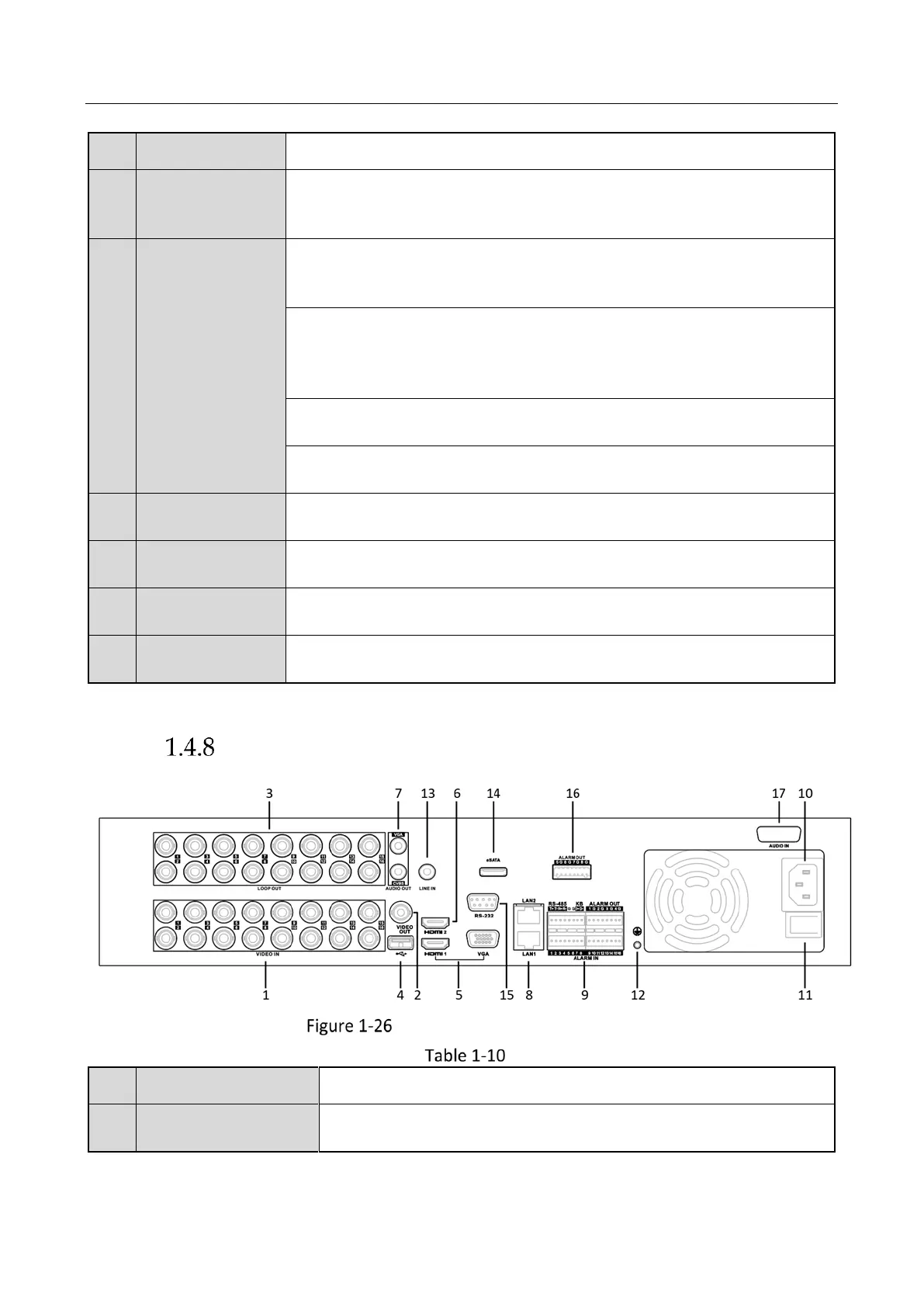

Rear Panel of DS-9000HTHI-K8
Rear Panel Description
No.
Item
Description
1
VIDEO IN
BNC interface for Turbo HD and analog video input.
