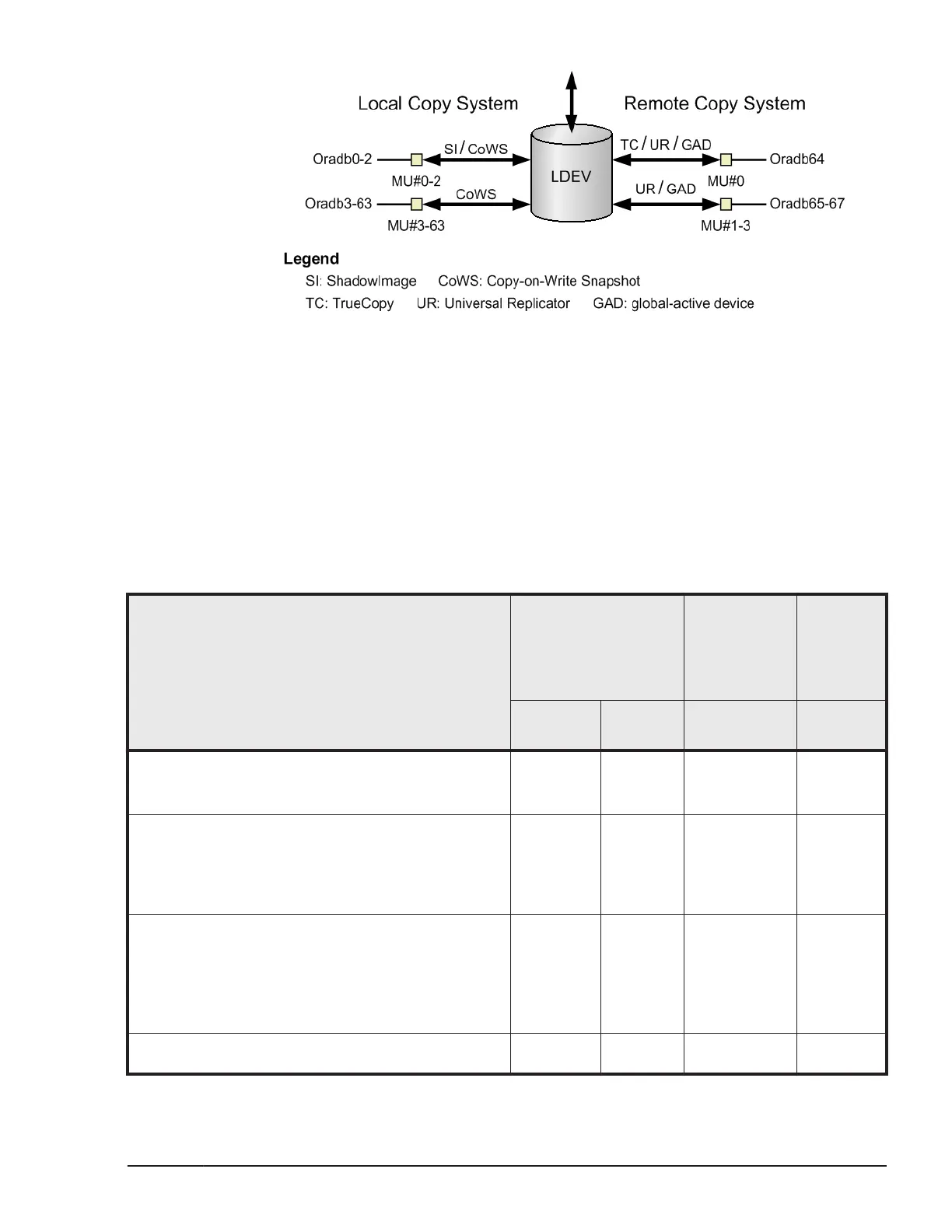

Figure 2-14 Management of Pair configuration by Mirror Descriptors
Correspondence of configuration file and mirror descriptors
The group name and MU# that are noted in the HORCM_DEV section of the
configuration definition file are assigned to the corresponding mirror
descriptors. This outline is described in the following table. "Omission of
MU#" is handled as MU#0, and the specified group is registered to MU#0 on
ShadowImage/Copy-on-Write Snapshot and TrueCopy/Universal Replicator/
global-active device. Also, when you note the MU# in HORCM_DEV, the
sequence of the MU# can be random (for example, 2, 1, 0).
Table 2-3 Assignments of Group name and MU# to Mirror Descriptors
HORCM_DEV Parameter in Configuration File
MU#0
ShadowIma
ge (Copy-on-
Write
Snapshot)
Only
UR/GAD
TC/
UR/GAD
SI
MU#1-#2
(MU#3-#63)
MU#1-#3
HORCM_DEV
#dev_group dev_name port# TargetID LU# MU#
Oradb oradev1 CL1-D 2 1
oradev1 oradev1 - -
HORCM_DEV
#dev_group dev_name port# TargetID LU# MU#
Oradb oradev1 CL1-D 2 1
Oradb1 oradev11 CL1-D 2 1 1
Oradb2 oradev21 CL1-D 2 1 2
oradev1 oradev1 oradev11
oradev21
-
HORCM_DEV
#dev_group dev_name port# TargetID LU# MU#
Oradb oradev1 CL1-D 2 1
Oradb1 oradev11 CL1-D 2 1 0
Oradb2 oradev21 CL1-D 2 1 1
Oradb3 oradev31 CL1-D 2 1 2
oradev1 oradev11 oradev21
oradev31
-
HORCM_DEV
#dev_group dev_name port# TargetID LU# MU#
- oradev1 - -
