CRANKCASE
GX270 CRANKSHAFT/BALANCER WEIGHT BEARING/
OIL SEAL REPLACEMENT (CYLINDER BARREL SIDE)
LOCATION
CRANKSHAFT OIL SEAL
(30 x 46 x 8 mm)

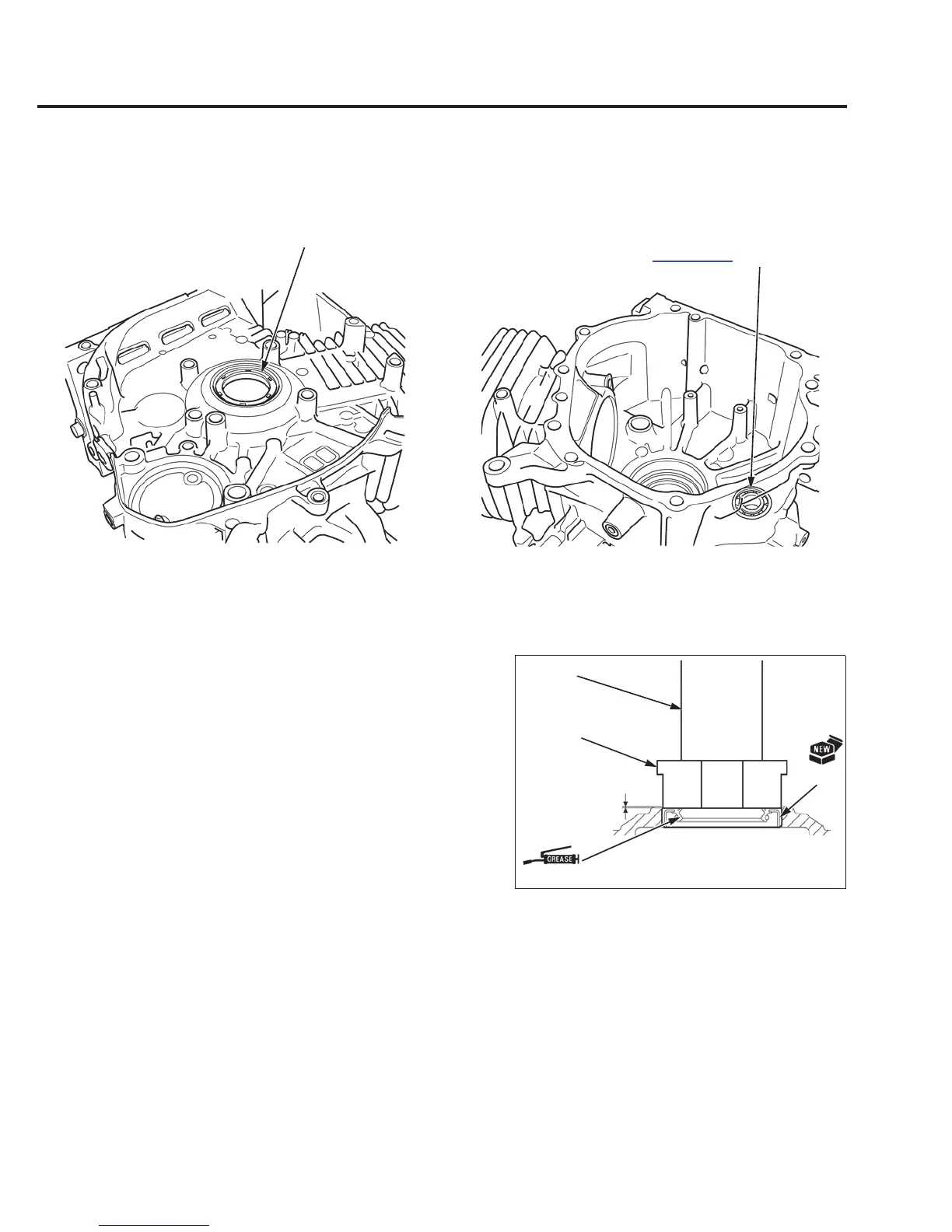

Remove the oil seal from the cylinder barrel.
Apply grease to the lip of a new oil seal (1).
Drive the oil seal in the position as shown using the
special tools.
CRANKSHAFT OIL SEAL (30 x 46 x 8 mm)
BALANCER WEIGHT BEARING (6202)
(If equipped)
(page 13-33)
TOOLS:
Attachment 45 x 50 mm (2) 07946-6920100
Driver 15 x 135 mm (3) 07749-0010000
(2)
2 mm (0.08 in)
(3)
(1)
OIL SEAL RIP
