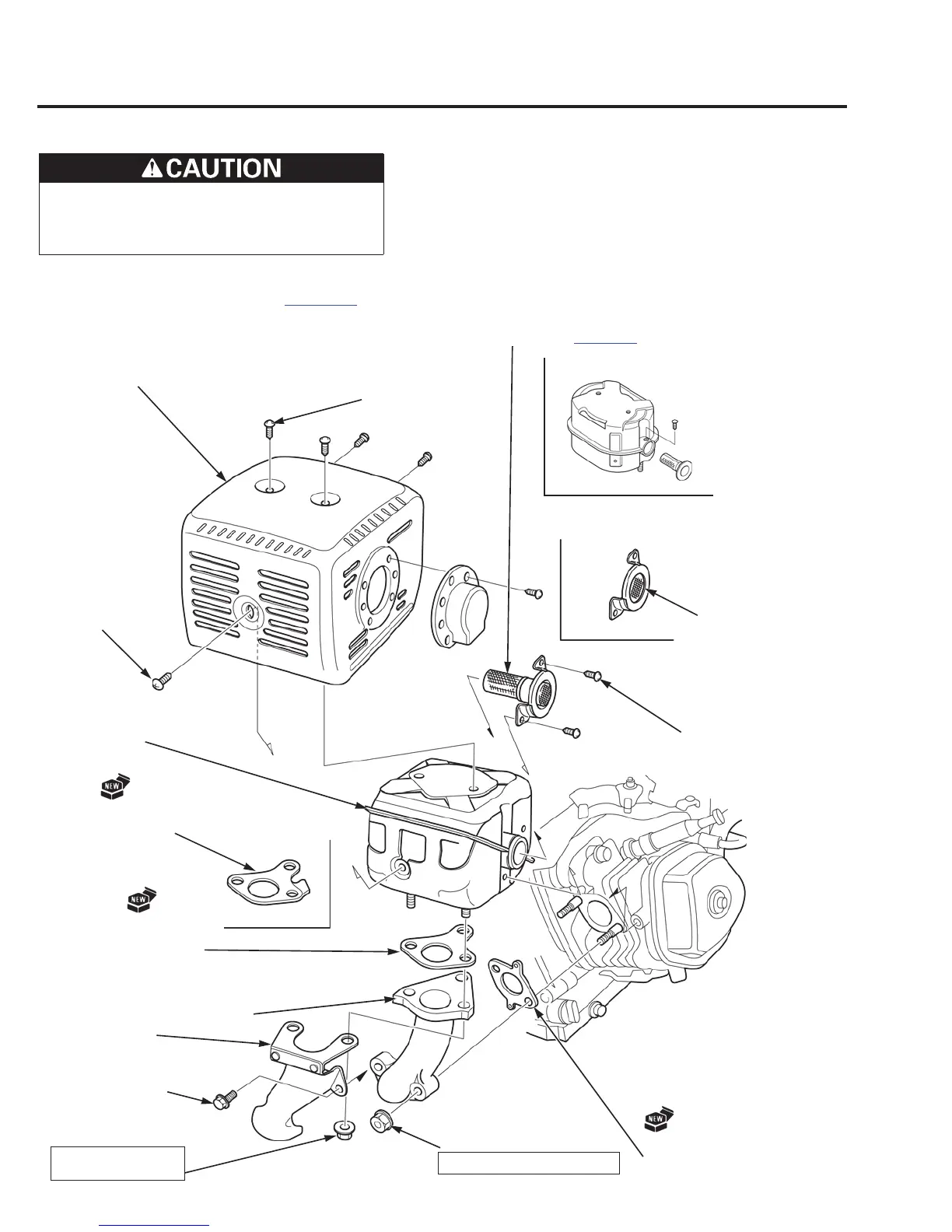

MUFFLER REMOVAL/INSTALLATION
SOLID PROTECTOR TYPE
Remove the muffler cover (if equipped) (page 14-4).
The muffler becomes very hot during operation
and remains hot for a while after stopping the
engine. Be careful not to touch the muffler while
it is hot. Allow it to cool before proceeding.
MUFFLER PROTECTOR
MUFFLER
EXHAUST
PIPE GASKET
TAPPING SCREW
(5 x 8 mm) (4)
NUT (8 mm) (3)
TAPPING SCREW
(5 x 8 mm) (2)
TAPPING SCREW
(6 x 10 mm)
EXHAUST
PIPE
(If equipped)
EXHAUST PIPE
PROTECTOR
SPARK ARRESTER (If equipped) (GX340/GX390 shown)
CLEANING: see
page 3-11
(If equipped)
BAFFLE FLANGE
(If equipped)
GX240/GX270 SPARK ARRESTER
24 N·m (2.4 kgf·m, 17 lbf·ft)
NUT (8 mm) (2)
24 N·m (2.4 kgf·m,
17 lbf·ft)
BOLT (6 x 12 mm)
MUFFLER
GASKET
(If equipped)
MUFFLER
GASKET
(If equipped)
gx240ut2_gx270ut2_gx340ut2_gx390ut2
