GOVERNOR SYSTEM
GOVERNOR SYSTEM

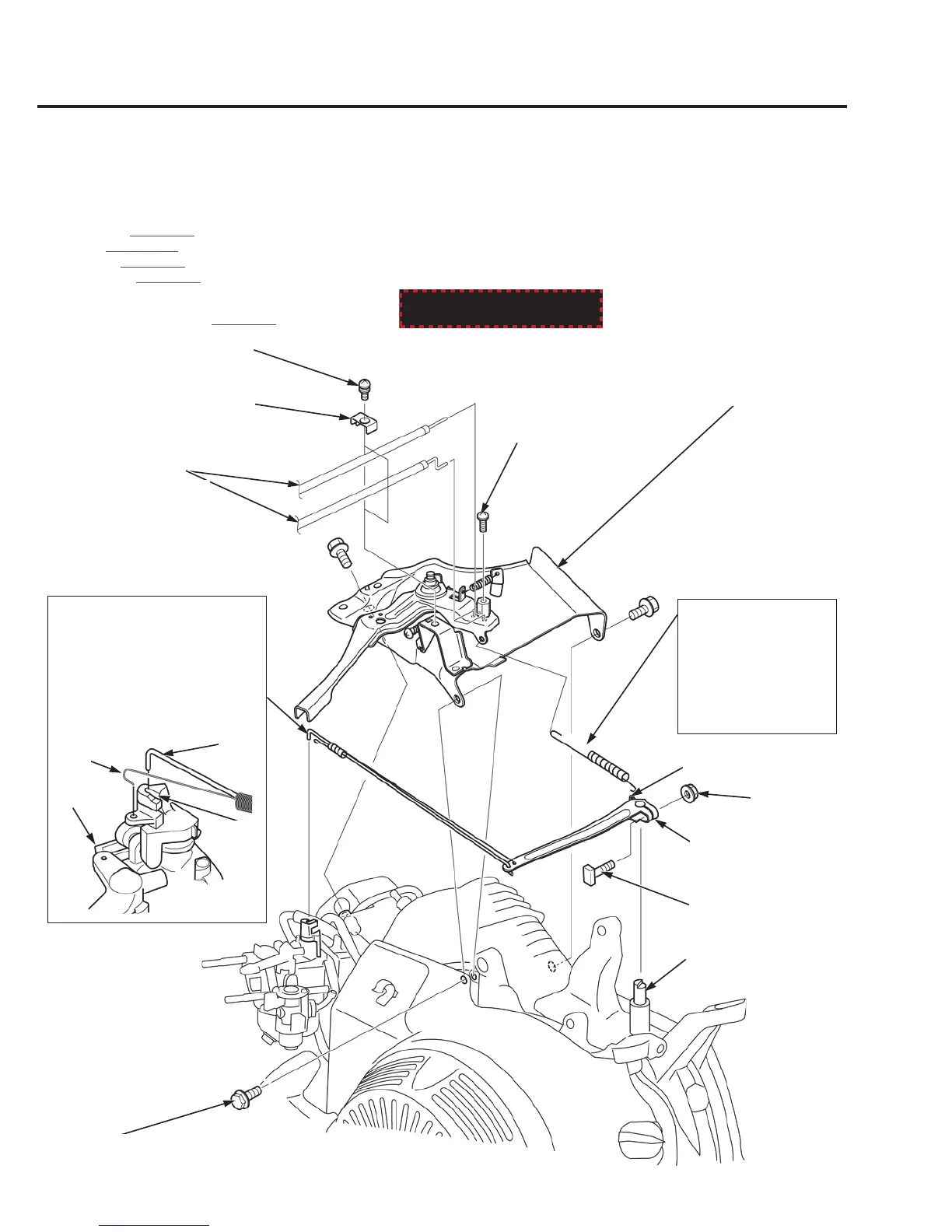

GOVERNOR ARM/CONTROL BASE ASSY.
REMOVAL/INSTALLATION
MANUAL OPERATION TYPE
Remove the following parts.
– Air cleaner
(page 6-5)
– Muffler (page 14-2)
– Fuel tank (page 6-3)
– Tube clamp (page 6-8)
Installation is in the reverse of removal.
Adjust the maximum speed
(page 7-8)
.
INSTALLATION:
Install with the long end
of the spring toward the
control base assy.
Hook the governor spring
to the outer hole of the
governor arm.
CONTROL BASE ASSY.
CABLE HOLDER
REMOTE CABLE
GOVERNOR ARM
GOVERNOR ARM
BOLT
NUT (6 mm)
BOLT (6 x 12 mm) (3)
(If equipped)
(Commercially available)
GOVERNOR SPRING
SCREW (5 x 16 mm)
GOVERNOR ARM
SHAFT
REMOVAL/INSTALLATION:
Pull the carburetor assy. (1) away
from the engine to a point where
the groove (2) of the throttle arm
lines up with the governor rod (3),
and then lift the governor rod out
of the hole of the throttle arm and
unhook the throttle return spring
(4).
GOVERNOR ROD/THROTTLE
RETURN SPRING
(3)
(2)
(1)
(4)
(If equipped)
(If equipped)
SCREW (4 x 6 mm)
(If equipped)
OUTER HOLE
To Next Page
