FUEL SYSTEM

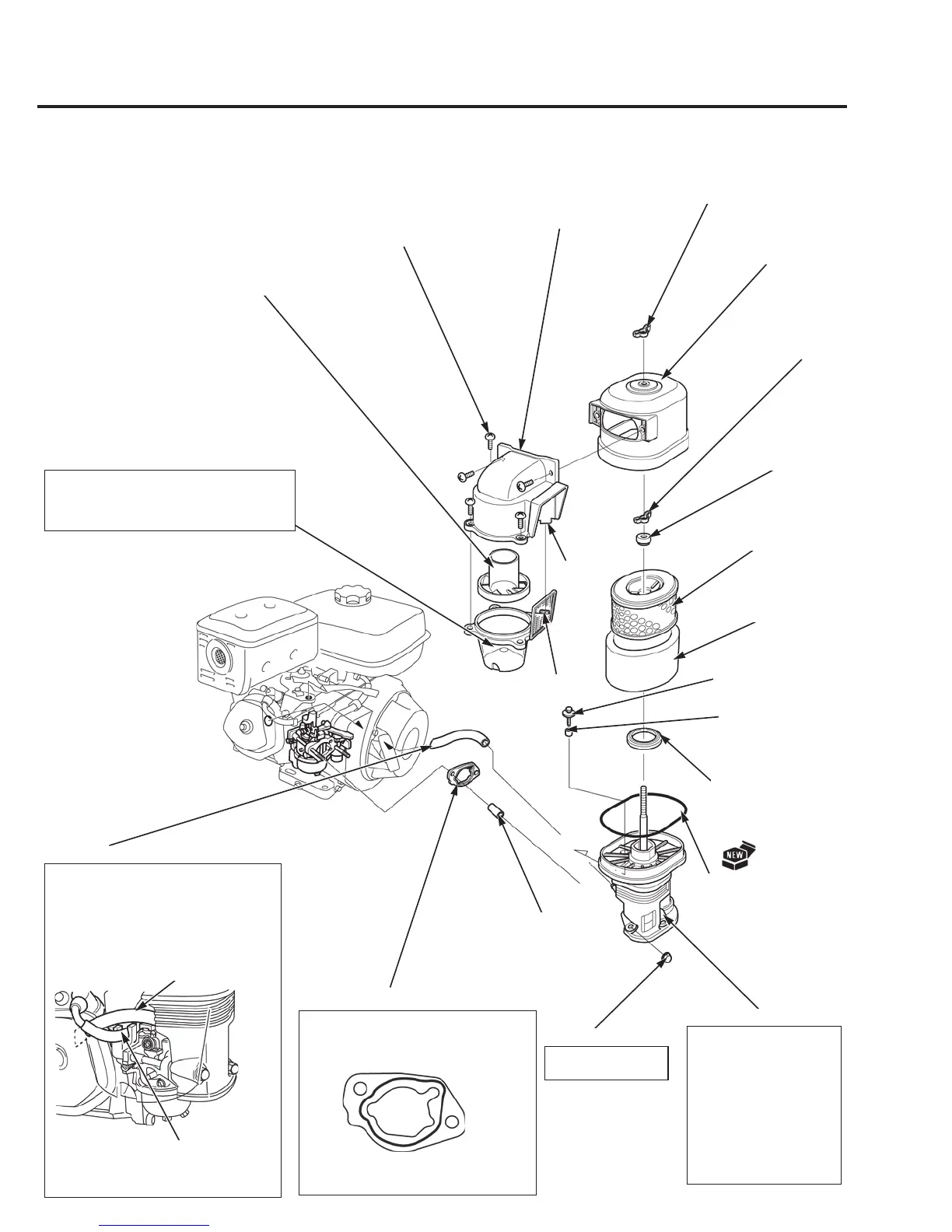

Cyclone type:
WING NUT
AIR CLEANER
COVER
AIR CLEANER
ELEMENT (FOAM)
AIR CLEANER ELBOW
PRE AIR CLEANER CASE
AIR CLEANER
ELEMENT (PAPER)
REMOVAL/
INSTALLATION:
Remove and install the
air cleaner elbow with
the fuel valve lever in
the OFF position and
the choke lever in the
CLOSE position.
Before installation, clean
the inside of the air
cleaner elbow.
GROMMET
SCREW (5 x 16.5 mm) (5)
PRE AIR CLEANER GUIDE
AIR CLEANER
COVER SEAL RING
AIR CLEANER
ELBOW SEAL
PRE AIR CLEANER
CASE COVER
TAB
GROOVE
CARBURETOR SPACER
INSTALLATION:
Before installing, check for damage.
Note the installation direction.
Viewed from air cleaner side
WASHER BOLT
(6 x 22 mm)
COLLAR
NUT (6 mm) (2)
9 N·m
(0.9 kgf·m, 7 lbf·ft)
AIR CLEANER
COLLAR (2)
BREATHER TUBE
INSTALLATION:
After installing the air cleaner elbow,
insert the breather tube to the hole of
the cylinder head cover as shown.
BREATHER TUBE
HIGH TENSION CORD
ASSEMBLY:
Align the pre air cleaner case cover tab
with the groove in the pre air cleaner
case.
WING NUT
