FUEL SYSTEM
Low profile type air cleaner:
Remove the carburetor (page 6-8).
Before disassembly, clean the outside of the carburetor.
Gasoline is highly flammable and explosive.
You can be burned or seriously injured when
handling fuel.
• Keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
To prevent serious eye injury, always wear
safety goggles or other eye protection when us-
ing compressed air.

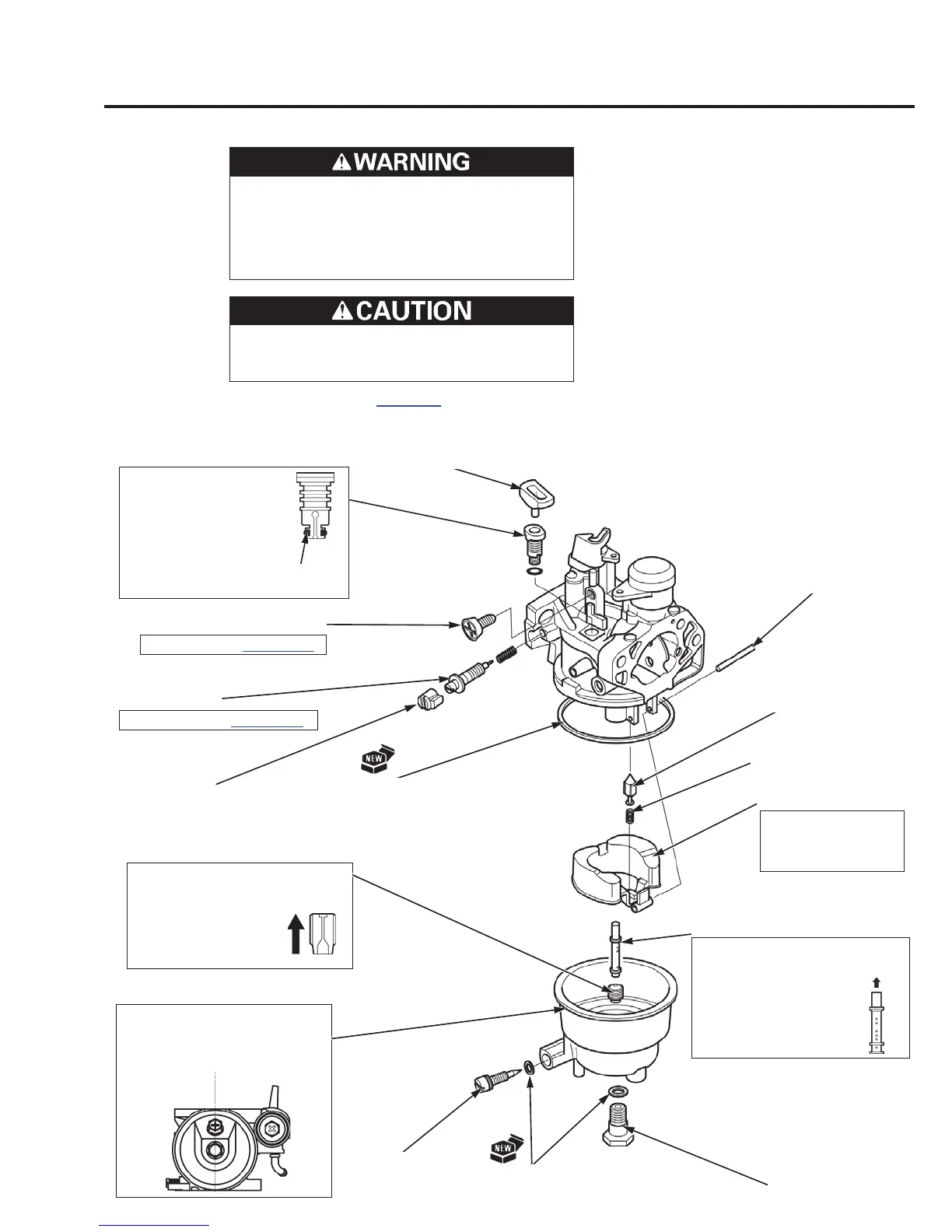

ASSEMBLY:
Before installing,
clean thoroughly with
low-pressure
compressed air.
SET COLLAR
FLOAT
PILOT JET SET
O-RING
MAIN NOZZLE
MAIN JET
DRAIN SCREW
ASSEMBLY:
Before installing, clean
thoroughly with
low-pressure
compressed air.
Lightly lubricate the
O-ring to ensure easy
installation into the
carburetor body.
FLOAT CHAMBER
O-RING
FLOAT PIN
ASSEMBLY:
Install the float chamber to the
carburetor body at an angle as
shown.
SET BOLT
UPPER
SIDE
UPPER
SIDE
O-RING
FLOAT VALVE SPRING
THROTTLE STOP SCREW
ASSEMBLY:
Check for smooth
movement after
installation.
FLOAT VALVE
PILOT SCREW
ADJUSTMENT: (page 3-12)
REPLACEMENT: (page 6-15)
LIMITER CAP
ASSEMBLY:
Before installing, clean
thoroughly with low-
pressure compressed
air.
