~HONDA
~ NUSO· NUSOM

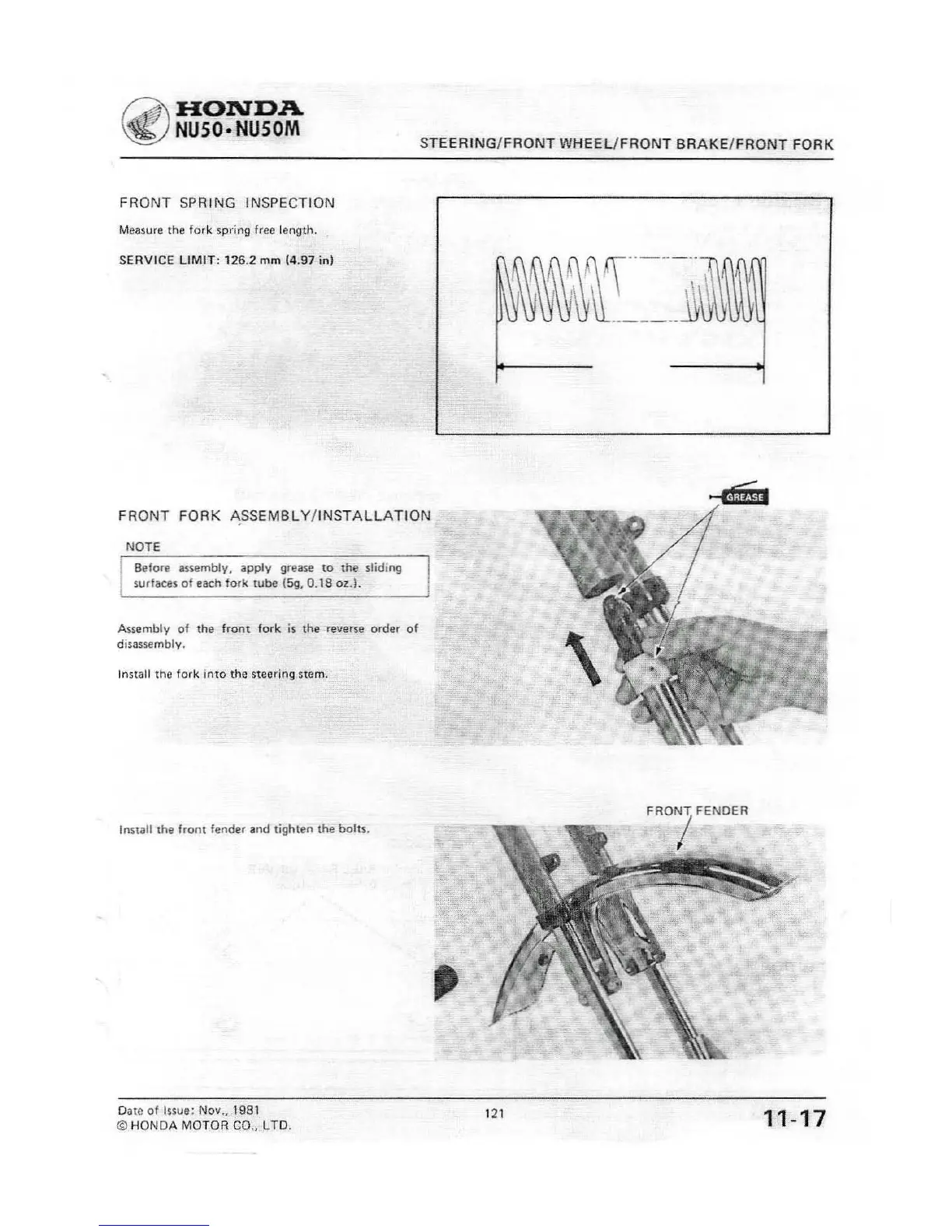

FRONT SPRING INSPECTION
Measure the fork spring free lenglh.
SERVICE LIMIT: 126.2 mm {4.97 in}
STEERING/FRONT WHEEL/FRONT BRAKE/FRONT FORK
FRONT FORK
ASSEMBLY/INSTALLATION
NOTE
Before assembly, apply grease to the sliding
surfaces of each fork lUbe (Sg, 0.18 oz.).
Assembly of the front fork is the reverse order of
disassembly.
Install the fork into the steering stem.
Install the front fender and tighten the bolts.
,
Date of Issue: Nov., 1981
© HONDA MOTOR CO., LTO.
121
11-17

Honda NU50 Specifications

General

Model	NU50
Category	Scooter
Ignition	CDI
Transmission	Automatic
Final Drive	Belt
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-10
Rear Tire	2.50-10
Starting System	Kick start
Rear Suspension	Unit swing
Fuel Capacity	4.5 L
