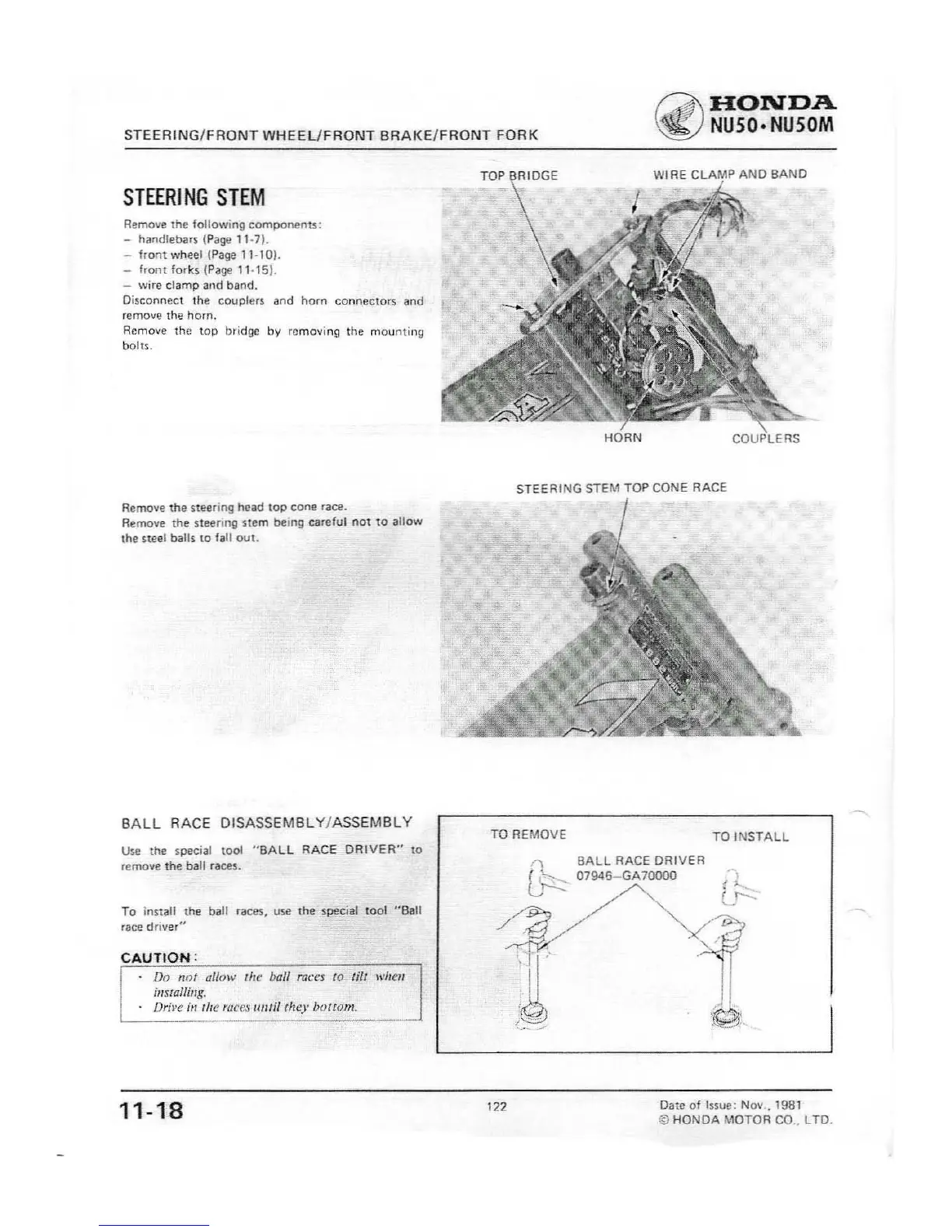

STEERING/FRONT
WHEEL/FRONT
BRAKE/FRONT
FORK
TOP BRIDGE
Cif\HONDA
~
NU50·NU50M
WI
RE
CLAMP
AND
BAND
STEERING
STEM
Remove the
following
components:
- handlebars
(Page
11-7).
-
front
wheel (Page 11-101.
-
front
forks
(Page
11-15).
- wire
clamp
and
bend.
Disconnect the couplers and
horn
connectors and
remove the
horn.
Remove
the
top
bridge by removing
the
mounting
bolts.
HORN
COUPLERS
STEERING STEM TOP CONE RACE
Remove
the
steering
head
top
cone
race.
Remove the steering
stem
being careful
not
to
allow
the
steel balls
to
fall
OUt.
BALL
RACE
DISASSEMBLY/ASSEMBLY
TO REMOVE
TO
INSTALL
Use
the
special
tool
"BALL
RACE
DRIVER"
to
remove the ball races.
~
BALL RACE DRIVER
~
07945-GA70000
;
....
/'y'-
To
install
the
ball races, use
the
special
1001
"Ball
/4
/
,-
race
driver"
CAUTION:
1
<'~
Do
no!
allow
file
bull
rac('s
(0
Ii/I
h'hclI
instulling.
~b
I)r/l'e ill the
fflt:t:S
waif
(hey
boltom.
11-18
