~HONDA
~
NUSO·NUSOM

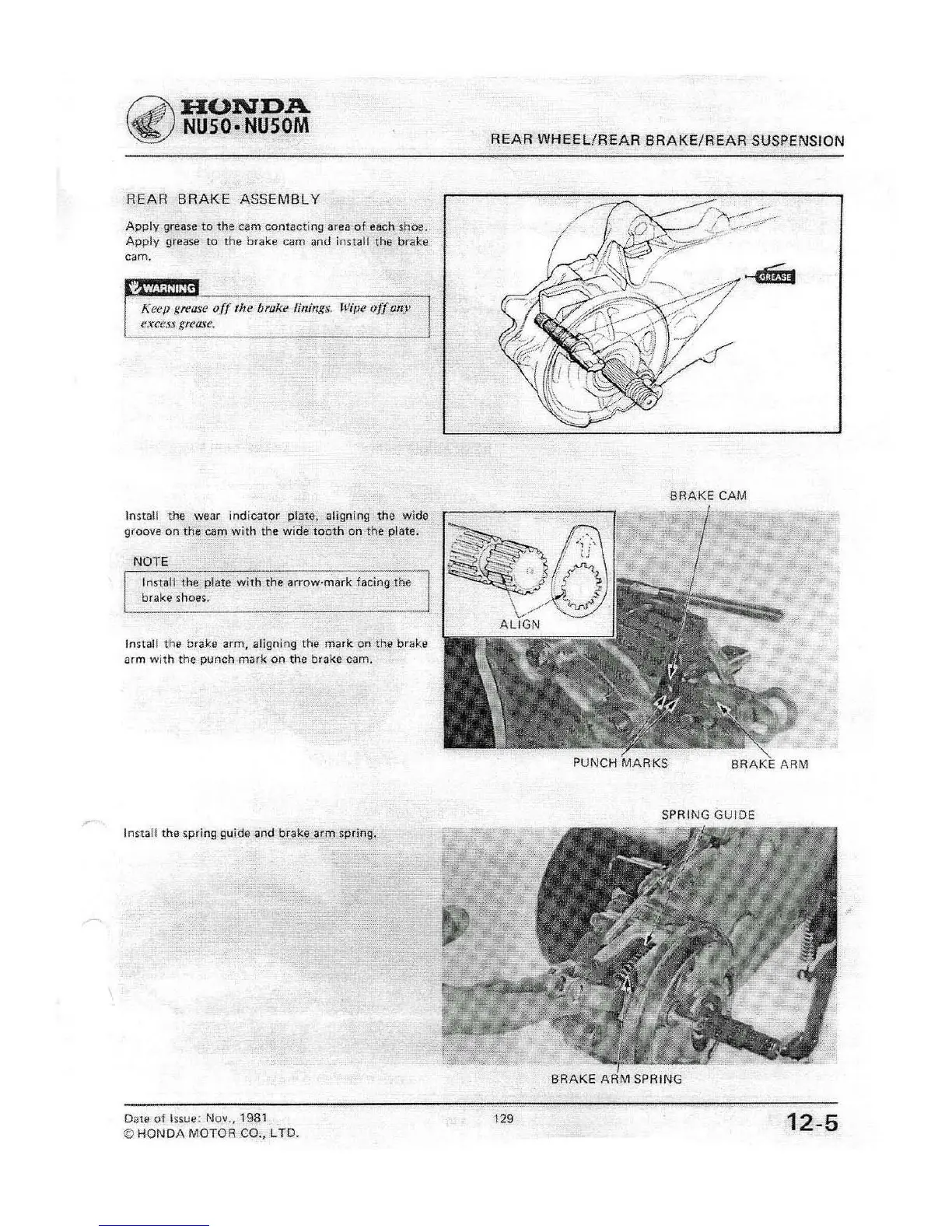

REAR BRAKE ASSEMBLY
Apply grease to the cam contacting area of each shoo.
Apply
grease
to the brake cam and install the brake
cam.
Keep
grt'ase
oi!
'he
broke linings. Wipe
off
any
excess
grease,
Install the wear
indicator
plate.
aligning
the
wide
groove on the cam with the wide
tooth
on
the plate.
NOTE
Install
the
plate
with
the
arrow·mark
facing
the
brake shoes.
Install the brake arm, aligning the
mark
on the brake
arm
with
the punch mark on the brake cam.
REAR
WHEEL/REAR
BRAKE/REAR
SUSPENSION
BRAKE
CAM
PUNCH
MARKS
BRAKE
ARM
Install the spring guide
and
brake
arm
spring.
Dilli'
of
Issue: Nov., 1981
©
HONDA
MOTOR
CO
.•
LTD.
129
SPRING GUIDE
W'"
....
",..._"""'
...
BRAKE
ARM
SPRING
12-5
