Honda NU50 User Manual

-
LUBRICATION

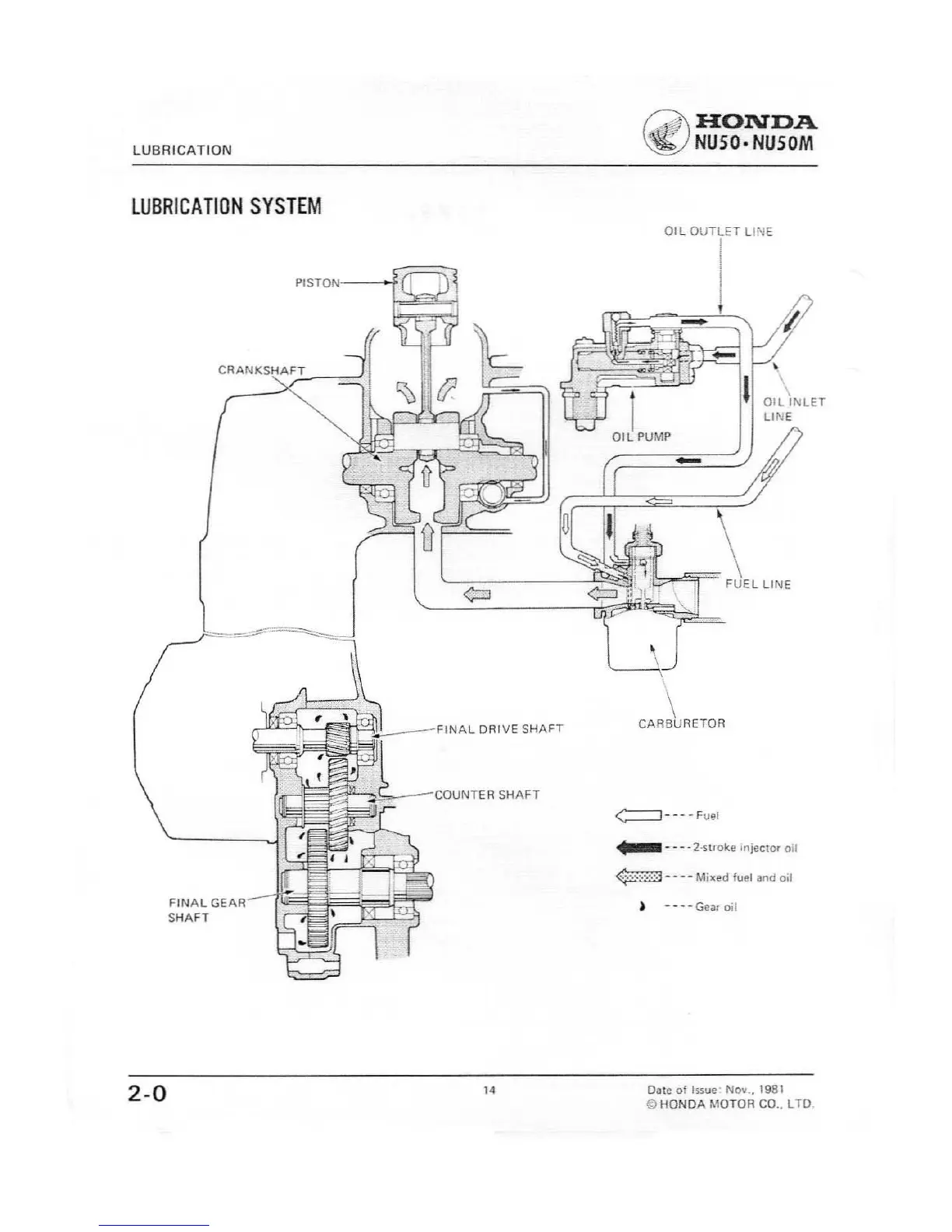

LUBRICATION SYSTEM
PISTONI-~~(f=~
CRANKSH,A~:F;T ~
FINAL GEAR
SHAFT
2-0
"
Cj\HONDA
~ NUSO· NUSOM
OIL OUTLET LINE
~ii;-~'~, ,~
OIL INLET
LINE
CARBURETOR
<==::J ----Fuel
..- - + -. 2·slloke Injector oil
¢:~ill-+ --Mixed fuel and 011
) +---Gealo.l
Date of Issue: NOli., 1981
© HONDA MOTOR CO., LTO

Honda NU50 Specifications

General

Model	NU50
Category	Scooter
Ignition	CDI
Transmission	Automatic
Final Drive	Belt
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-10
Rear Tire	2.50-10
Starting System	Kick start
Rear Suspension	Unit swing
Fuel Capacity	4.5 L
