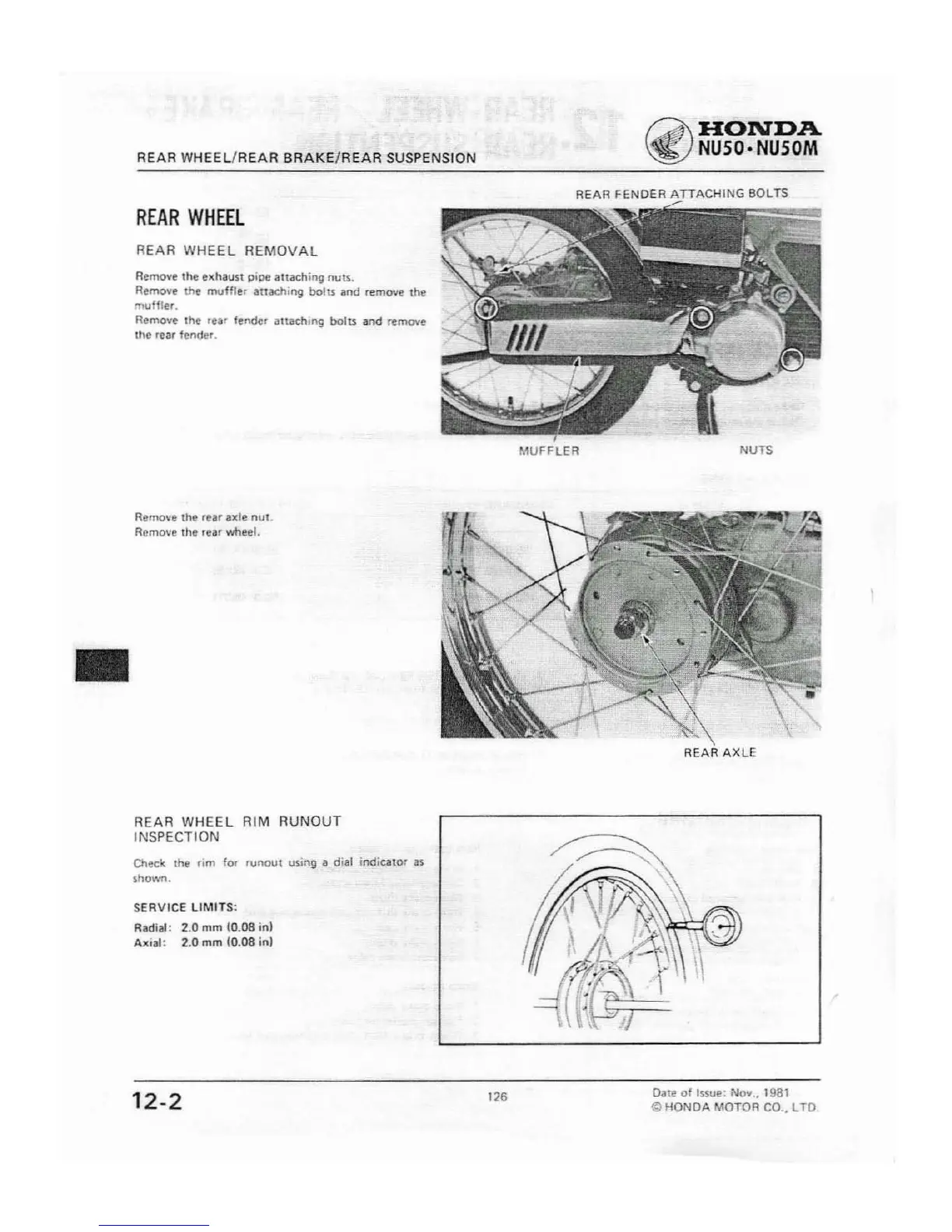

REAR WHEEL/REAR BRAKE/REAR SUSPENSION
REAR WHEEL
REAR WHEEL REMOVAL
Remove the exhaust pipe altaching flut~.
Remove the muHler lIt1aching bolu and remove the
muffler.
Remove the 'ear fender illllachmg bolts and remove
the rear fender.
r:::fi!\HONDA
~ NU50· NU50M
REAR FENDER ATTACHING BOLTS
-
MUFFLER
NUTS
•
Remove the rear ,xle nul.
Remove the rear wheel.
REAR AXLE
REAR WHEEL RIM RUNOUT
INSPECTION
Check the nm fOI nmout usmg a dial indicator as
shown.
SERVICE LIMITS:
Radiil: 2.0 mm (0.08 in)
AliI,al: 2.0 mm (0.08 inl
12-2
126
Dale 01 Issue: Nov., 1981
Q HONDA MOTOR CD., l TO
