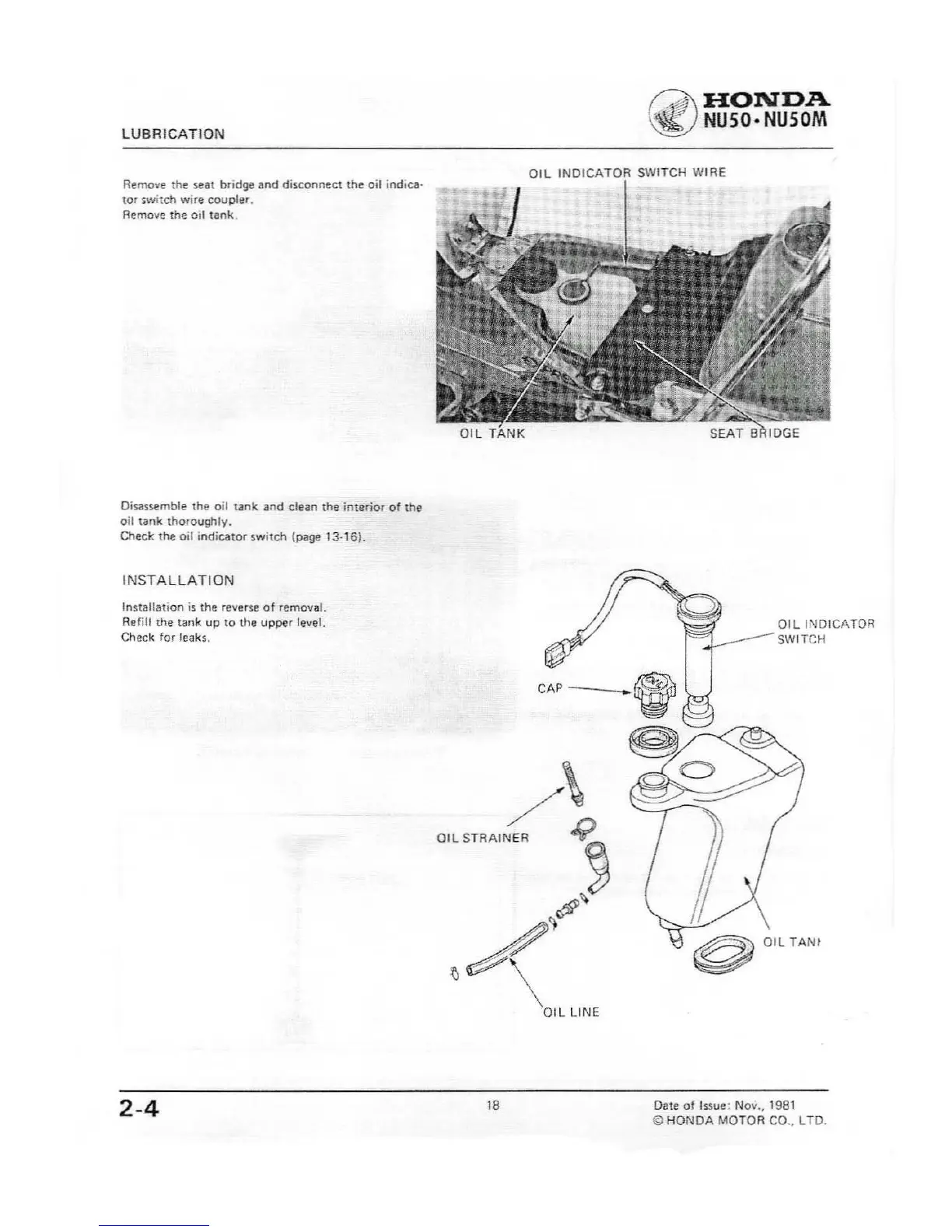

LUBRICATION
Remove
the
seat
bridge
and
disconnect
the
oil
indica·
tol
switch
wire
coupler.
Remove the
oil
tank.
Disassemble
the
oil
tank
and
clean
the
interior
of
the
oil
tank
thoroughly.
Check
the
oil
indicator
switch
(page 13-161.
~HONDA
~
NU50·
NU50M
Oil
INDICATOR
SWITCH WIRE
INSTALLATION
Installation
is
the reverse
of
removal.
Refill the
tank
up
to
the upper level.
Check
for
leaks.
2-4
/\
OIL STRAINER
""~
~"
,~'
OIL
LINE
18
QlllNDICATOR
SWITCH
@OILTAN>
Dale
of
Issue: Nov.,
19B1
