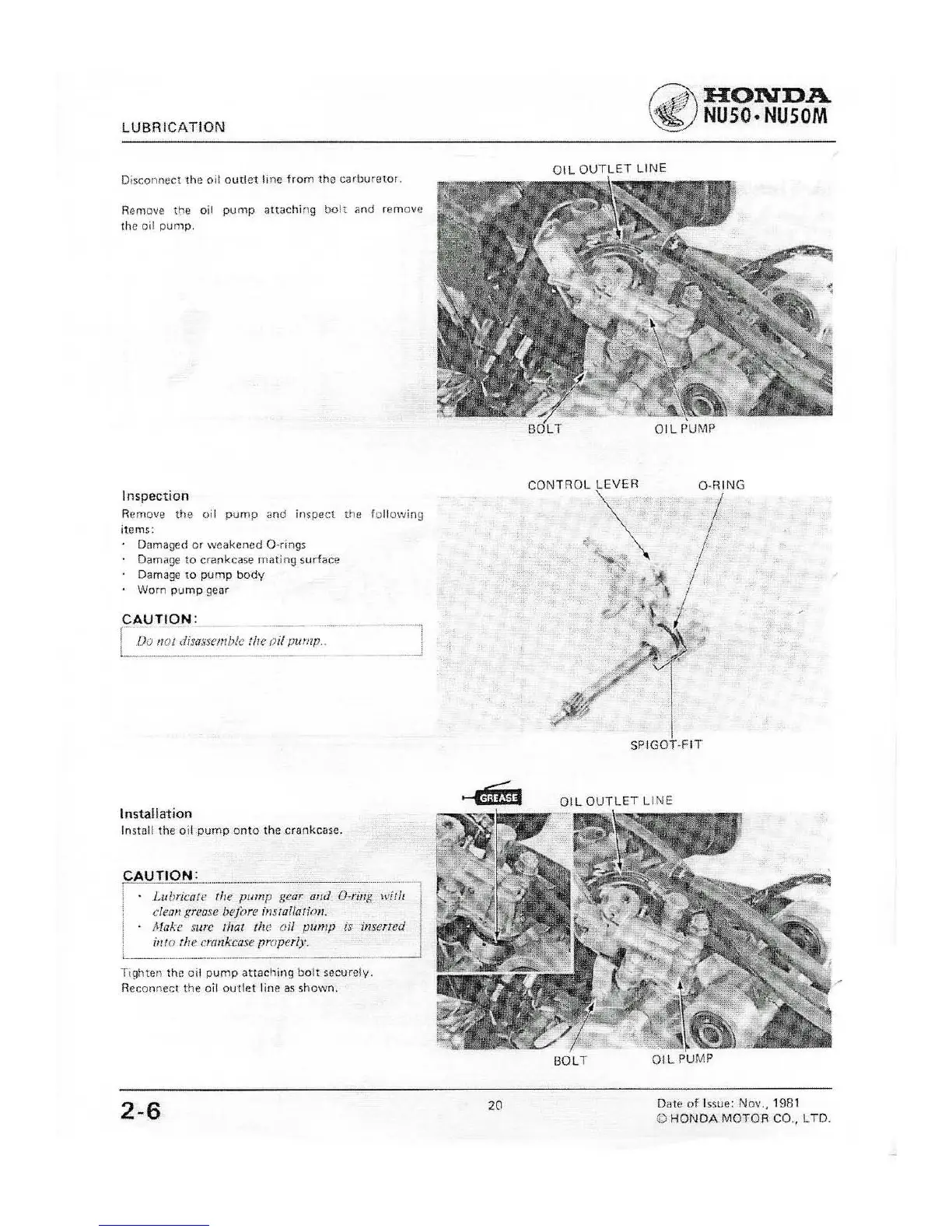

LUBRICATION
Disconnect Ihe oil outlet line from the carburelOf.
Remove the oil pump attaching bolt and remove
Ihe oil pump.
Inspection
Renl0vc the od pump and inspect the following
items:
Damaged or weakened a-rings
Damage to crankcase mating surface
Damage to pump body
Worn pump gear
CAUTION:
[
om;;o not disassemble the ~-;;;-;-;;'IIP"
-~ .•.. _-_. __ . __ ._---~----~
Installation
Install the oil pump onto the crankcase.
CAUTION'
I~ubrical(' rhe pump l:;~~--UIIJ O-~;I-I~-;~':l.tJl
clean ¥reosc before installatioll,
Make Sllre Ihar Ilw oil pump is inscrled
'---~~~ the crankcase propcr~·~. _~_~___ ~
TIghten Ihc oil pump attaching bolt securely.
Reconnect the oil outlet line as shown.
