~HONDA.
\~) NU50· NU50M

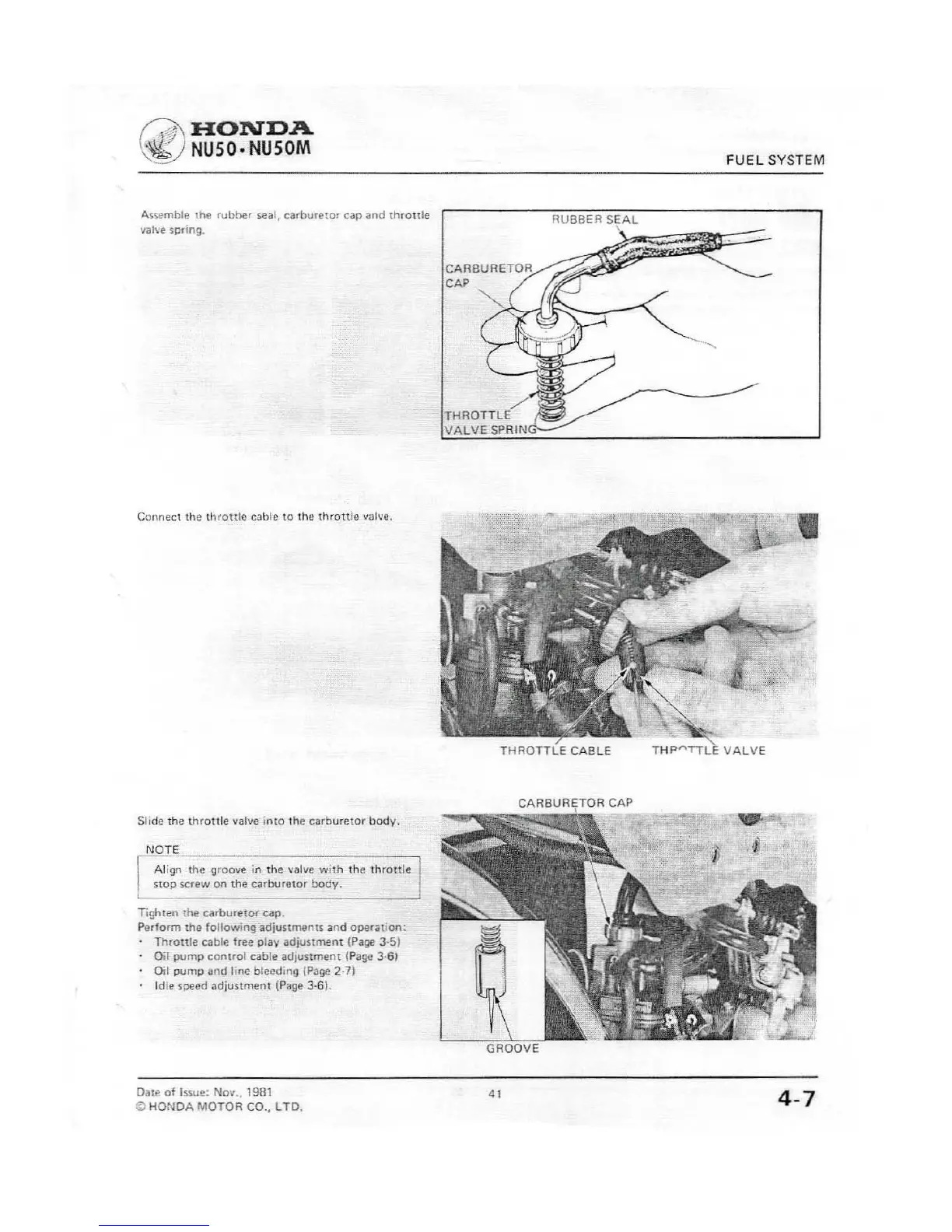

Assemble the rubber ~eal, carburelOr cap and thrOllle
lIill\'(' spring.
RUBBER SEAL
,
CARBURETOR
CAP
/'
THROTTLE
VALVE SPRIN
FUEL SYSTEM
Connect the throttle cable \0 the throttle ... al\'~.
Slide the throttle valve imo lhe carburetor body,
NOTE ~ ----,
Align the groove in the valve with the throule
SlOp screw on the carburetor body.
Tighten the carburetor cap.
Perform the following adjustments and operation:
Throttle cable free play adjustment (Page 3·51
Oil pump control cable adjustment lPage 3·61
011 pump and line bleeding {Page 2·71
Idle soeed :Jdiustment (Page 3·61.
Date of Issue: No
..... 1981
CD HONDA MOTOA CO., lTD.
THROTTLE CABLE
CARBUA~TOR CAP
GROOVE
THp .... TTl VALVE
4-7

Honda NU50 Specifications

General

Model	NU50
Category	Scooter
Ignition	CDI
Transmission	Automatic
Final Drive	Belt
Front Brake	Drum
Rear Brake	Drum
Front Tire	2.50-10
Rear Tire	2.50-10
Starting System	Kick start
Rear Suspension	Unit swing
Fuel Capacity	4.5 L
