~HONDA
~
NU50·
NU50M

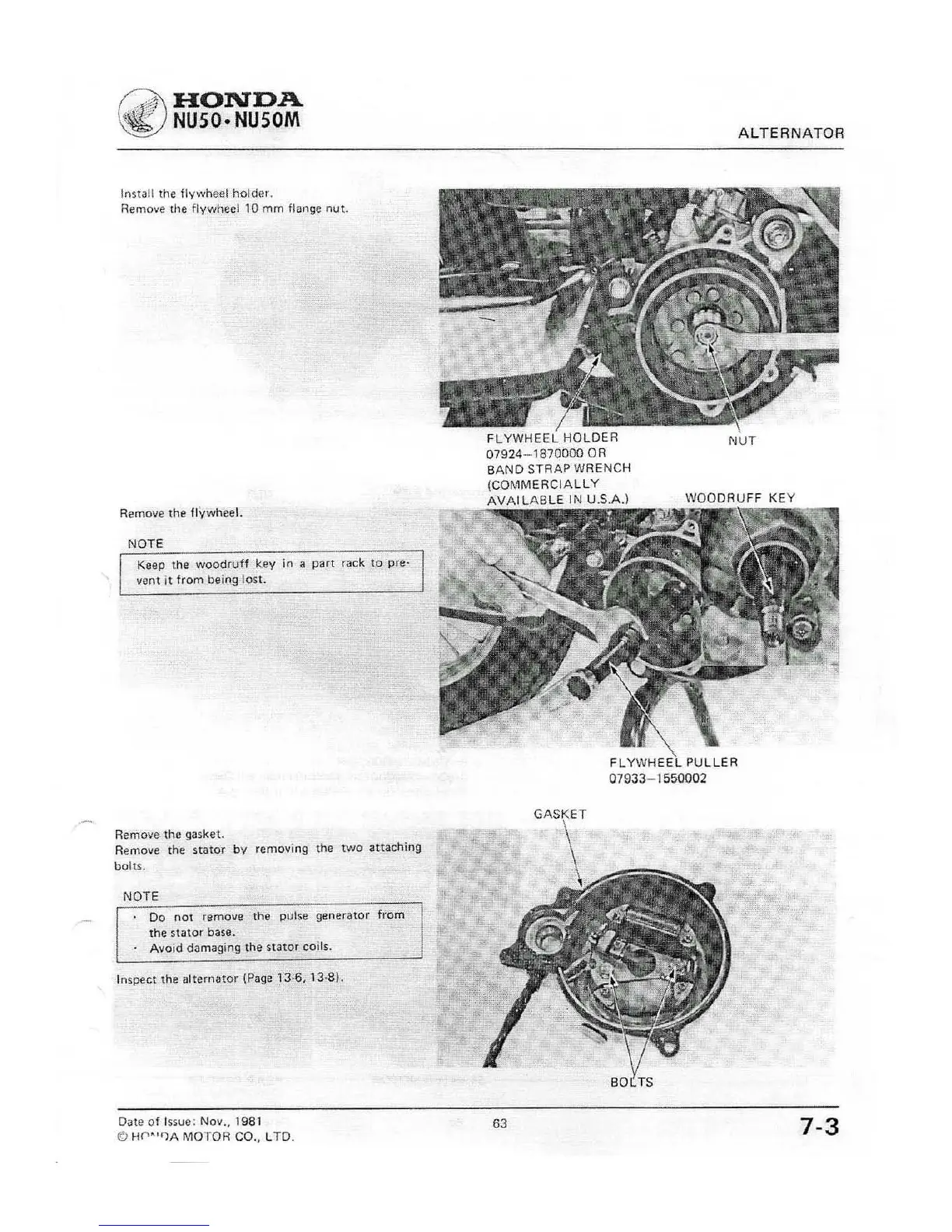

Install the flywheel holder.
Remove the flywheel 10
mm
flange
nut.
ALTERNATOR
Remove
the
flywheel.
NOTE
Keep the
woodruff
key
in
a
part
rack
to
pre-
vern
it
from
being lost.
FLYWHEEL HOLDER
07924-1870000
OR
BAND
STRAP WRENCH
(COMMERCIALLY
AVAILABLE
IN U.S.A,)
NUT
WOODRUFF
KEY
Remove the gasket.
Remove the
stator
by
removing
the
twO
attaching
bolts.
NOTE
00
not
remove
the pulse generator
from
the stator base.
Avoid
damaging the stator coils.
Inspect the alternator
(Page
13·6. 13·8).
BO
TS
Date
of
Issue: Nov.,
19B1
©
H0"'I1A
MOTOR
CO.,
LTD.
63
7-3
