f4\HONDA
~ NU50· NU50M

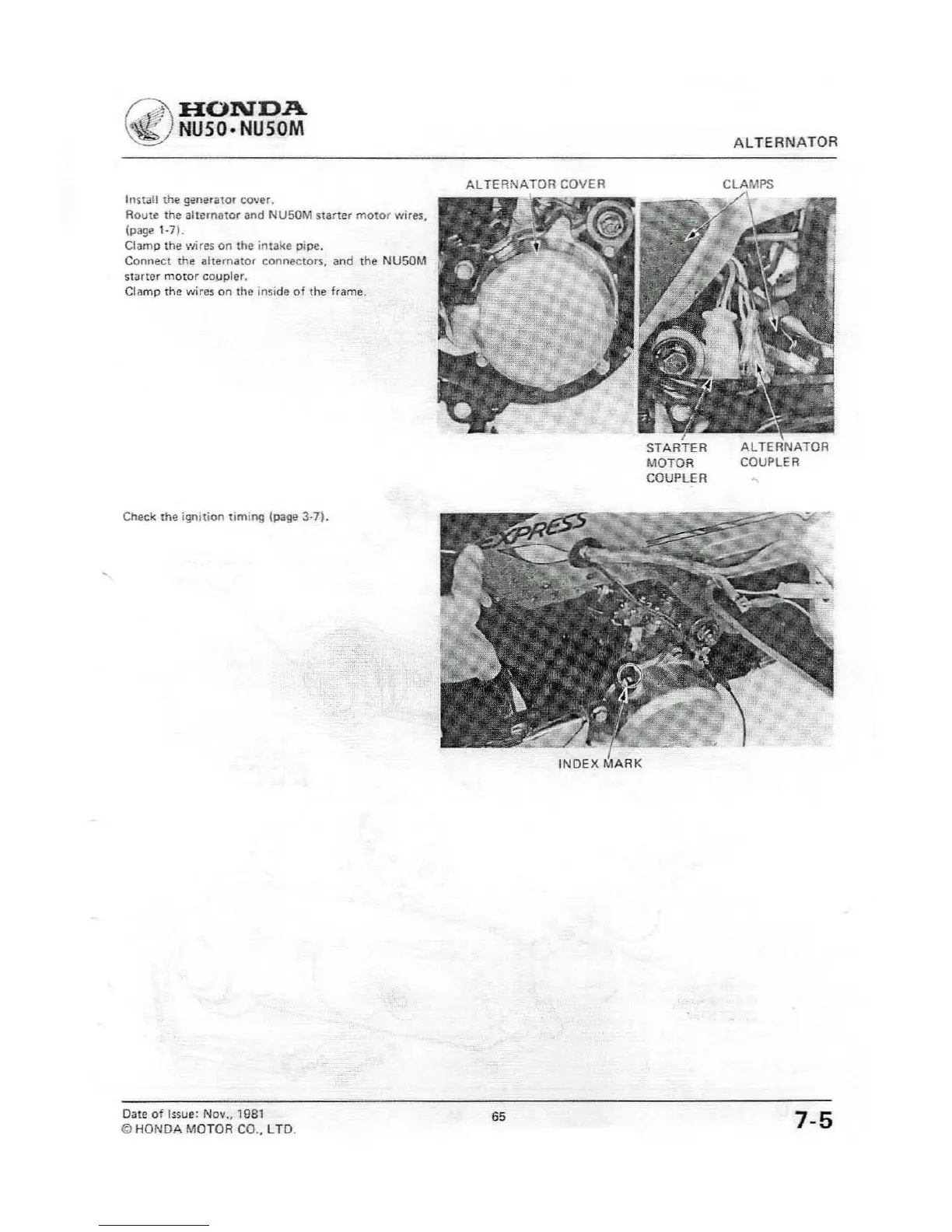

Install the generator cover.
Route the alternator and NU50M starter mOtor wires,
(page 1·7).
Clamp the wires on the intake pipe.
Connect the alternator connectors, and the NU50M
starter motor coupler.
Clamp the wires on the inside of the frame.
AL TERNATOR COVER
,
STARTER
MOTOR
COUPLER
ALTERNATOR
CLAMPS
ALTERNATOR
COUPLER
Check the ignition timing (page 3·7).
INDEX MARK
Date of Issue: Nov", 1981
@HONDA MOTOR CO., LTD.
65
7-5
