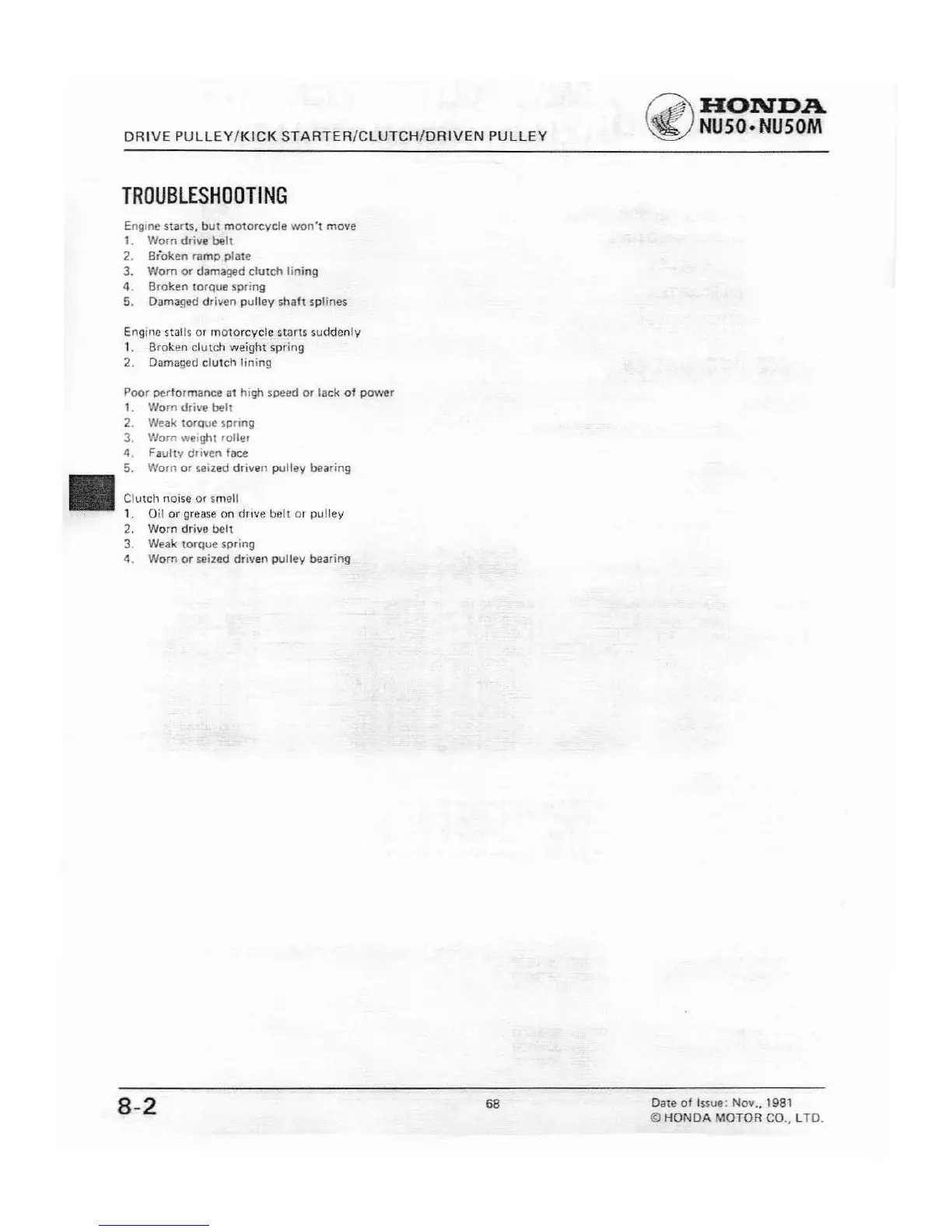

DRIVE PULLEY/KICK STARTER/CLUTCH/DRIVEN PULLEY
TROUBLESHOOTING
Engine starts, but motorcycle won't move
1. Worn dri ... e belt
2. Bioken ramp plate
3. Worn or damaged clutch lining
4. Broken Torque sprmg
5. Damaged driven pulley shaft splines
Engine stJlls Of motorcycle starts suddenly
1. Brak!!n clutch weight spring
2. Damaged clutch lining
Poor perlOimance at high speed or lack of power
1. Worn drive belt
2. Weak torque spnng
3. Worn welghl roller
4. Faulty driven face
5. Worn or seized driven pulley bearing
Clutch noise or smell
1. Oil or gT\laSe on drive bell or pulley
2. Worn drive belt
3. Weak torque spring
4. Worn or seized driven pulley bearing
~HONDA
~NUSO.NUSOM
8-2
68
Date of Issue: No ..... 1981
