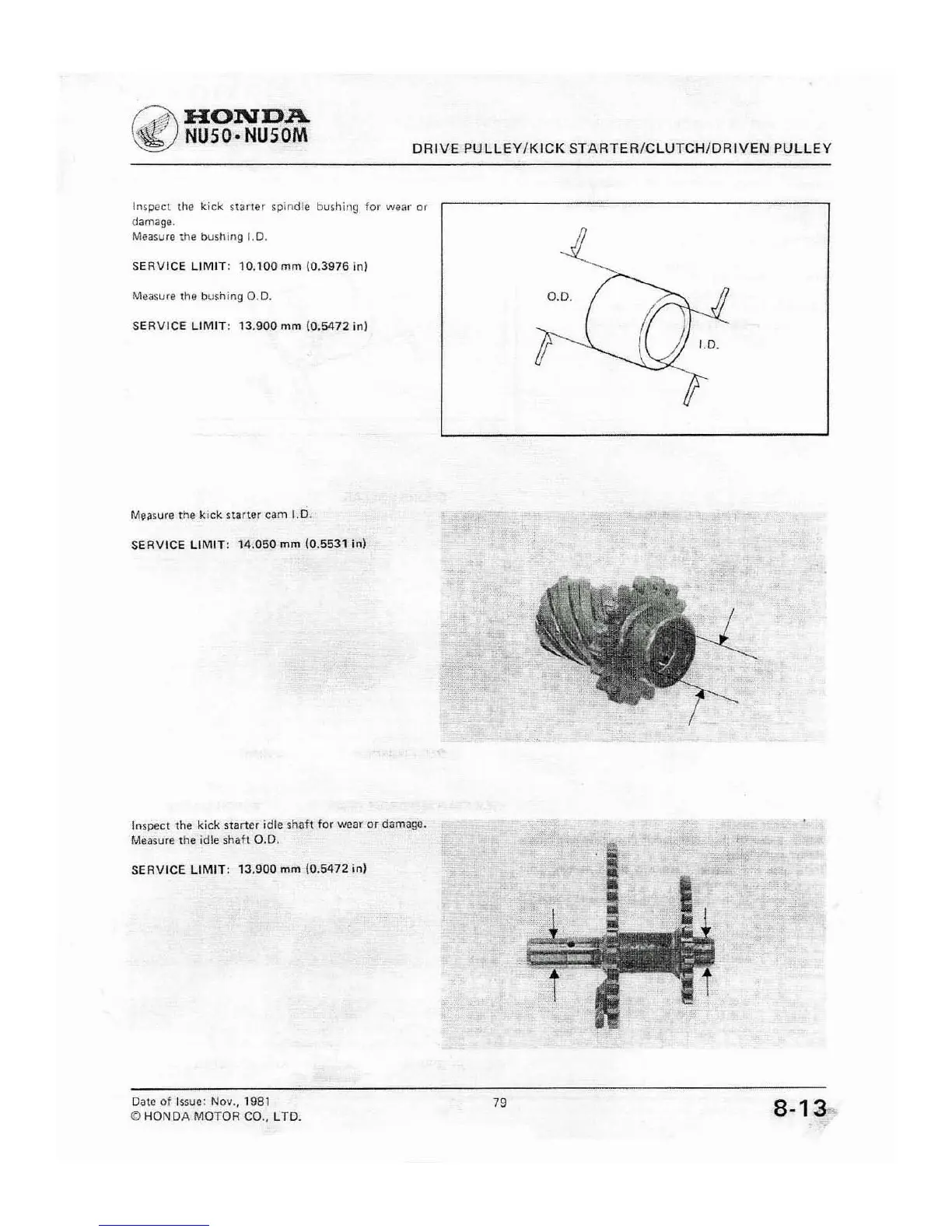

~HONDA
~
NU50. NU50M
DRIVE
PULLEY/KICK
STARTER/CLUTCH/DRIVEN
PULLEY
Inspect the kick HarTer spindle
bu~hing
for wear or
damage.
Measure
,he
bushing LD.
SERVICE
LIMIT:
10.100mm
(0.3976 in)
Measure
the
bushing
0.0
SERVICE
LIMIT:
13.900
mm
(0.5472 in)
Meilsure
the
kick Slarter
cam
1.0.
SERVICE
LIMIT:
14.050
mm
(0.5531
in)
0.0.
Inspect the kick
starter
idle
shaft
for wear
or
damage.
Measure
the idle shah
0.0.
SERVICE
LIMIT:
13.900
mm
(0.5472
in)
Dilte of
Issue:
No
.....
,
1981
© HONDA MOTOR CO.,
lTD.
79
8-13
