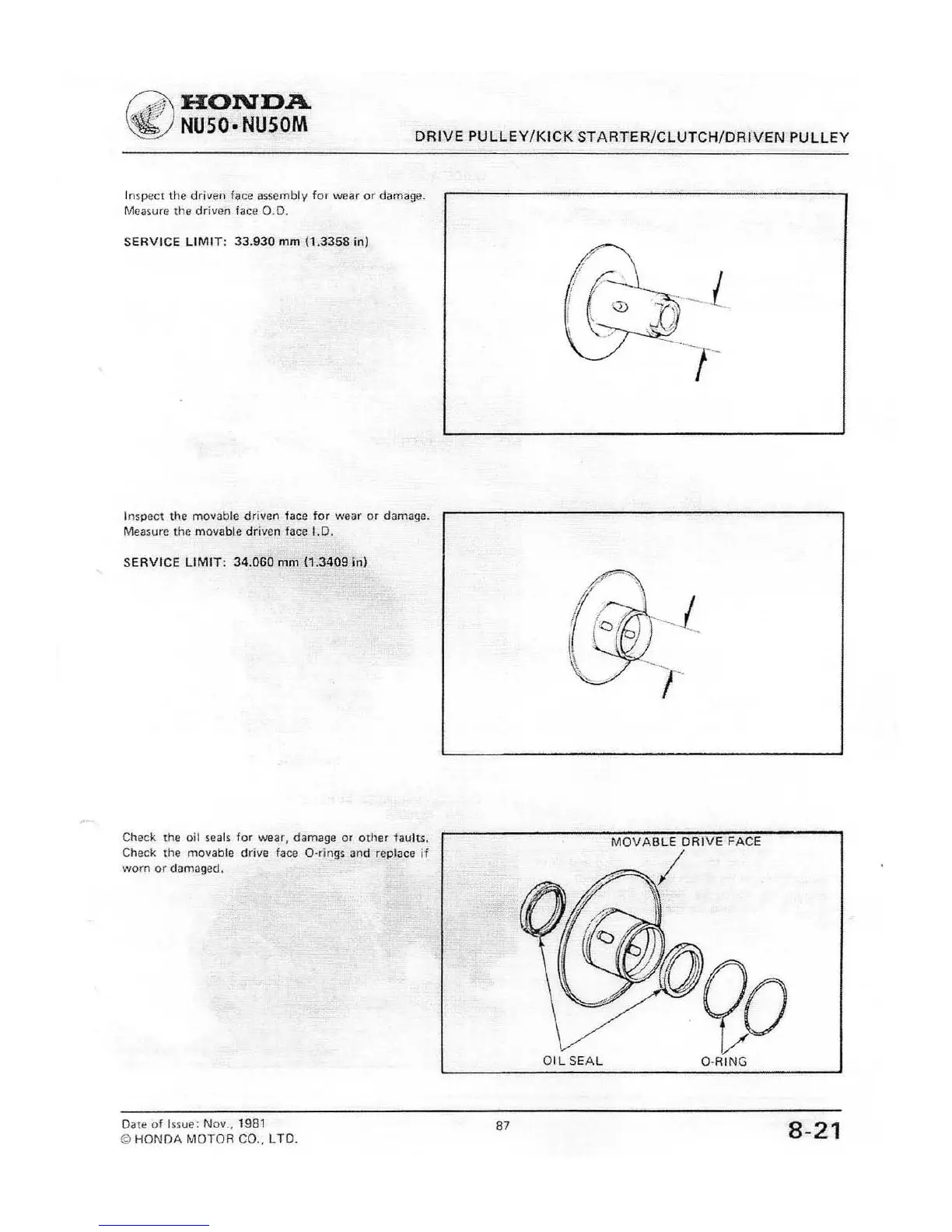

~HONDA
~NU50.NU50M
DRIVE
PULLEY/KICK
STARTER/CLUTCH/DRIVEN
PULLEY
Inspect the
driven
face assembly
for
wear
or
damafj{!.
Measure
the
driven face
0.0.
SERVICE
LIMIT:
33.930
mm
U,3358
in)
Inspect the movable driven face for
wear
or
damage.
Measure the movable driven face LD.
SERVICE
LIMIT:
34.060
mm
(1.3409 in)
Check
the
oil seals for wear,
damage
or
other
faults.
Check
the
movable drive face Q.rings
t1nd
replace
if
worn
or
damaged.
Dale
of
Issue: Nov_. 1981
©
HONDA
MOTOR
CO"
lTD.
87
OIL SEAL
MOVABLE
DRIVE
FACE
~/
/
8-21
