Tank Cover Assembly Removal
Refer to Safety Precautions on page 125.
The tank cover assembly must be removed for the engine oil, engine
oil filter and spark plug maintenance.
Removal
1.
Remove the seat (page 136).
2.
Carefully remove the right studs (1) and left studs from the
grommets.
3.
Remove the tank cover assembly (2) by releasing the right tabs (3)
and left tabs from the slits.
Installation
Install the tank cover assembly in the reverse order of removal.

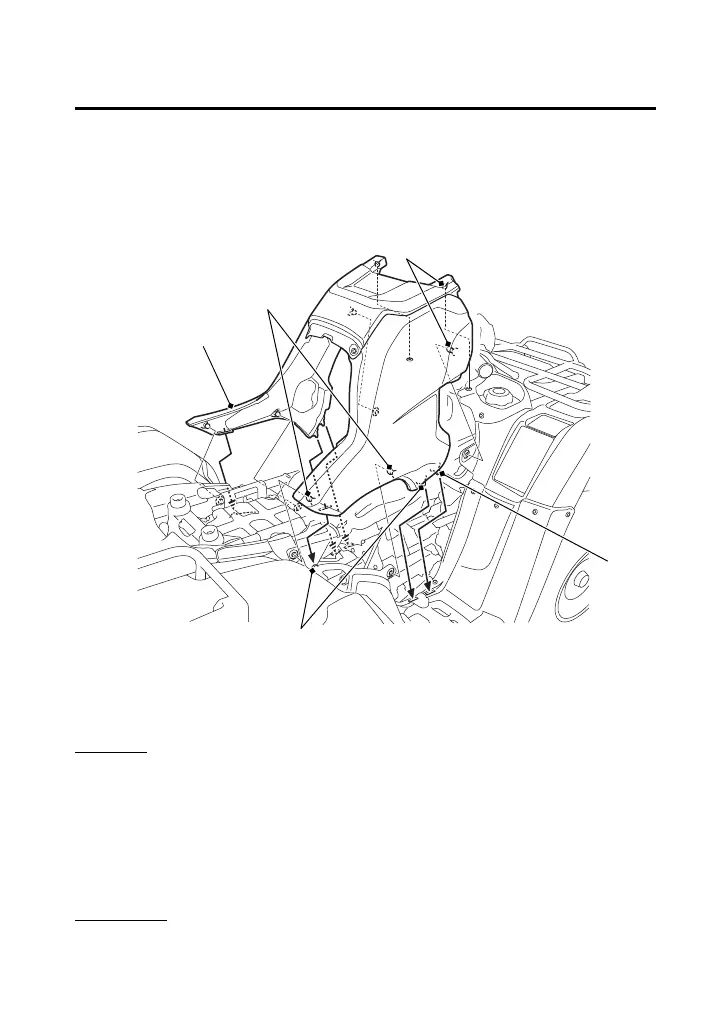

(1)
(1) studs
(2)
(1)
(3)
(3)
(2) tank cover assembly
(3) tabs
