Servicing Your Honda
174
Reverse Inhibitor System
Refer to Safety Precautions on page 125.
1.
Turn over the dust cover (1).
2.
Check the reverse assist lever (2) freeplay, measured at the
reverse assist lever end near the cable:
2 – 4 mm (0.1 – 0.2 in)
3.
To adjust, slide the rubber sleeve (3), loosen the lock nut (4) and
turn the adjusting nut (5) to obtain the correct freeplay.
After adjustment, tighten the lock nut securely.
4.
Return the dust cover and rubber sleeve.
Other Checks
Check the reverse assist lever and cable for loose connections or
other damage. If the cable is worn or kinked, have it replaced by
your dealer.

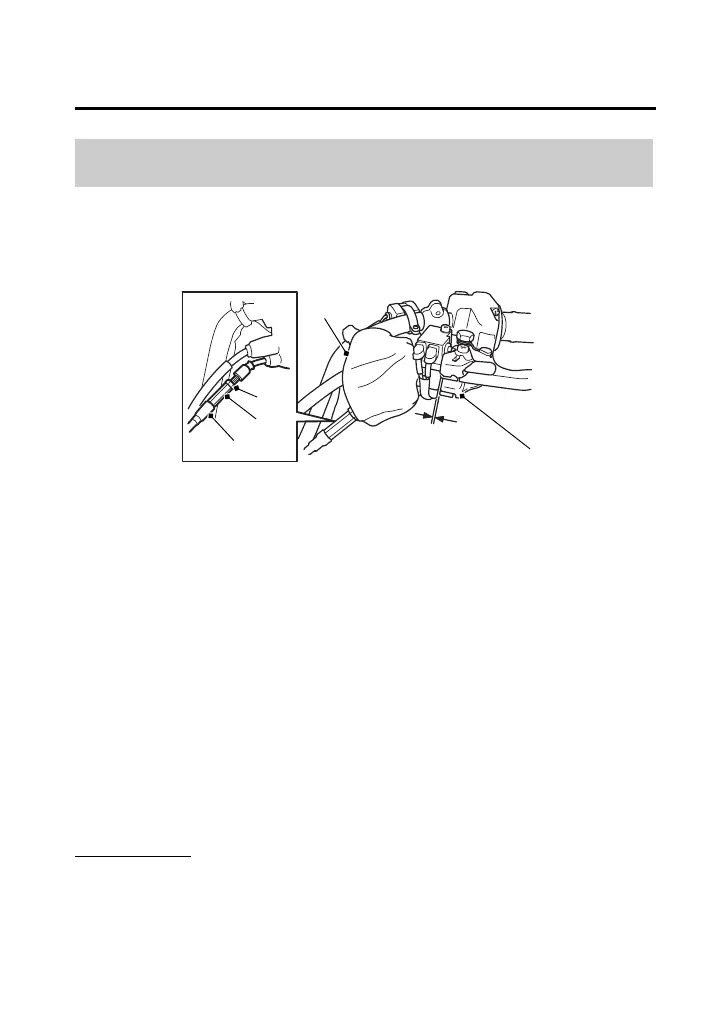

Reverse Inhibitor System Adjustment
LEFT HANDLEBAR
(2)
2 – 4 mm
(0.1 – 0.2 in)
(1)
(5)
(4)
(1) dust cover
(2) reverse assist lever
(4) lock nut
(5) adjusting nut
(3) rubber sleeve
(3)
19 TRX500FA6 (ED)-32HR66400.book 174 ページ ２０１８年５月２２日 火曜日 午前１１時８分
