Instruments & Controls
33
Indicators & Displays

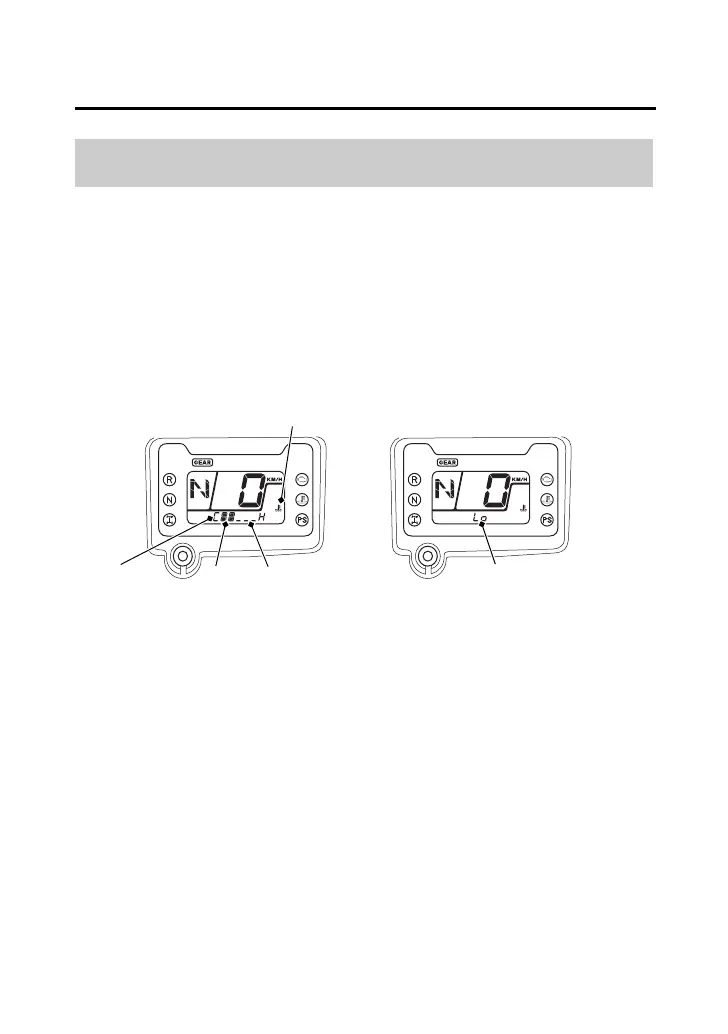

The coolant temperature gauge (1) shows coolant temperature with
the coolant temperature mark (2) while the ignition switch is ON (q).
The normal operating temperature range is within the section
between the 1st segment (3) and 4th segment (4).
When coolant temperature is low, the coolant temperature gauge
will display “Lo” (5).
Coolant Temperature Gauge
(1) coolant temperature gauge
(2) coolant temperature mark
(3) 1st segment
(4) 4th segment
(5) “Lo”
(2)
(1) (3) (4) (5)
