Instruments & Controls
47
Controls & Features
The headlight switch (1) is used to turn the headlights and assist
headlight ON (y) or OFF (t). The assist headlight turns on only when
the headlight dimmer switch (2) is in the HI (u) position. To operate,
turn the switch to ON (y) or OFF (t).
The headlight dimmer switch (2) is used to change between the high
and low beams of the headlights and to activate the assist headlight.
To operate, turn the switch to HI (u) for high beam of the headlights
and activate the assist headlight, LO (i) for low beam of the
headlights and deactivate the assist headlight.
Press the horn button (3) to sound the horn.
Headlight Switch
y t
Headlight Dimmer Switch
u i
Horn Button

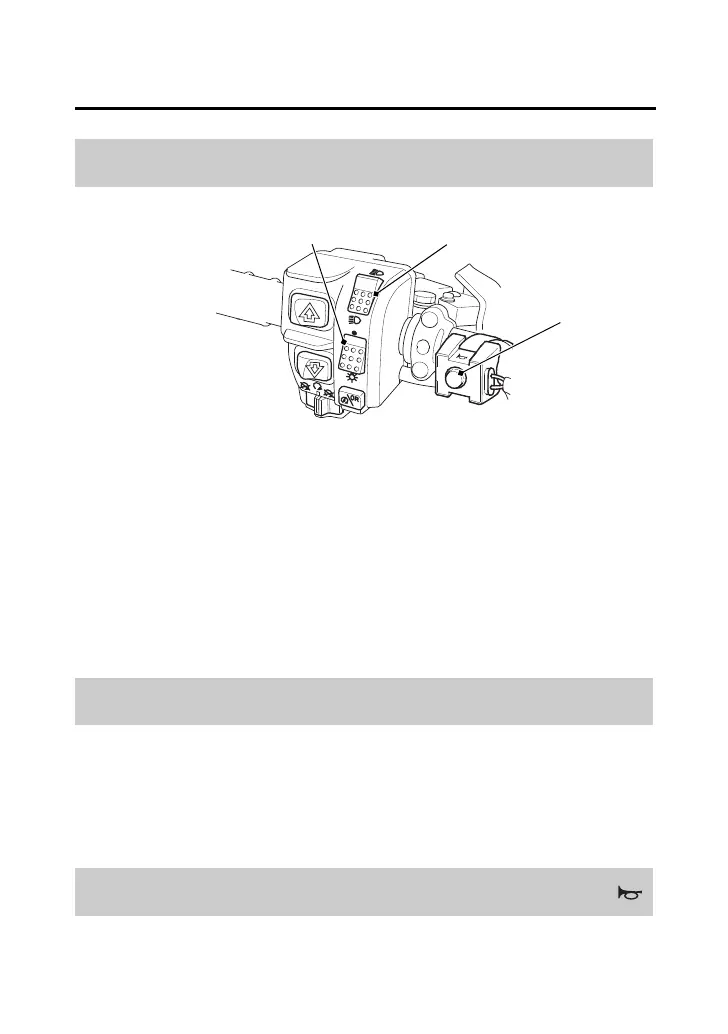

LEFT HANDLEBAR
(1) headlight switch
(2)
y ON
u HI
(1)
t OFF
(2) headlight dimmer switch
i LO
(3) horn button
(3)
