Indicators & Displays
The indicators and displays on your ATV keep you informed, alert
you to possible problems, and make your riding safer and more
enjoyable.
Refer to the indicators frequently. Their functions are described on
the following pages.
(1) (4)

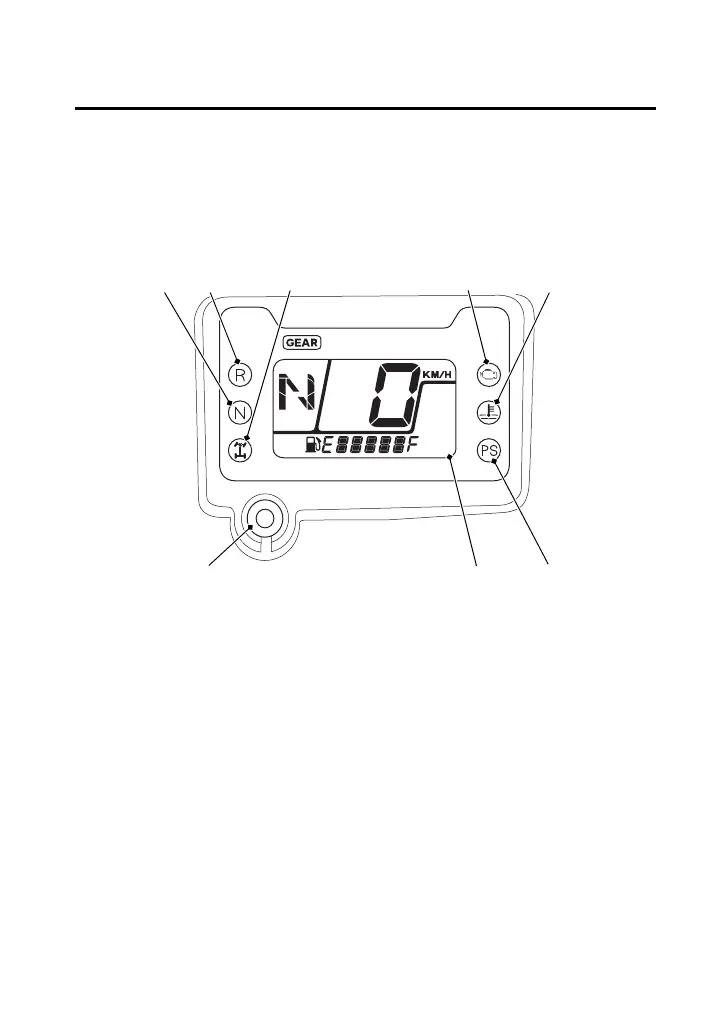

(1) neutral indicator
(3)
(8) (7) (6)
(5)(2)
(2) reverse indicator
(3) differential lock
indicator
(4) PGM-FI indicator
(8) mode select button
(5) high coolant
temperature indicator
(7) multi-function display
(6) PS (Electric Power Steering)
indicator
