Servicing Your Honda
199
Guards
Refer to Safety Precautions on page 125.
The engine guard (1) protects the engine crankcase.
The skid plate (2) protects the frame.
The front boot guards (3) protect the rubber driveshaft boots, and
the front driveshaft guards (4) protect the front driveshafts.
The rear driveshaft guards (5) protect the rubber driveshaft boots
and the rear driveshafts.
Check the guards and plate for cracks, damage or looseness at
intervals shown in the Maintenance Schedule.
Have the guards and skid plate replaced if they are cracked or
damaged. If the guard and plate bolts are loose, tighten them
securely.

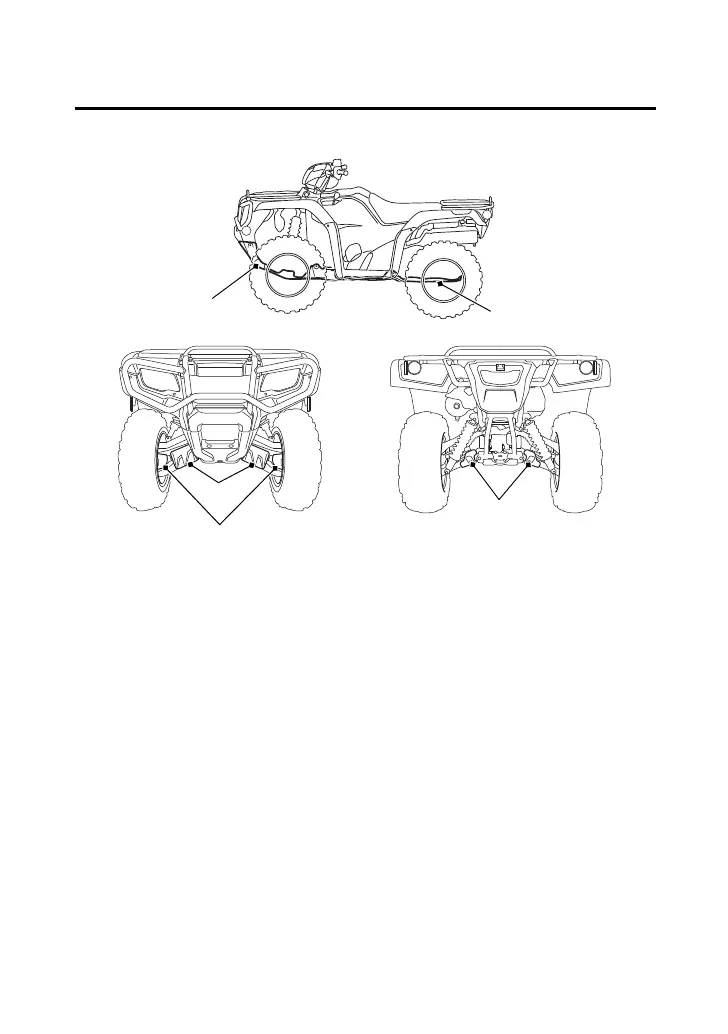

(1) (2)
(1) engine guard
(2) skid plate
(3) front boot guards
(4) front driveshaft guards
(5) rear driveshaft guards
FRONT REAR
(3)
(4)
(5)
