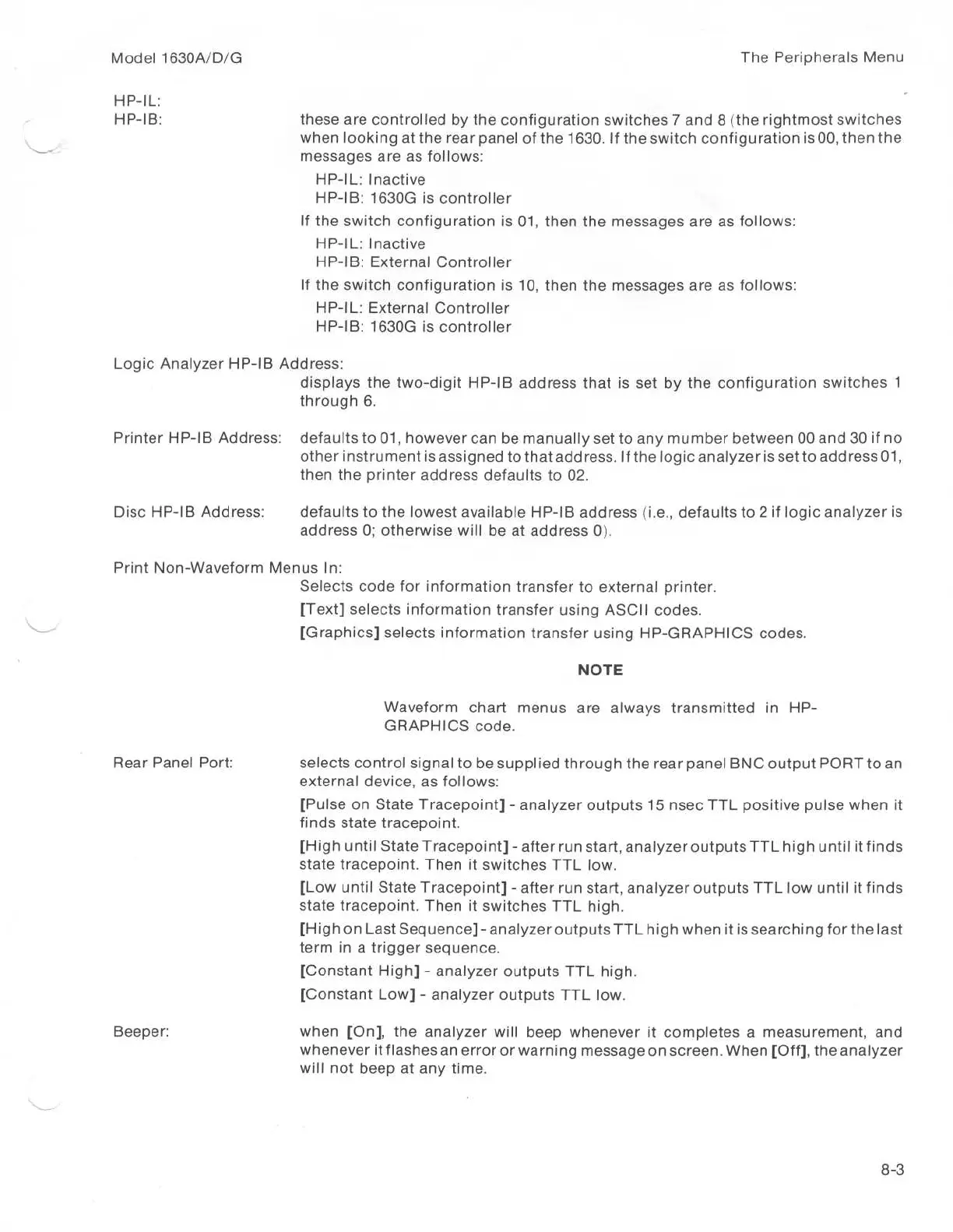

Model
1630A/D/G
The
Peripherals
Menu
HP-IL
:
HP-IB
:
these
are
controlled
by
the
configuration
switches
7
and
8
(the
rightmost
switches
when
looking
at
the
rear
panel
of
the
1630
.
If
the
switch
configuration
is
00,
then
the
messages
are
as
follows
:
HP-IL
:
Inactive
HP-113
:
1630G
is
controller
If
the
switch
configuration
is
01,
then
the
messages
are
as
follows
:
HP-IL
:
Inactive
HP-IB
:
External
Controller
If
the
switch
configuration
is
10,
then
the
messages
are
as
follows
:
HP-IL
:
External
Controller
HP-IB
:
1630G
is
controller
LogicAnalyzer
HP-IB
Address
:
displays
the
two-digit
HP-IB
address
that
is
set
by
the
configuration
switches
1
through
6
.
Printer
HP-113
Address
:
defaults
to
01,
however
can
be
manually
set
to
any
mumber
between
00
and
30
if
no
other
instrument
is
assigned
to
that
address
.
If
the
logic
analyzer
is
set
to
address
01,
then
the
printer
address
defaults
to
02
.
Disc
HP-113
Address
:
defaults
to
the
lowest
available
HP-IB
address
(i
.e
.,
defaults
to
2
if
logic
analyzer
is
address
0
;
otherwise
will
be
at
address
0)
.
Print
Non-Waveform
Menus
In
:
Selects
code
for
information
transfer
to
external
printer
.
[Text]
selects
information
transfer
using
ASCII
codes
.
[Graphics]
selects
information
transfer
using
HP-GRAPHICS
codes
.
NOTE
Waveform
chart
menus
are
always
transmitted
in
HP-
GRAPHICS
code
.
Rear
Panel
Port
:
selects
control
signal
to
be
supplied
through
the
rear
panel
BNC
output
PORT
to
an
external
device,
as
follows
:
[Pulse
on
State
Tracepoint]
-
analyzer
outputs
15
nsec
TTL
positive
pulse
when
it
finds
state
tracepoint
.
[High
until
State
Tracepoint]
-after
run
start,
analyzer
outputs
TTL
high
until
it
finds
state
tracepoint
.
Then
it
switches
TTL
low
.
[Low
until
State
Tracepoint]
-
after
run
start,
analyzer
outputs
TTL
low
until
it
finds
state
tracepoint
.
Then
it
switches
TTL
high
.
[High
on
Last
Sequence]-analyzer
outputs
TTL
high
when
it
is
searching
for
the
last
term
in
a
trigger
sequence
.
[Constant
High]
-
analyzer
outputs
TTL
high
.
[Constant
Low]
-
analyzer
outputs
TTL
low
.
Beeper
:
when
[On],
the
analyzer
will
beep
whenever
it
completes
a
measurement,
and
whenever
itflashes
an
error
or
warning
message
on
screen
.
When
[Off],
the
analyzer
will
not
beep
at
any
time
.
104
