1630A/D/G
SEQUENTIAL
TRIGGERING
Sequential
triggering
is
used
to
trigger
the
analyzer
only
after
a
certain
set
of
events
has
occurred
in
the
sequence
specified
.
It
is
used
in
defining
a
path
of
a
branching
network
within
the
programming
of
the
target
system
.
For
example,
figure
4-27
is
a
typical
branch
network
.
The
analyzer
is
to
execute
a
trace
at
the
trigger
term
6000,
but
only
if
the
program
has
followed
path
2
to
reach
the
location
6000
.
Resource
terms
can
define
the
trace
specifications
as
:
In
sequence
find
[0300],
then
[0305],
then
[0500],
then
start
trace
on
the
first
[00001]
occurrence
of
[6000]
.
5000

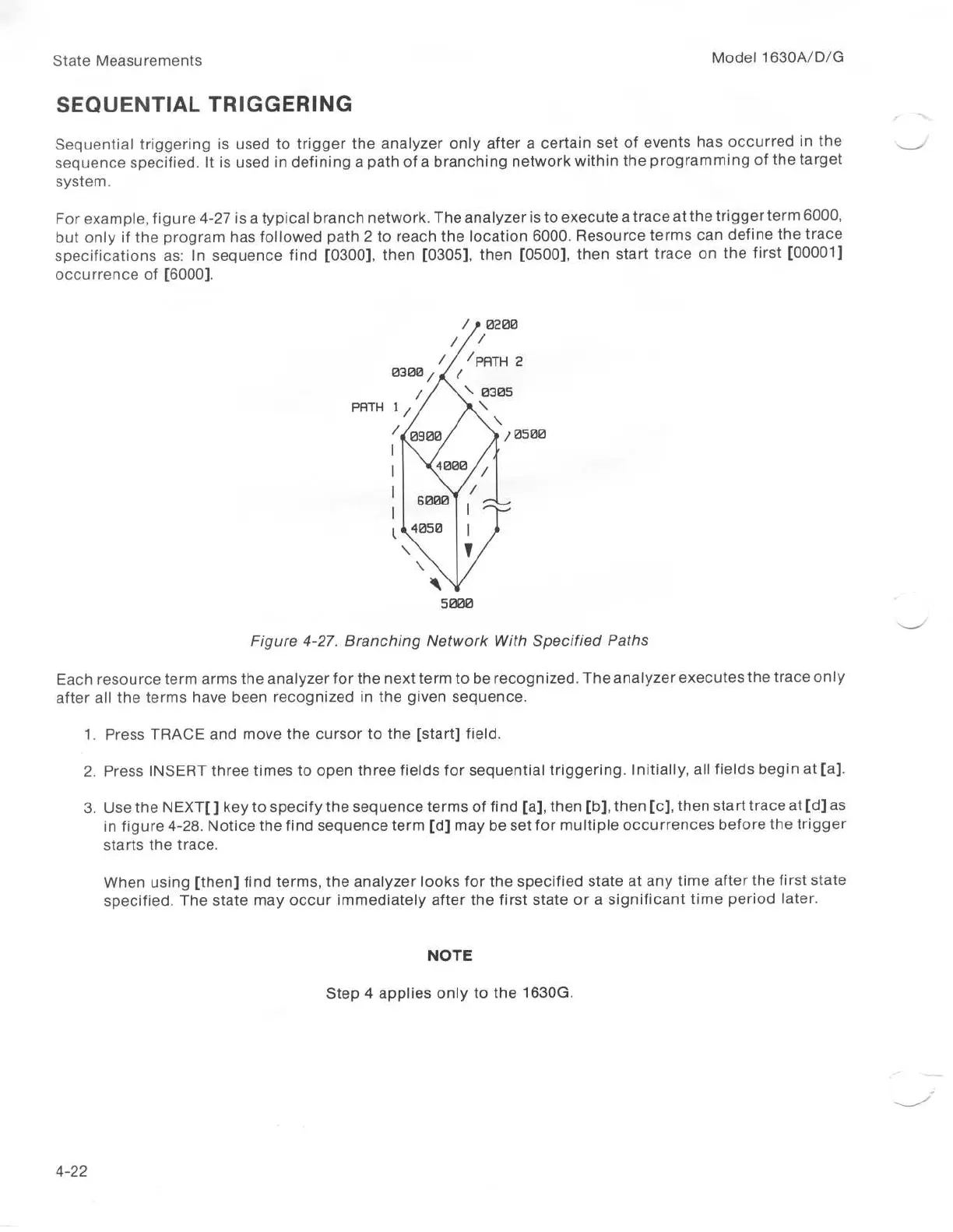

Figure
4-27
.
Branching
Network
With
Specified
Paths
Each
resource
term
arms
the
analyzer
for
the
next
term
to
be
recognized
.
The
analyzer
executes
the
trace
only
after
all
the
terms
have
been
recognized
in
the
given
sequence
.
1
.
Press
TRACE
and
move
the
cursor
to
the
[start]
field
.
2
.
Press
INSERT
three
times
to
open
three
fields
for
sequential
triggering
.
Initially,
all
fields
begin
at
[a]
.
3
.
Use
the
NEXT[]
key
to
specify
the
sequence
terms
of
find
[a],
then
[b],
then
[c],
then
start
trace
at
[d]
as
in
figure
4-28
.
Notice
the
find
sequence
term
[d]
may
be
set
for
multiple
occurrences
before
the
trigger
starts
the
trace
.
When
using
[then]
find
terms,
the
analyzer
looks
for
the
specified
state
at
any
time
after
the
first
state
specified
.
The
state
may
occur
immediately
after
the
first
state
or
a
significant
time
period
later
.
NOTE
Step
4
applies
only
to
the
1630G
.
