Model
1630A/D/G

Using
The
Disc
Memory
Accessory

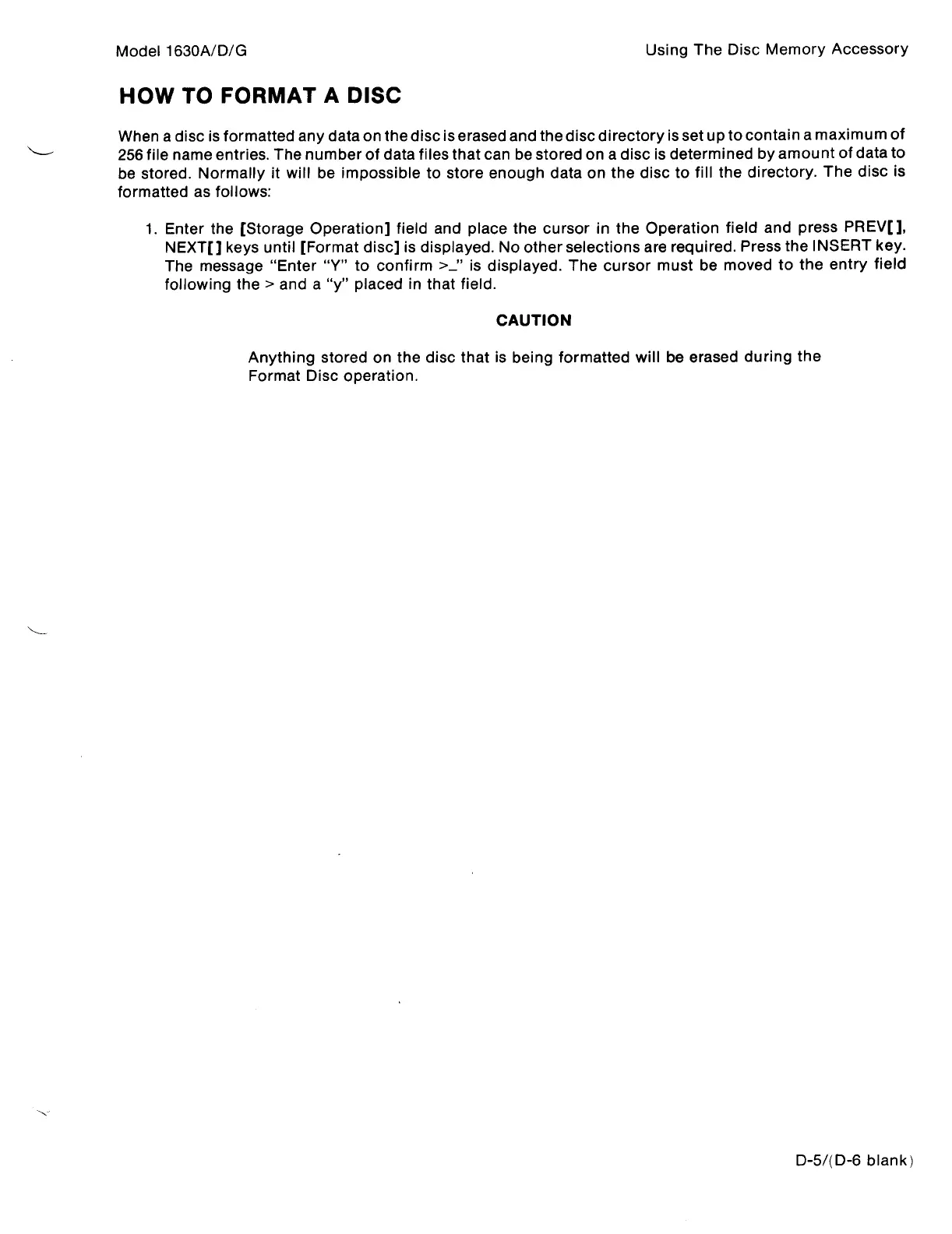

HOW
TO
FORMAT
A
DISC
When
a
disc
is
formatted
any
data
on
the
disc
is
erased
and
the
disc
directory
is
set
up
to
contain
a
maximum
of
256
file
name
entries
.
The
number
of
data
files
that
can
be
stored
on
a
disc
is
determined
by
amount
of
data
to
be
stored
.
Normally
it
will
be
impossible
to
store
enough
data
on
the
disc
to
fill
the
directory
.
The
disc
is
formatted
as
follows
:
1
.
Enter
the
[Storage
Operation]
field
and
place
the
cursor
in
the
Operation
field
and
press
PREV[],
NEXT[]
keys
until
[Format
disc]
is
displayed
.
No
other
selections
are
required
.
Press
the
INSERT
key
.
The
message
"Enter
"Y"
to
confirm
>-'
is
displayed
.
The
cursor
must
be
moved
to
the
entry
field
following
the
>
and
a
"y"
placed
in
that
field
.
CAUTION
Anything
stored
on
the
disc
that
is
being
formatted
will
be
erased
during
the
Format
Disc
operation
.
D-
5/(D-6
blank)
