State
Measurements

Model
1630A/D/G
5
.
Move
the
cursor
to
the
[d]
resource
term
and
press
INSERT
three
times
.
Three
resource
terms
are
added
which
maybe
used
to
define
an
ORed
relationship
to
the
triggerterm
.
The
NEXT[]
and
PREV[
]keys
are
used
to
select
a
specific
resource
term
for
each
field
.
The
fields
provide
an
ORed
relationship
for
the
final
trigger
term
as
shown
in
figure
4-29
.
SEQUENCE
RESTART
State
Trace
Specification
___-
;
._
:
.-________-______________-___
trace
mode
In
sequence
find
or
or
or
then
store
Sequence
restart
on
Label
"
RDDR
DRTR
STRT
un?
trace
on
®
o=currence=
.

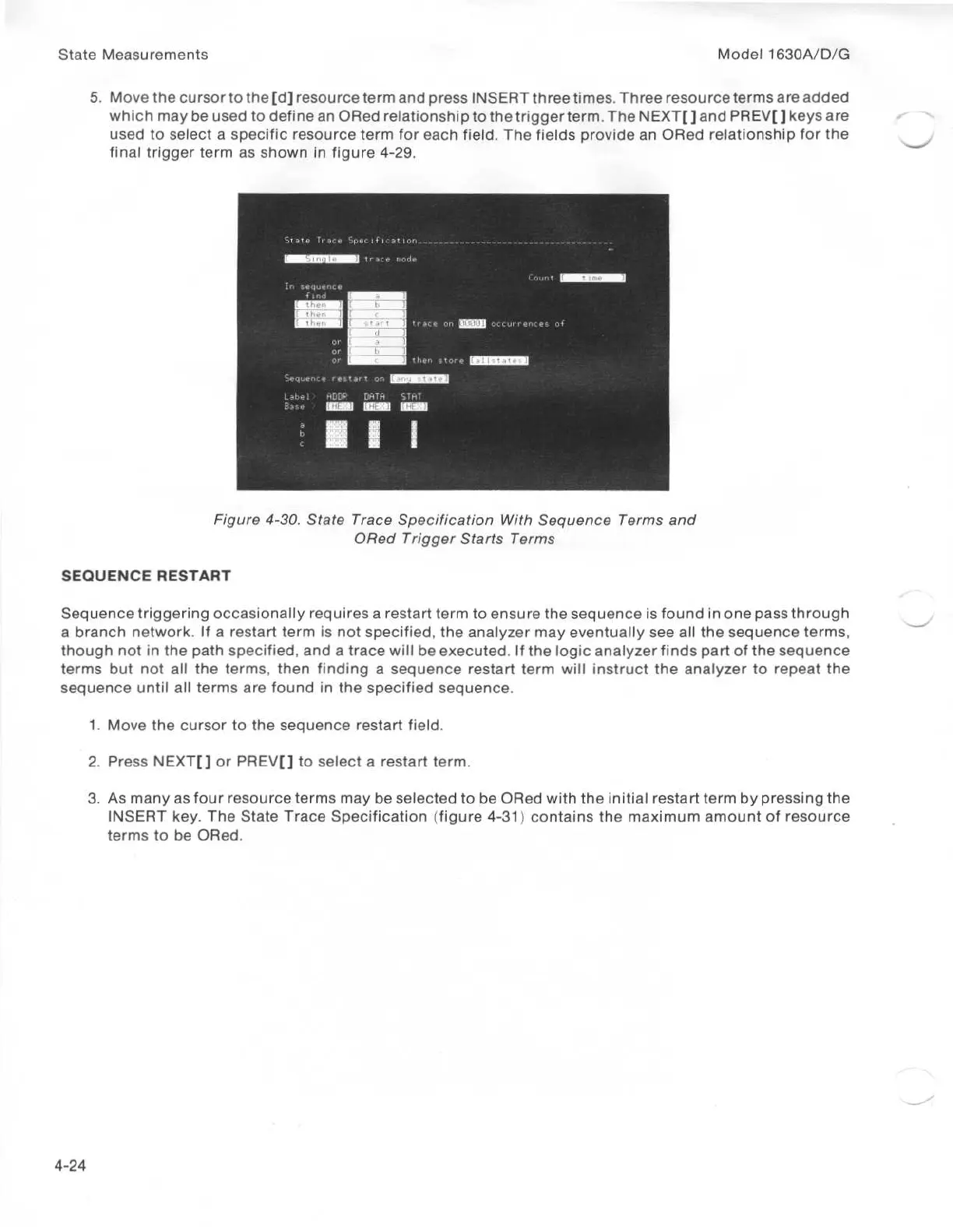

Figure
4-30
.
State
Trace
Specification
With
Sequence
Terms
and
ORed
Trigger
Starts
Terms
Sequence
triggering
occasionally
requires
a
restart
term
to
ensure
the
sequence
is
found
in
one
pass
through
a
branch
network
.
If
a
restart
term
is
not
specified,
the
analyzer
may
eventually
see
all
the
sequence
terms,
though
not
in
the
path
specified,
and
a
trace
will
be
executed
.
If
the
logic
analyzer
finds
part
of
the
sequence
terms
but
not
all
the
terms,
then
finding
a
sequence
restart
term
will
instruct
the
analyzer
to
repeat
the
sequence
until
all
terms
are
found
in
the
specified
sequence
.
1
.
Move
the
cursor
to
the
sequence
restart
field
.
2
.
Press
NEXT[]
or
PREV[]
to
select
a
restart
term
.
3
.
As
many
as
four
resource
terms
may
be
selected
to
be
ORed
with
the
initial
restart
term
by
pressing
the
INSERT
key
.
The
State
Trace
Specification
(figure
4-31)
contains
the
maximum
amount
of
resource
terms
to
be
ORed
.
56
