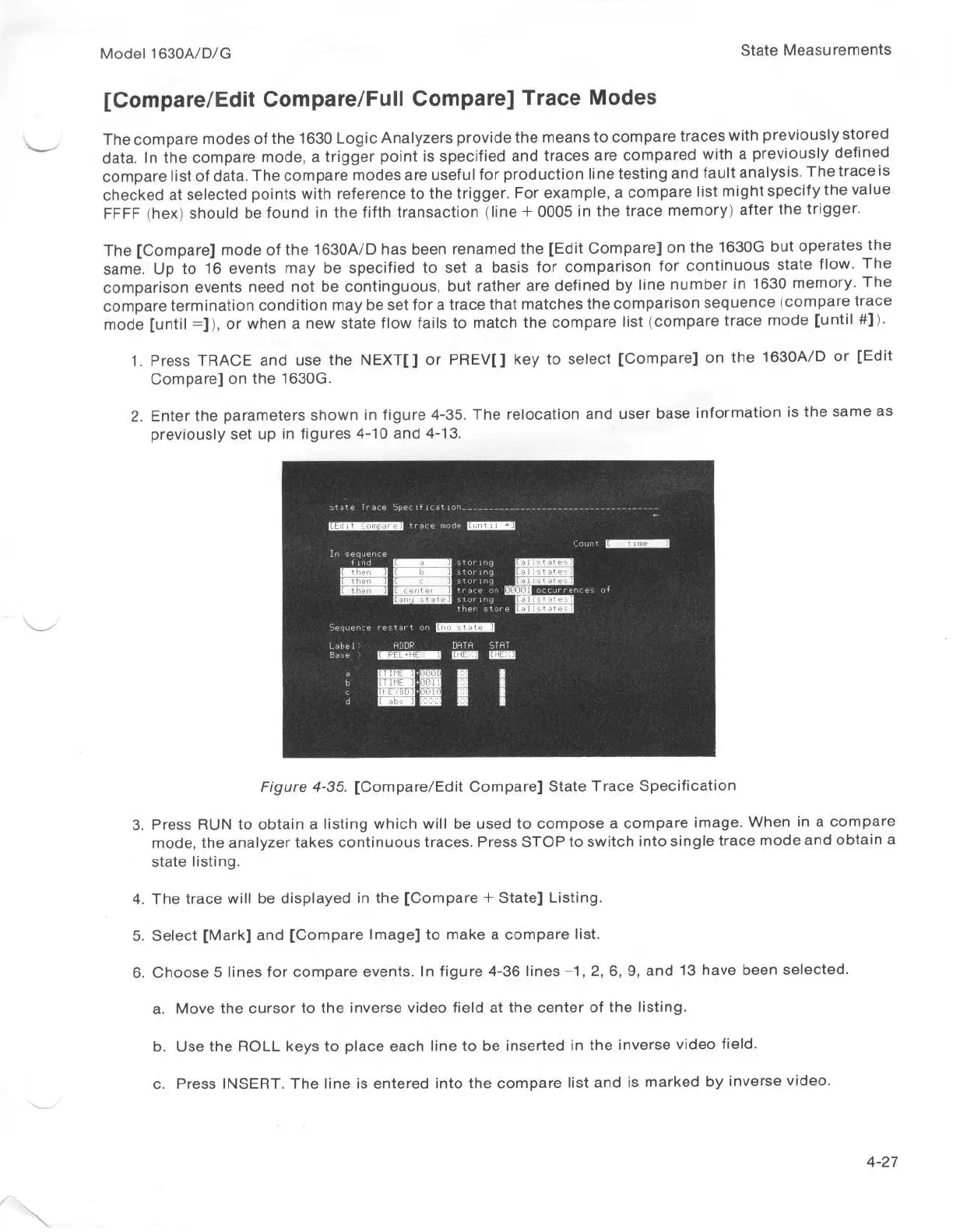

Model
1630A/D/G

State
Measurements
[Compare/Edit
Compare/Full
Compare]
Trace
Modes
The
compare
modes
of
the
1630
Logic
Analyzers
provide
the
means
to
compare
traces
with
previously
stored
data
.
In
the
compare
mode,
a
trigger
point
is
specified
and
traces
are
compared
with
a
previously
defined
compare
list
of
data
.
The
compare
modes
are
useful
for
production
line
testing
and
fault
analysis
.
The
trace
is
checked
at
selected
points
with
reference
to
the
trigger
.
For
example,
a
compare
list
might
specify
the
value
FFFF
(hex)
should
be
found
in
the
fifth
transaction
(line
+
0005
in
the
trace
memory)
after
the
trigger
.
The
[Compare]
mode
of
the
1630A/D
has
been
renamed
the
[Edit
Compare]
on
the
1630G
but
operates
the
same
.
Up
to
16
events
may
be
specified
to
set
a
basis
for
comparison
for
continuous
state
flow
.
The
comparison
events
need
not
be
continguous,
but
rather
are
defined
by
line
number
in
1630
memory
.
The
compare
termination
condition
may
be
set
for
a
trace
that
matches
the
comparison
sequence
(compare
trace
mode
[until
=]
),
or
when
a
new
state
flow
fails
to
match
the
compare
list
(compare
trace
mode
[until
#]
)
.
1
.
Press
TRACE
and
use
the
NEXT[]
or
PREV[]
key
to
select
[Compare]
on
the
1630A/D
or
[Edit
Compare]
on
the
1630G
.
2
.
Enter
the
parameters
shown
in
figure
4-35
.
The
relocation
and
user
base
information
is
the
same
as
previously
set
up
in
figures
4-10
and
4-13
.
'
.otate
Trace
Specification
-------------------------------------
trace
mode
In
sequence
find
f

1
f

i
7
L
,

i

I
Sequence
restart
on
Label',
RDDR
DATA
STRT
Base
'
"
I
IDIL
1
or
ing
oring
firing
race
on
foring
then
store
Figure
4-35
.
[Compare/Edit
Compare]
State
Trace
Specification
3
.
Press
RUN
to
obtain
a
listing
which
will
be
used
to
compose
a
compare
.
When
in
a
compare
mode,
the
analyzer
takes
continuous
traces
.
Press
STOP
to
switch
into
single
trace
mode
and
obtain
a
state
listing
.
4
.
The
trace
will
be
displayed
in
the
[Compare
+
State]
Listing
.
5
.
Select
[Mark]
and
[Compare
Image]
to
make
a
compare
list
.
6
.
Choose
5
lines
for
compare
events
.
In
figure
4-36
lines
-1,
2,
6,
9,
and
13
have
been
selected
.
a
.
Move
the
cursor
to
the
inverse
video
field
at
the
center
of
the
listing
.
b
.
Use
the
ROLL
keys
to
place
each
line
to
be
inserted
in
the
inverse
video
field
.
c
.
Press
INSERT
.
The
line
is
entered
into
the
compare
list
and
is
marked
by
inverse
video
.
4-
2
7
59
