Model
1630A/D/G

State
Measurements
THE
STATE
DISPLAY
List
Displays
List
displays
may
be
obtained
when
any
of
the
state
trace
mode
measurements
are
being
performed,
except
when
in
the
time
interval
overview
mode
.
The
content
and
use
of
the
list
display
depends
upon
which
trace
mode
is
being
used
.
Therefore,
list
displays
are
discussed
for
each
trace
mode
.
[Single]
LIST
DISPLAYS

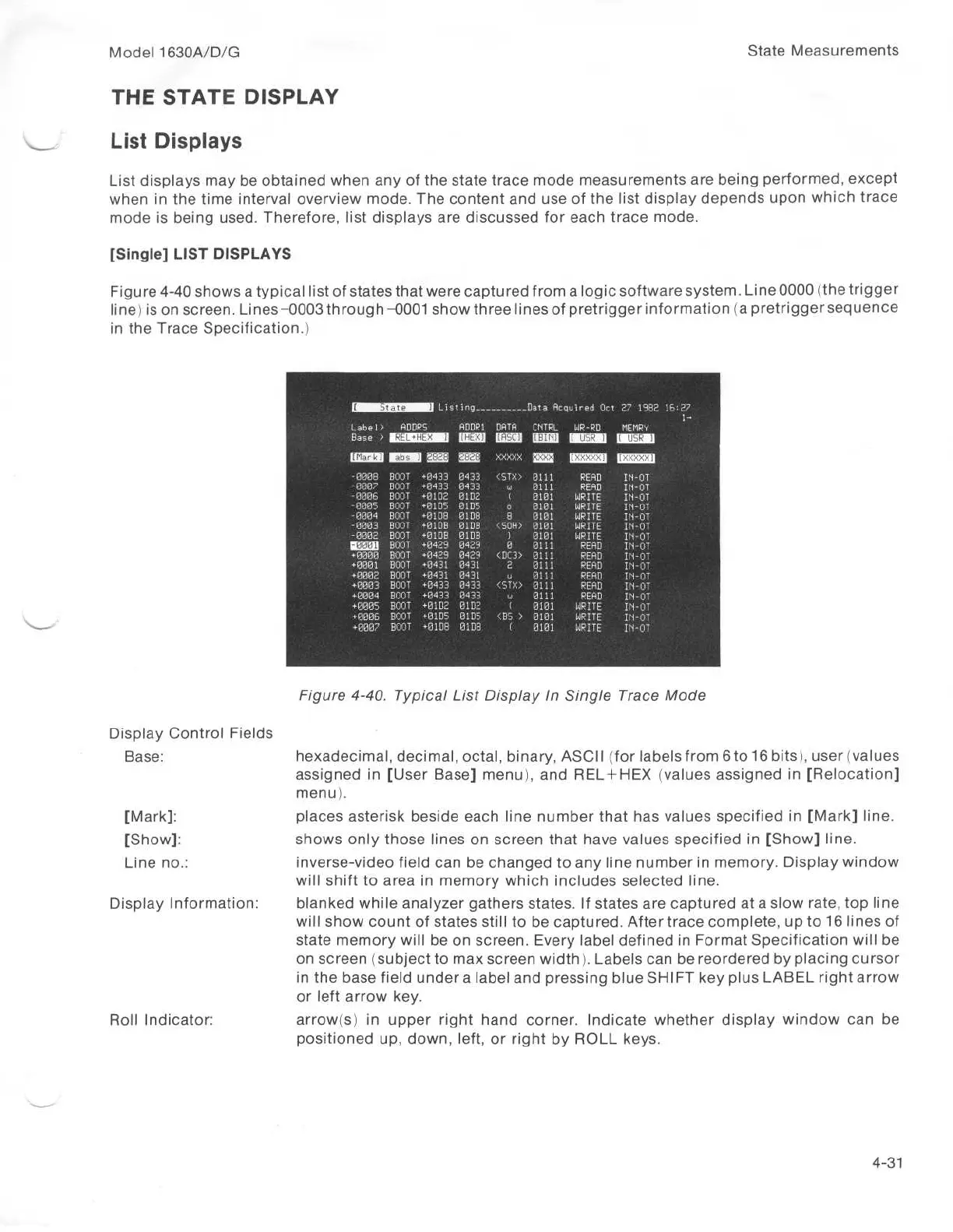

Figure
4-40
shows
a
typical
list
of
states
that
were
captured
from
a
logic
software
system
.
Line
0000
(the
trigger
line)
is
on
screen
.
Lines-0003
through-0001
showthree
linesof
pretriggerinformation
(a
pretriggersequence
in
the
Trace
Specification
.)
Display
Control
Fields
®
Listing
----------
Data
Acquired
Oct
27
1982
16
:27
I-
Figure
4-40
.
Typical
List
Display
In
Single
Trace
Mode
Base
:

hexadecimal,
decimal,
octal,
binary,
ASCII
(for
labels
from
6to
16
bits),
user
(values
assigned
in
[User
Base]menu),
and
REL+HEX
(values
assigned
in
[Relocation]
menu)
.
[Mark]
:

places
asterisk
beside
each
line
number
that
has
values
specified
in
[Mark]
line
.
[Show]
:

shows
only
those
lines
on
screen
that
have
values
specified
in
[Show]
line
.
Line
no
.
:

inverse-video
field
can
be
changed
to
any
line
number
in
memory
.
Display
window
will
shift
to
area
in
memory
which
includes
selected
line
.
Display
Information
:

blanked
while
analyzer
gathers
states
.
If
states
are
captured
at
a
slow
rate,
top
line
will
show
count
of
states
still
to
be
captured
.
Aftertrace
complete,
up
to
16
lines
of
state
memory
will
be
on
screen
.
Every
label
defined
in
Format
Specification
will
be
on
screen
(subject
to
max
screen
width)
.
Labels
can
be
reordered
by
placing
cursor
in
the
base
field
under
a
label
and
pressing
blue
SHIFT
key
plus
LABEL
right
arrow
or
left
arrow
key
.
Roll
Indicator
:

arrow(s)
in
upper
right
hand
corner
.
Indicate
whether
display
window
can
be
positioned
up,
down,
left,
or
right
by
ROLL
keys
.
LabeI>
ADDRS
ADDR1
DATA
CNTRL
WR-RD
MEMRY
Base
>
[Nark]/
abs
1/29281J2828]
XXXXX
-0008
BOOT
+0433
0433
<STX>
0111
READ
IM-OT
-0007
BOOT
+0433
0433
w
011,
READ
IM-OT
-0006
BOOT
+01
02
01D2
(
0101
WRITE
IM-OT
-0005
BOOT
+01D5
01D5
0
0
101
WRITE
IM-OT
-0004
BOOT
+01DB
01DB
8
0101
WRITE
IN-OT
-0003
BOOT
+01DB
01DB
<SOH>
0101
WRITE
IN-OT
-0002
BOOT
+01DB
01DB
1
0101
WRITE
IN-OT
-0001
BOOT
+0429
0429
0
0111
READ
IN-OT
+0000
BOOT
+0429
0429
<DC3>
0111
READ
IN-OT
+0001
BOOT
+0431
0431
2
0111
READ
IN-OT
+0002
BOOT
+0431
0431
u
0111
READ
IN-OT
+0003
BOOT
+0433
0433
<STX>
0111
READ
IN-OT
+0004
BOOT
+0433
0433
W
0111
READ
IN-OT
+0005
BOOT
+01D2
01D2
(
0101
WRITE
IN-OT
+0006
BOOT
+01D5
01D5
<BS
>
0101
WRITE
IN-OT
+0007
BOOT
+01D8
01DB
(
0101
WRITE
IN-OT
63
65
