Model
1630A/D/G
Interactive
State
and
Timing
Measurements
3
.

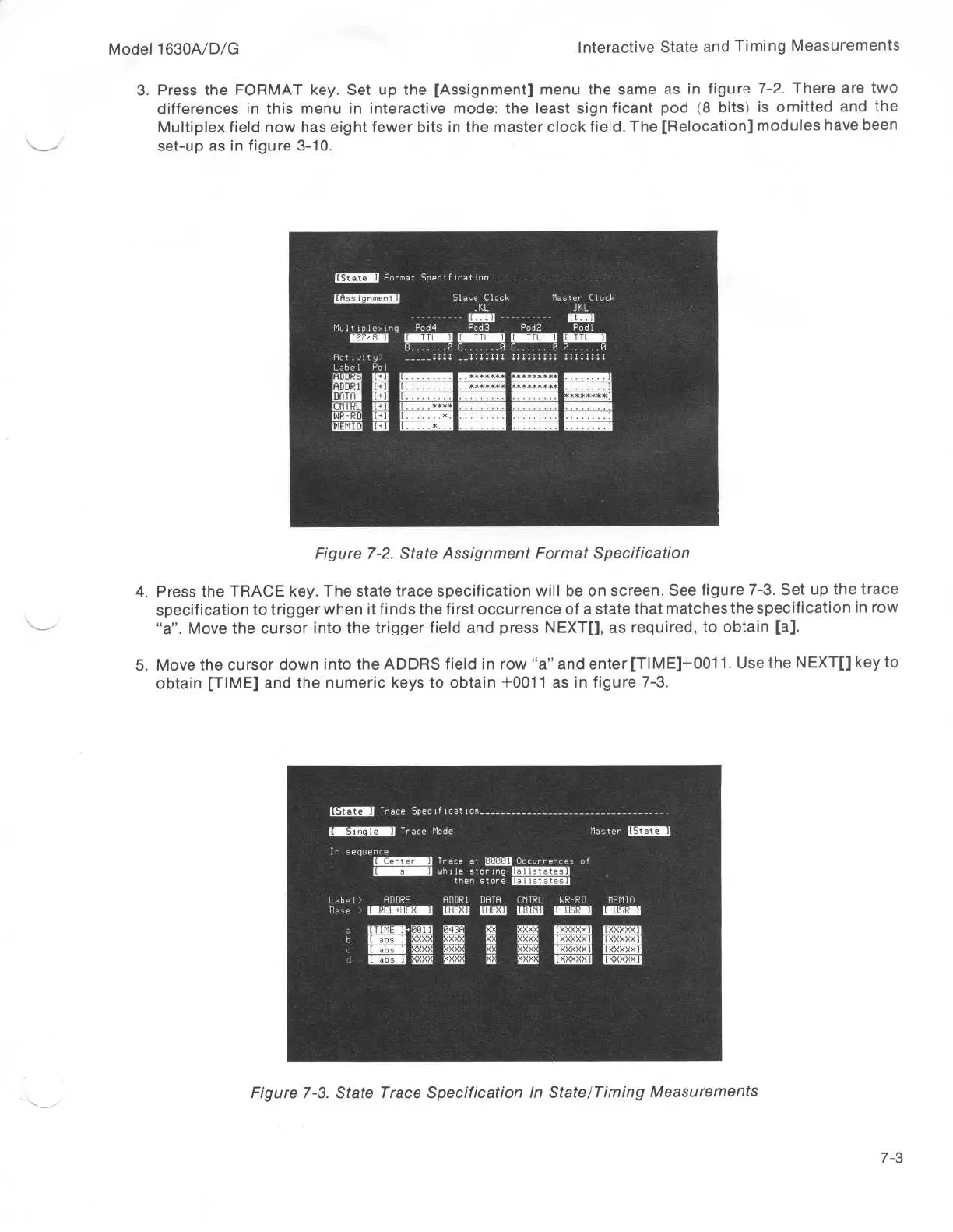

Press
the
FORMAT
key
.
Set
up
the
[Assignment]
menu
the
same
as
in
figure
7-2
.
There
are
two
differences
in
this
menu
in
interactive
mode
:
the
least
significant
pod
(8
bits)
is
omitted
and
the
Multiplex
field
now
has
eight
fewer
bits
in
the
master
clock
field
.
The
[Relocation]
modules
have
been
set-up
as
in
figure
3-10
.
Slave
Clock
Master
Clock
JKL
JKL
Multiplexing
Pod4
Pod3
Pod2
Podl
8
.
.
.
.
.
.
.0
8
.
.
.
.
.
.
.0
8
.
.
.
.
.
.
.0
7
.
.
.
.
.
.0
Activity>
_____lilt
__1111111
111111111
11111111
Label
Pol
DATA
WR-RD
Figure
7-2
.
State
Assignment
Format
Specification
4
.
Press
the
TRACE
key
.
The
state
trace
specification
will
be
on
screen
.
See
figure
7-3
.
Set
up
the
trace
specification
to
trigger
when
it
finds
the
first
occurrence
of
a
state
that
matches
the
specification
in
row
"a"
.
Move
the
cursor
into
the
trigger
field
and
press
NEXT[],
as
required,
to
obtain
[a]
.
5
.
Move
the
cursor
down
into
the
ADDRS
field
in
row
"a"
and
enter
[TIME]+0011
.
Use
the
NEXT[]
key
to
obtain
[TIME]
and
the
numeric
keys
to
obtain
+0011
as
in
figure
7-3
.
Trace
Specification
___________________________________
.
In
sequence
l
Trace
Mode
Master
Trace
at
.
.®
Occurrences
of
®
while
storing
then
store
Label>
ADDRS
ADDRI
DATA
CMTRL
WR-RD
MEM10
Figure
7-3
.
State
Trace
Specification
In
State/Timing
Measurements
7-
3
