The
Peripherals
Menu

Model
1630A/D/G
Sy-em
Specification
------------------------------------------
CI
ool
:

=
:et,
:
Print
non-waveform
men
Rear
panel
port
:
Beeper
:
HP-IL
:
Eternal
Controller
HF'-IB
:
1S30G
is
controller
Logic
.
analyzer
HP-IB
address
:
00
Printer
HP-IB
address
:
Disc

HP
-
1B
address
:

02
Ho
Disc
Autoload
tn
"
.
"
erse
assembler
from
ir~t
.ernal
storag
Hi
.rtoloa~d
configuration
from
internal
storage
:
S-e
configuration
in
internal
_storage
:
i
.-J

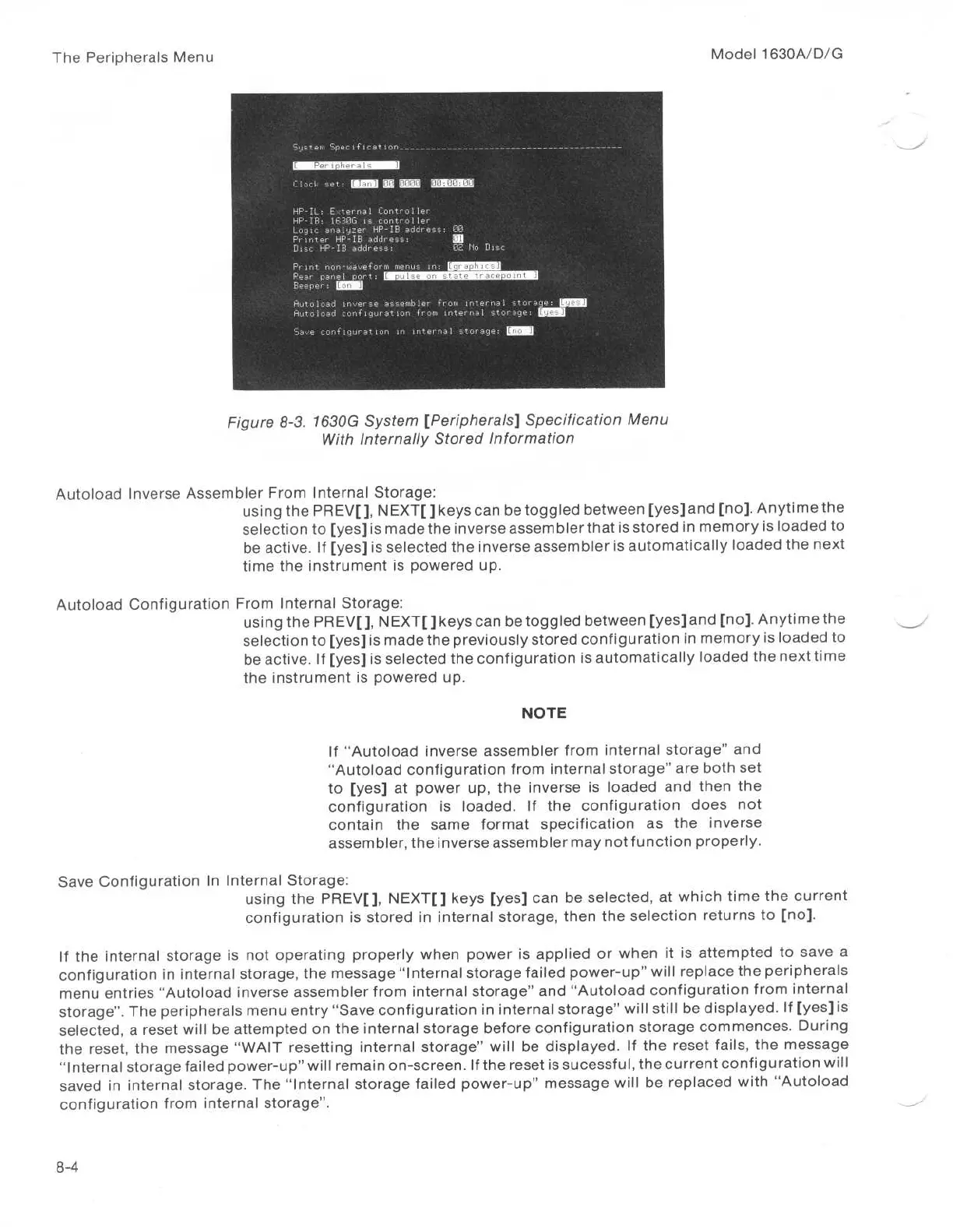

Figure
8-3
.
1630G
System
[Peripherals]
Specification
Menu
With
Internally
Stored
Information
Autoload
Inverse
Assembler
From
Internal
Storage
:
using
the
PREV[],
NEXT[
]keys
can
be
toggled
between
[yes]
and
[no]
.
Anytime
the
selection
to
[yes]
is
made
the
inverse
assembler
that
is
stored
in
memory
is
loaded
to
be
active
.
If
[yes]
is
selected
the
inverse
assembler
is
automatically
loaded
the
next
time
the
instrument
is
powered
up
.
Autoload
Configuration
From
Internal
Storage
:
using
the
PREV[],
NEXT[]
keys
can
betoggled
between
[yes]and
[no]
.
Anytimethe
selection
to
[yes]
is
made
the
previously
stored
configuration
in
memory
is
loaded
to
be
active
.
If
[yes]
is
selected
the
configuration
is
automatically
loaded
the
nexttime
the
instrument
is
powered
up
.
8-4
NOTE
If
"Autoload
inverse
assembler
from
internal
storage"
and
"Autoload
configuration
from
internal
storage"
are
both
set
to
[yes]
at
power
up,
the
inverse
is
loaded
and
then
the
configuration
is
loaded
.
If
the
configuration
does
not
contain
the
same
format
specification
as
the
inverse
assembler,
the
inverse
assembler
may
not
function
properly
.
Save
Configuration
In
Internal
Storage
:
using
the
PREV[],
NEXT[]
keys
[yes]
can
be
selected,
at
which
time
the
current
configuration
is
stored
in
internal
storage,
then
the
selection
returns
to
[no]
.
If
the
internal
storage
is
not
operating
properly
when
power
is
applied
or
when
it
is
attempted
to
save
a
configuration
in
internal
storage,
the
message
"Internal
storage
failed
power-up"
will
replace
the
peripherals
menu
entries
"Autoload
inverse
assembler
from
internal
storage"
and
°Autoload
configuration
from
internal
storage"
.
The
peripherals
menu
entry
"Save
configuration
in
internal
storage"
will
still
be
displayed
.
If
[yes]
is
selected,
a
reset
will
be
attempted
on
the
internal
storage
before
configuration
storage
commences
.
During
the
reset,
the
message
"WAIT
resetting
internal
storage"
will
be
displayed
.
If
the
reset
fails,
the
message
"Internal
storage
failed
power-up"
will
remain
on-screen
.
If
the
reset
is
sucessful,
the
current
configuration
will
saved
in
internal
storage
.
The
"Internal
storage
failed
power-up"
message
will
be
replaced
with
"Autoload
configuration
from
internal
storage"
.
105
