1630A/D/G

Display
Messages
Delaying
-
This
message
pertains
to
a
trace
in
progress
.

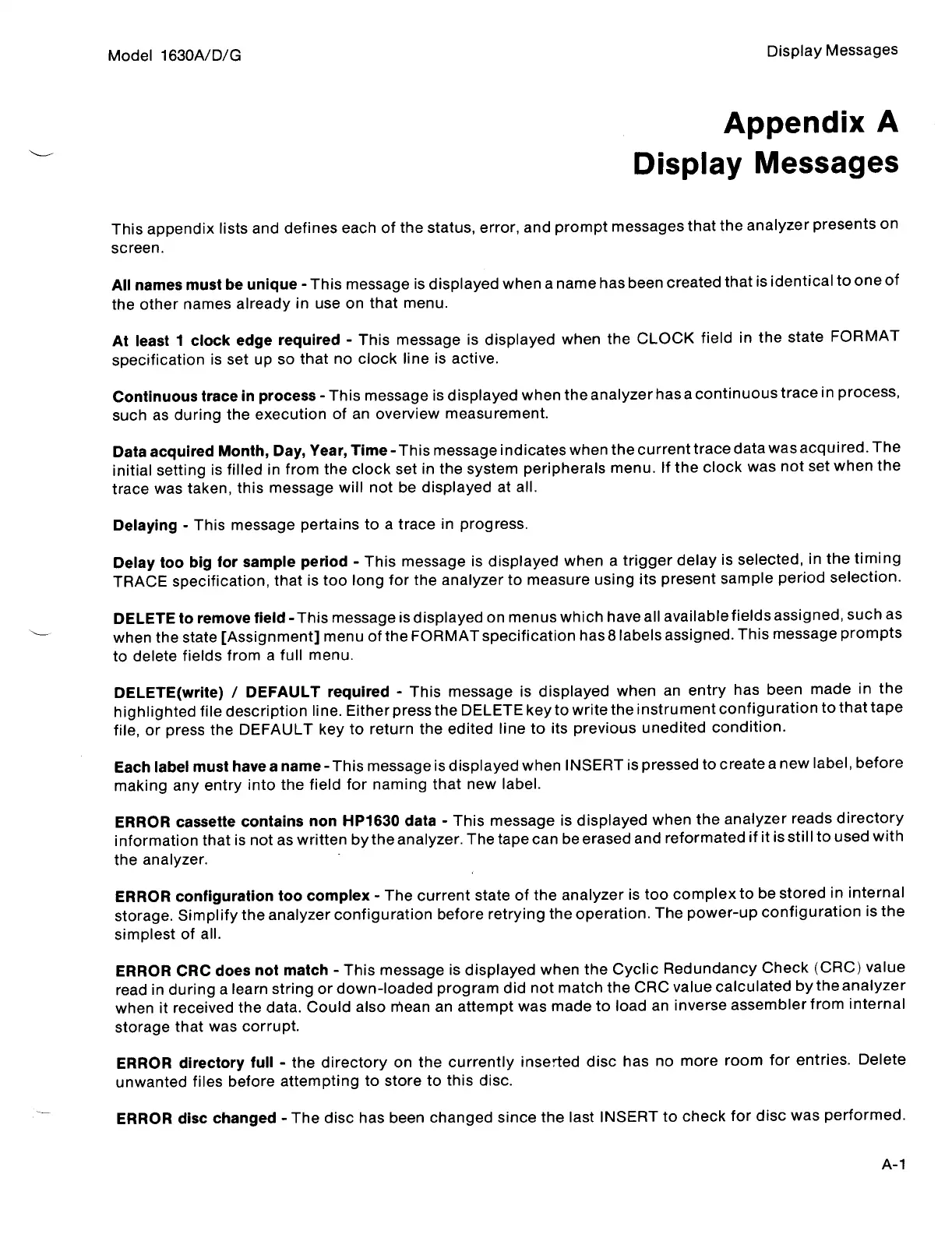

Appendix
A
Display
Messages
This
appendix
lists
and
defines
each
of
the
status,
error,
and
prompt
messages
that
the
analyzer
presents
on
screen
.
All
names
must
be
unique
-This
message
is
displayed
when
a
name
has
been
created
that
is
identical
to
one
of
the
other
names
already
in
use
on
that
menu
.
At
least
1
clock
edge
required
-
This
message
is
displayed
when
the
CLOCK
field
in
the
state
FORMAT
specification
is
set
up
so
that
no
clock
line
is
active
.
Continuous
trace
in
process
-This
message
is
displayed
when
the
analyzer
has
a
continuous
trace
in
process,
such
as
during
the
execution
of
an
overview
measurement
.
Data
acquired
Month,
Day,
Year,
Time-This
message
indicates
when
the
current
trace
data
was
acquired
.
The
initial
setting
is
filled
in
from
the
clock
set
in
the
system
peripherals
menu
.
If
the
clock
was
not
set
when
the
trace
was
taken,
this
message
will
not
be
displayed
at
all
.
Delay
too
big
for
sample
period
-
This
message
is
displayed
when
a
trigger
delay
is
selected,
in
the
timing
TRACE
specification,
that
is
too
long
for
the
analyzer
to
measure
using
its
present
sample
period
selection
.
DELETE
to
remove
field-This
message
is
displayed
on
menus
which
have
all
available
fields
assigned,
such
as
when
the
state
[Assignment]
menu
of
the
FORMAT
specification
has8labels
assigned
.
This
message
prompts
to
delete
fields
from
a
full
menu
.
DELETE(write)
/
DEFAULT
required
-
This
message
is
displayed
when
an
entry
has
been
made
in
the
highlighted
file
description
line
.
Either
press
the
DELETE
key
to
write
the
instrument
configuration
to
that
tape
file,
or
press
the
DEFAULT
key
to
return
the
edited
line
to
its
previous
unedited
condition
.
Each
label
must
have
a
name-This
message
is
displayed
when
INSERT
is
pressed
to
create
a
new
label,
before
making
any
entry
into
the
field
for
naming
that
new
label
.
ERROR
cassette
contains
non
HP1630
data
-
This
message
is
displayed
when
the
analyzer
reads
directory
information
that
is
not
as
written
by
the
analyzer
.
The
tape
can
be
erased
and
reformated
if
it
is
still
to
used
with
the
analyzer
.
ERROR
configuration
too
complex
-
The
current
state
of
the
analyzer
is
too
complex
to
be
stored
in
internal
storage
.
Simplify
the
analyzer
configuration
before
retrying
the
operation
.
The
power-up
configuration
is
the
simplest
of
all
.
ERROR
CRC
does
not
match
-
This
message
is
displayed
when
the
Cyclic
Redundancy
Check
(CRC)
value
read
in
during
a
learn
string
or
down-loaded
program
did
not
match
the
CRC
value
calculated
by
the
analyzer
when
it
received
the
data
.
Could
also
mean
an
attempt
was
made
to
load
an
inverse
assembler
from
internal
storage
that
was
corrupt
.
ERROR
directory
full
-
the
directory
on
the
currently
inserted
disc
has
no
more
room
for
entries
.
Delete
unwanted
files
before
attempting
to
store
to
this
disc
.
ERROR
disc
changed
-
The
disc
has
been
changed
since
the
last
INSERT
to
check
for
disc
was
performed
.
