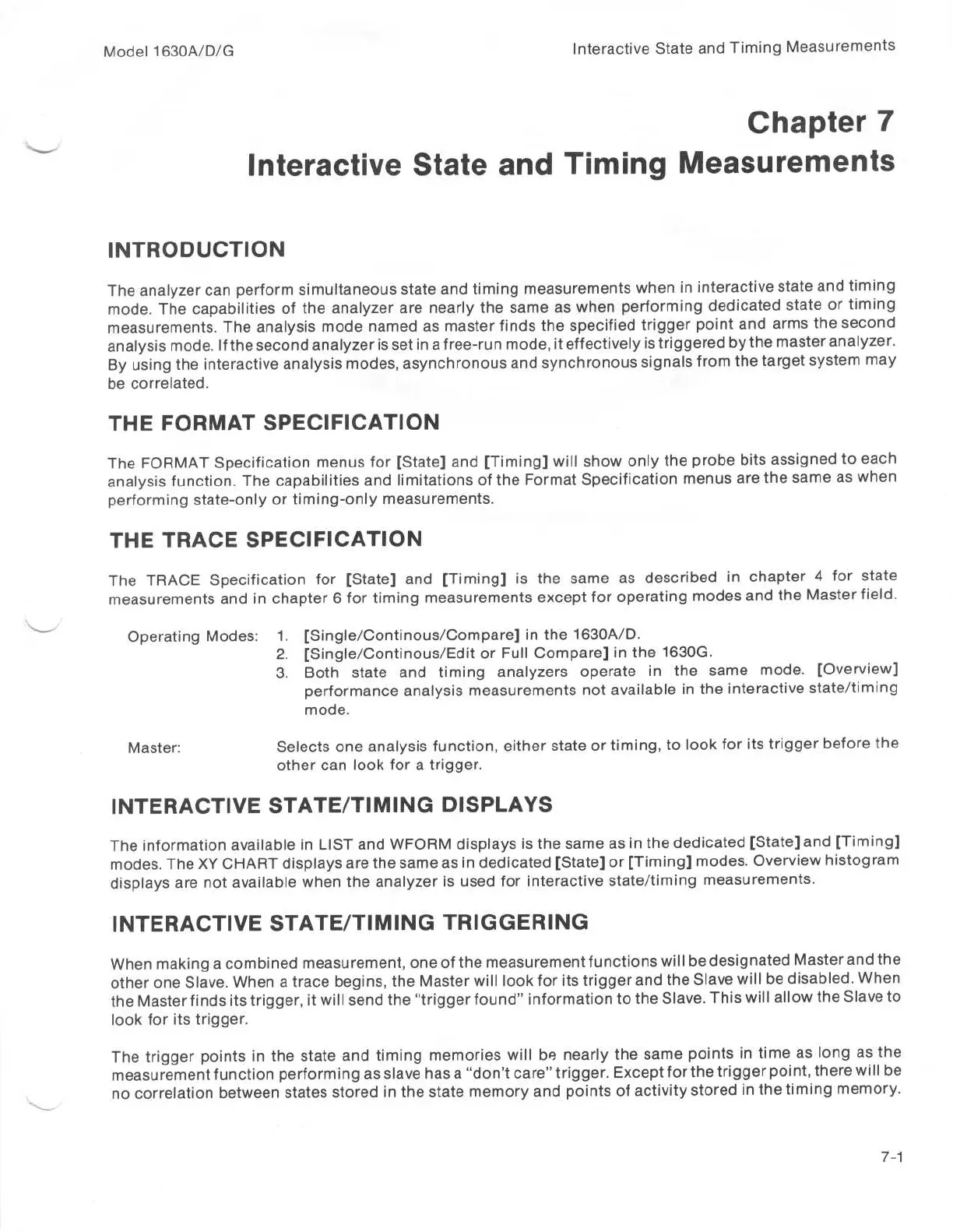

Model
1630A/D/G

Interactive
State
and
Timing
Measurements
INTRODUCTION
Chapter
7
Interactive
State
and
Timing
Measurements
The
analyzer
can
perform
simultaneous
state
and
timing
measurements
when
in
interactive
state
and
timing
mode
.
The
capabilities
of
the
analyzer
are
nearly
the
same
as
when
performing
dedicated
state
or
timing
measurements
.
The
analysis
mode
named
as
master
finds
the
specified
trigger
point
and
arms
the
second
analysis
mode
.
If
the
second
analyzer
is
set
in
a
free-run
mode,
it
effectively
is
triggered
by
the
master
analyzer
.
By
using
the
interactive
analysis
modes,
asynchronous
and
synchronous
signals
from
the
target
system
may
be
correlated
.
THE
FORMAT
SPECIFICATION
The
FORMAT
Specification
menus
for
[State]
and
[Timing]
will
show
only
the
probe
bits
assigned
to
each
analysis
function
.
The
capabilities
and
limitations
of
the
Format
Specification
menus
are
the
same
as
when
performing
state-only
or
timing-only
measurements
.
THE
TRACE
SPECIFICATION
The
TRACE
Specification
for
[State]
and
[Timing]
is
the
same
as
described
in
chapter
4
for
state
measurements
and
in
chapter
6
for
timing
measurements
except
for
operating
modes
and
the
Master
field
.
Operating
Modes
:

1
.

[Single/Continous/Compare]
in
the
1630A/D
.
2
.

[Single/Continous/Edit
or
Full
Compare]
in
the
1630G
.
3
.
Both
state
and
timing
analyzers
operate
in
the
same
mode
.
[Overview]
performance
analysis
measurements
not
available
in
the
interactive
state/timing
mode
.
Master
:

Selects
one
analysis
function,
either
state
or
timing,
to
look
for
its
trigger
before
the
other
can
look
for
a
trigger
.
INTERACTIVE
STATE/TIMING
DISPLAYS
The
information
available
in
LIST
and
WFORM
displays
is
the
same
as
in
the
dedicated
[State]
and
[Timing]
modes
.
The
XY
CHART
displays
are
the
same
as
in
dedicated
[State]
or
[Timing]
modes
.
Overview
histogram
displays
are
not
available
when
the
analyzer
is
used
for
interactive
state/timing
measurements
.
INTERACTIVE
STATE/TIMING
TRIGGERING
When
making
a
combined
measurement,
one
of
the
measurement
functions
will
be
designated
Masterand
the
other
one
Slave
.
When
a
trace
begins,
the
Master
will
look
for
its
trigger
and
the
Slave
will
be
disabled
.
When
the
Master
finds
its
trigger,
it
will
send
the
"trigger
found"
information
to
the
Slave
.
This
will
allow
the
Slave
to
look
for
its
trigger
.
The
trigger
points
in
the
state
and
timing
memories
will
be
nearly
the
same
points
in
time
as
long
as
the
measurement
function
performing
as
slave
has
a
"don't
care"
trigger
.
Except
for
the
trigger
point,
there
will
be
no
correlation
between
states
stored
in
the
state
memory
and
points
of
activity
stored
in
the
timing
memory
.
