2-8
Installing the Switch
Installation Procedures
• The port LEDs on the front of the switch go into their normal
operational mode:
– If the ports are connected to active network devices, the port Link
LEDs are on, and the port Mode LEDs behave according to the
LED Mode selected. In the default LED mode (Act), the LEDs
should be flickering to show network traffic.
– If the ports are not connected to active network devices, the LEDs
will stay off.
If the LED display is different than what is described above, especially if the
Fault and Test LEDs stay on for more than 60 seconds or they start blinking,
then the switch boot has not completed correctly. Refer to chapter 5,
“Troubleshooting” for diagnostic help.
3. (Optional) Install 10G Expansion Modules
Note Hot swapping the 10G Expansion Modules is not supported. If a module is
installed with the switch powered on, self-test of the module will not occur,
the Mdl LED on the front of the switch and the Module Status LED on the
module will blink orange. The switch must be reset or power cycled for the
module to function. Only insert or remove a module during scheduled
downtime with the switch powered off.
1. Remove the cover plate.
2. Insert the module aligning with the guides in the slot.
3. Press the module fully into place – the module’s bulkhead should be
contacting the switch face.
4. Tighten the captive screws until they are snug – do not overtighten them.

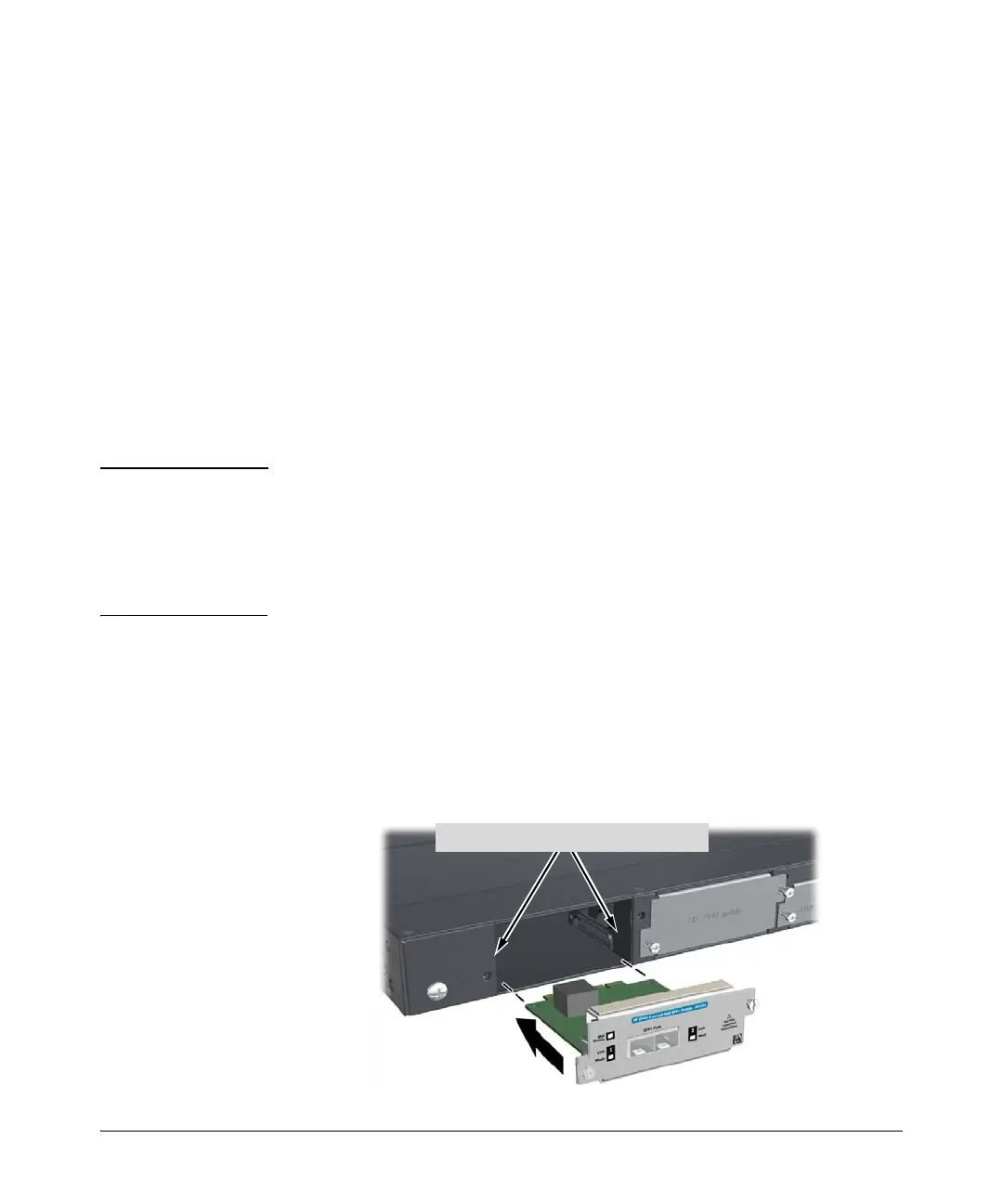

Figure 2-5. Installing a 10G Expansion Module
Align the edges of the board with guides
To Next Page
