Installing the Switch
Installation Procedures
Console Cable Pinouts
The console cable has an RJ-45 plug on one end and a DB-9 female connector
on the other end. Table 2-3 describes the mapping of the RJ-45 to DB-9 pins.

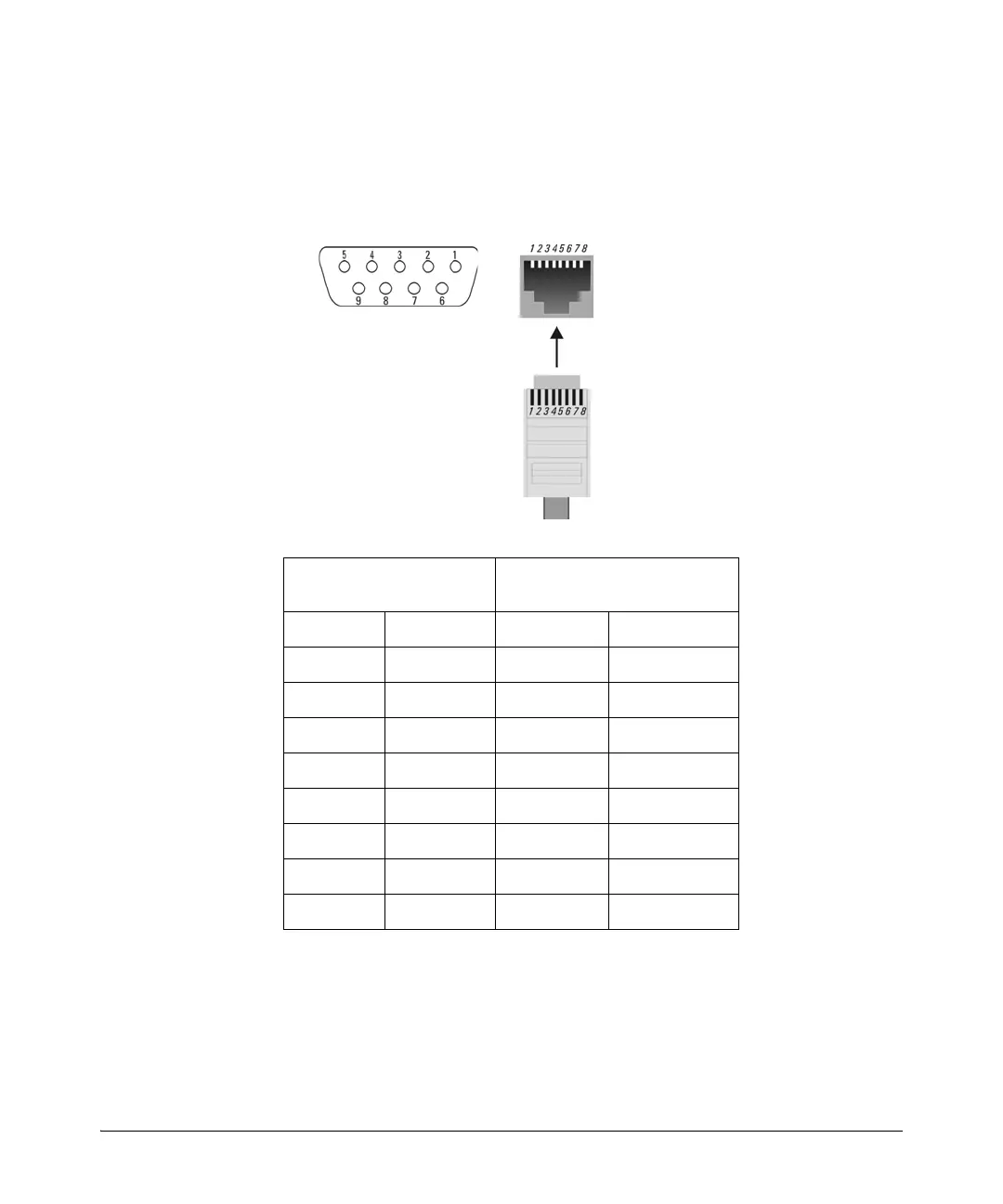

Figure 2-19. RJ-45 to DB-9 pinouts
Table 2-3. Mapping of RJ-45 to DB-9
RJ-45 (Signal reference from
Chassis)
DB-9 (Signal reference from PC)
Reserved 1 8 CTS
Reserved 2 6 DSR
TXD 3 2 RXD
Reserved 4 1 DCD
GND 5 5 GND
RXD 6 3 TXD
Reserved 7 4 DTR
Reserved 8 7 RTS
9RI
