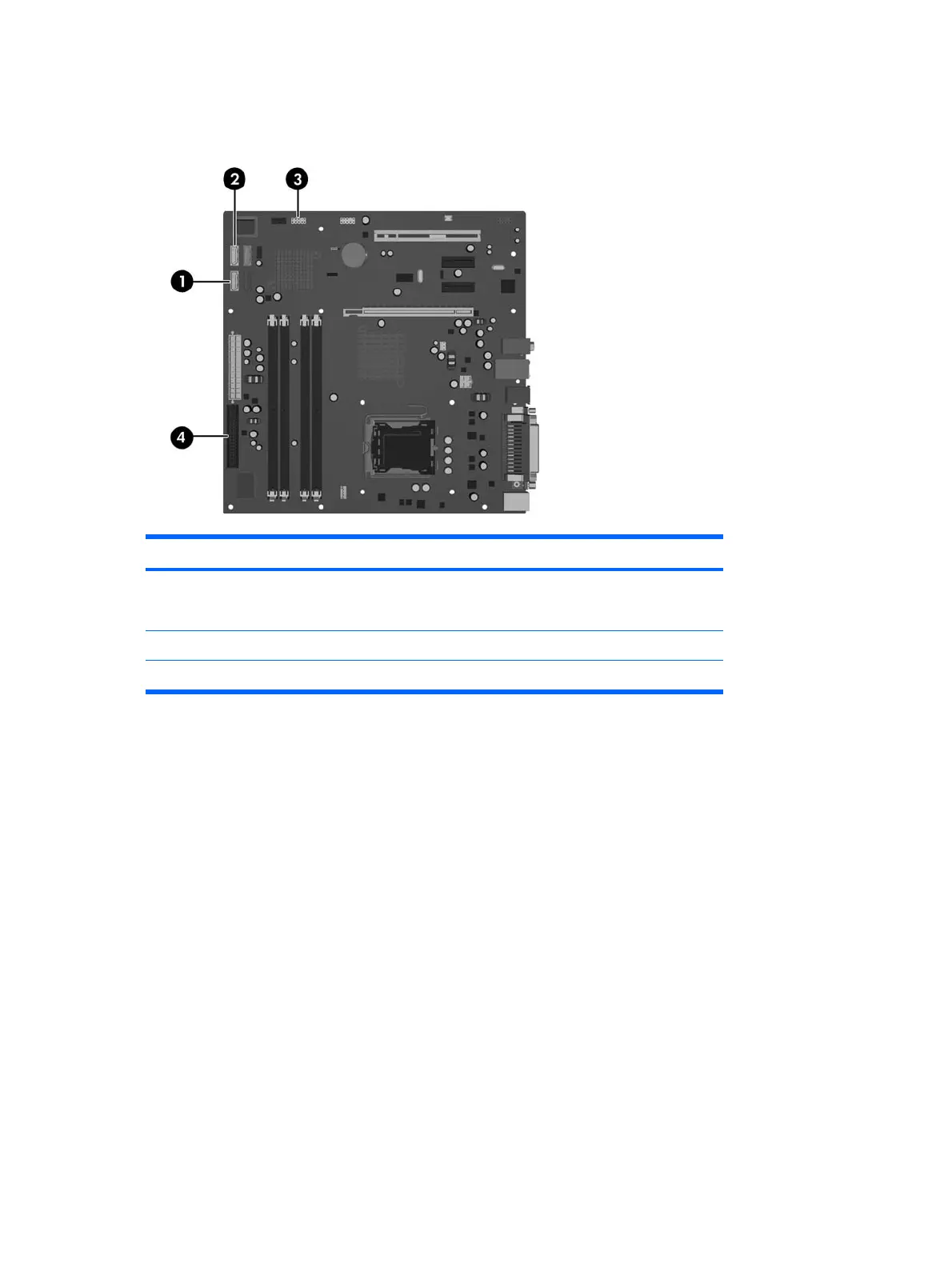

System Board Drive Connections
Follow the guidelines in the illustration and table below when connecting drives to the system board.
Drive Configuration System Board Connectors
1 hard drive
1 optical drive
(1) SATA1 hard drive
(2) SATA2 optical drive
media card reader (3) USB connector (white)
diskette drive (4) FDD connector (black)
94 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
