Front I/O Panel Housing Assembly
1. Prepare the computer for disassembly (Preparation for Disassembly on page 56).
2. Remove the access panel and rotate the computer so the system board is parallel to the table to
make it easier to work on (
Access Panel on page 57)
3. Remove the front bezel (
Front Bezel on page 58).
4. Free the two cables from the cable tie that is attached to the chassis.
5. Unplug the two cables from the system board.

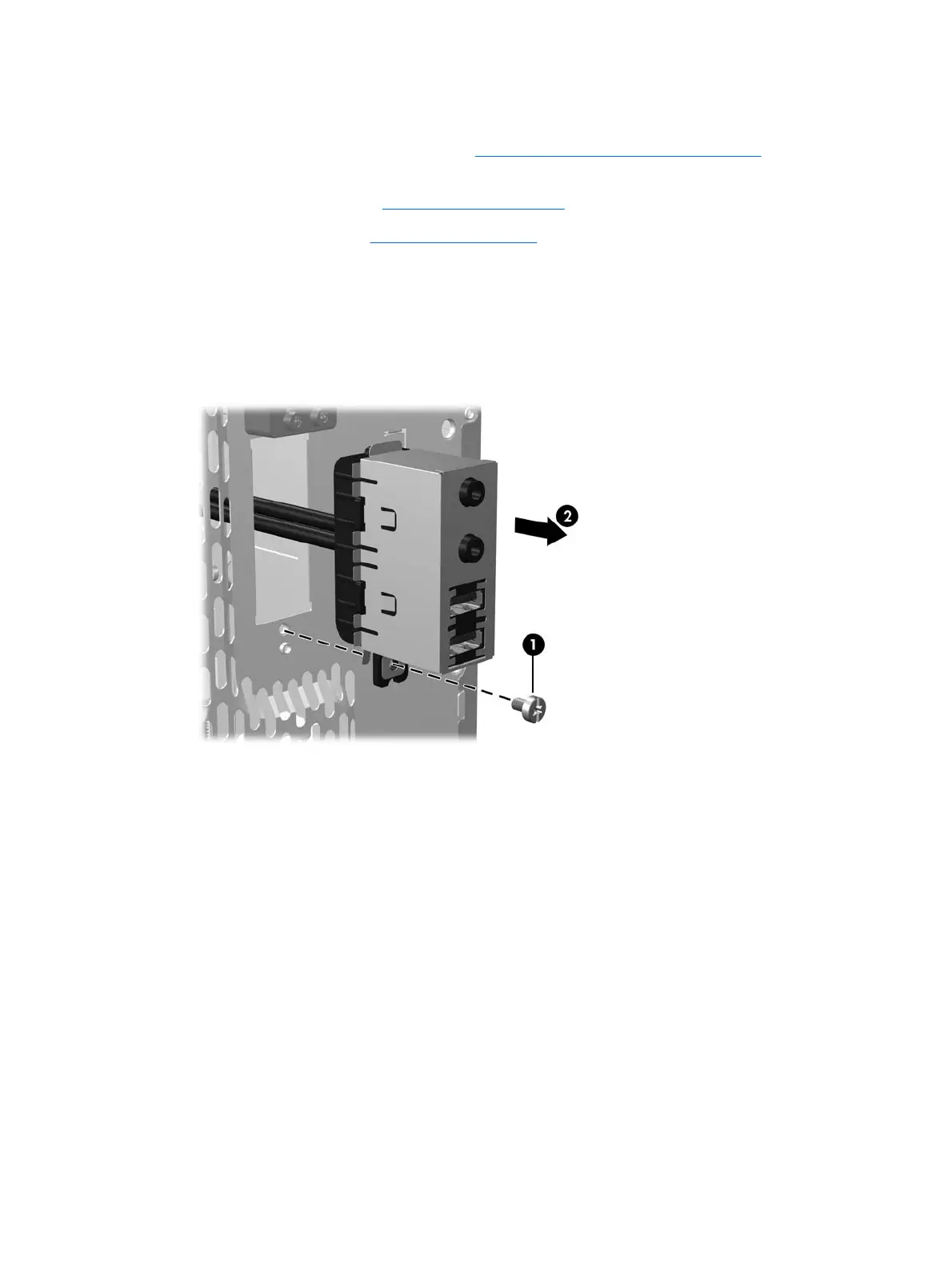

6. Remove the screw (1) that secures the housing to the chassis, and then rotate the housing toward
the top of the chassis and pull the assembly out of the chassis (2) while guiding the cables through
the hole in the chassis.
To install the housing assembly, reverse the removal procedures.
