Front Bezel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 56).
2. Remove the access panel (
Access Panel on page 57).

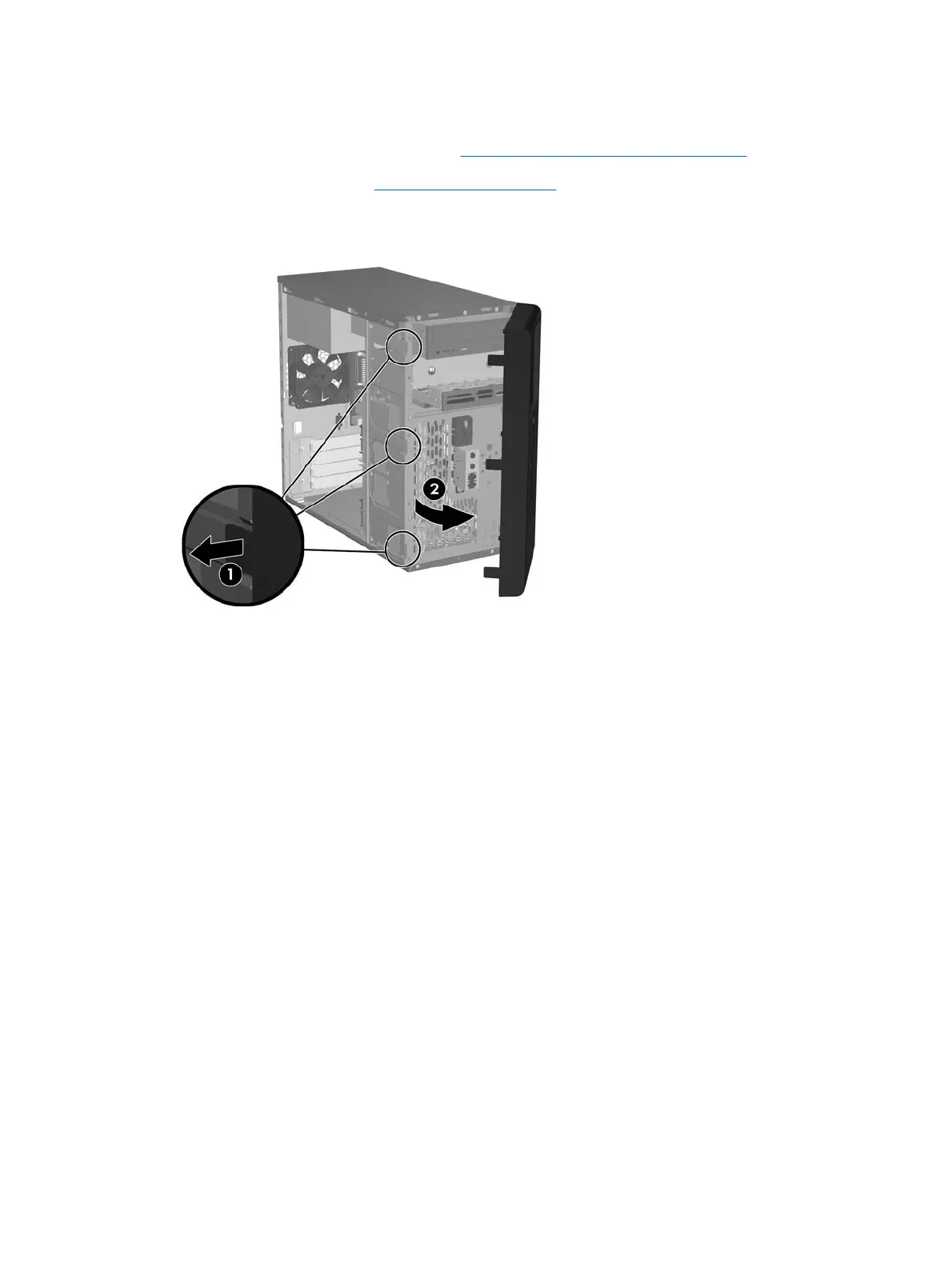

3. Pull outward on all three tabs on the left side of the bezel (1) then rotate the bezel off the chassis
(2), beginning with the left side then the right side.
To reinstall the front bezel, reverse the removal procedure.
58 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
