Chapter 2
Installing the System
Installing the Top and Side Covers
56
Installing the Top and Side Covers
This section describes the procedures for installing the top and side server covers.
NOTE You may be need to remove existing top and side covers installed on the server before installing
the covers shipped with the wheel kit. If cover removal is not needed, go directly to the sections
for installing the top and side cover.

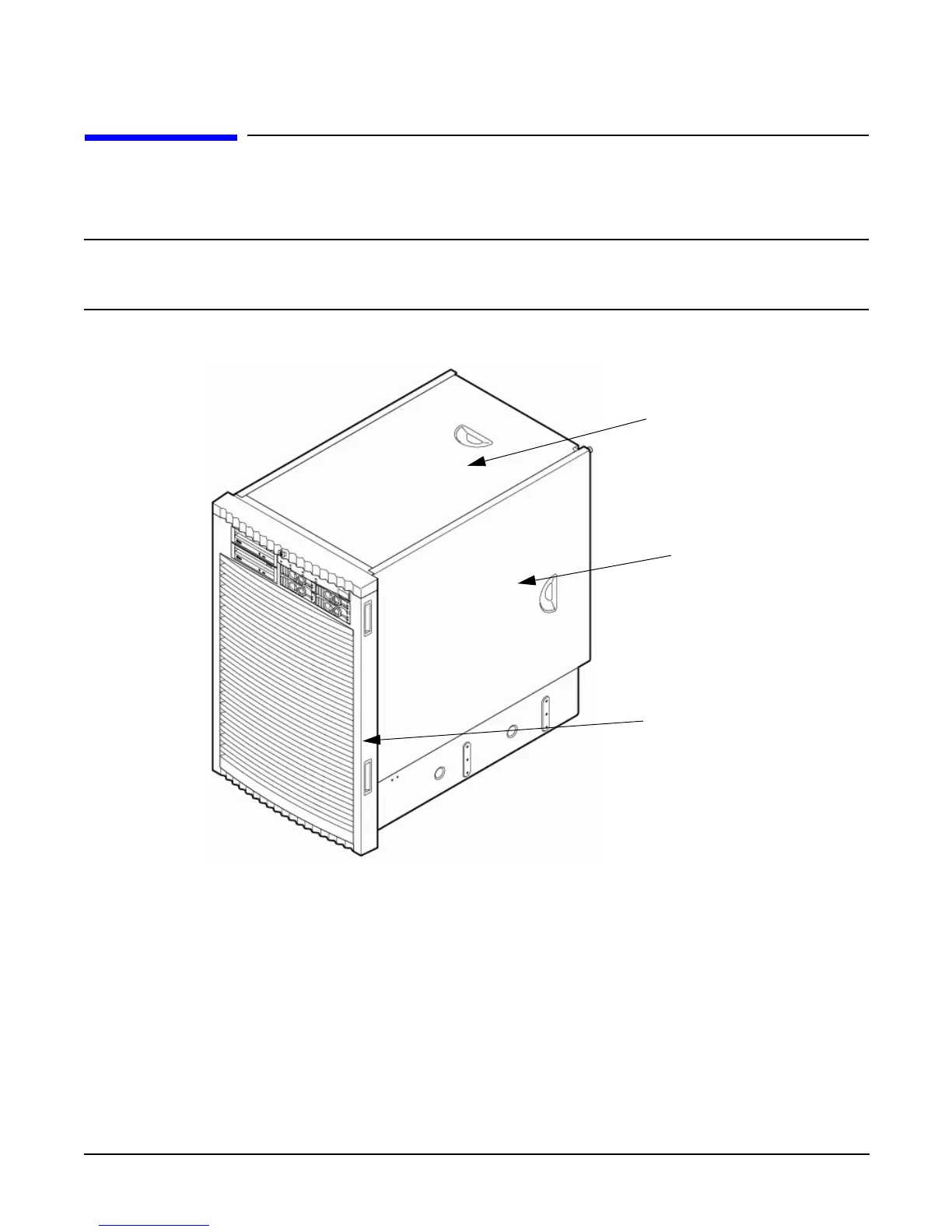

Figure 2-14 Cover Locations
Removing the Top Cover
The following section describes the procedure for removing the top cover.
Step 1. Connect to ground with a wrist strap.
Step 2. Loosen the blue retaining screws securing the cover to the chassis (Figure 2-15 on page 57).
Step 3. Slide the cover toward the rear of the chassis.
Step 4. Lift the cover up and away from the chassis.
Top Cover
Side Cover
Front Bezel
