Viewing Your Maps
Locating a Node

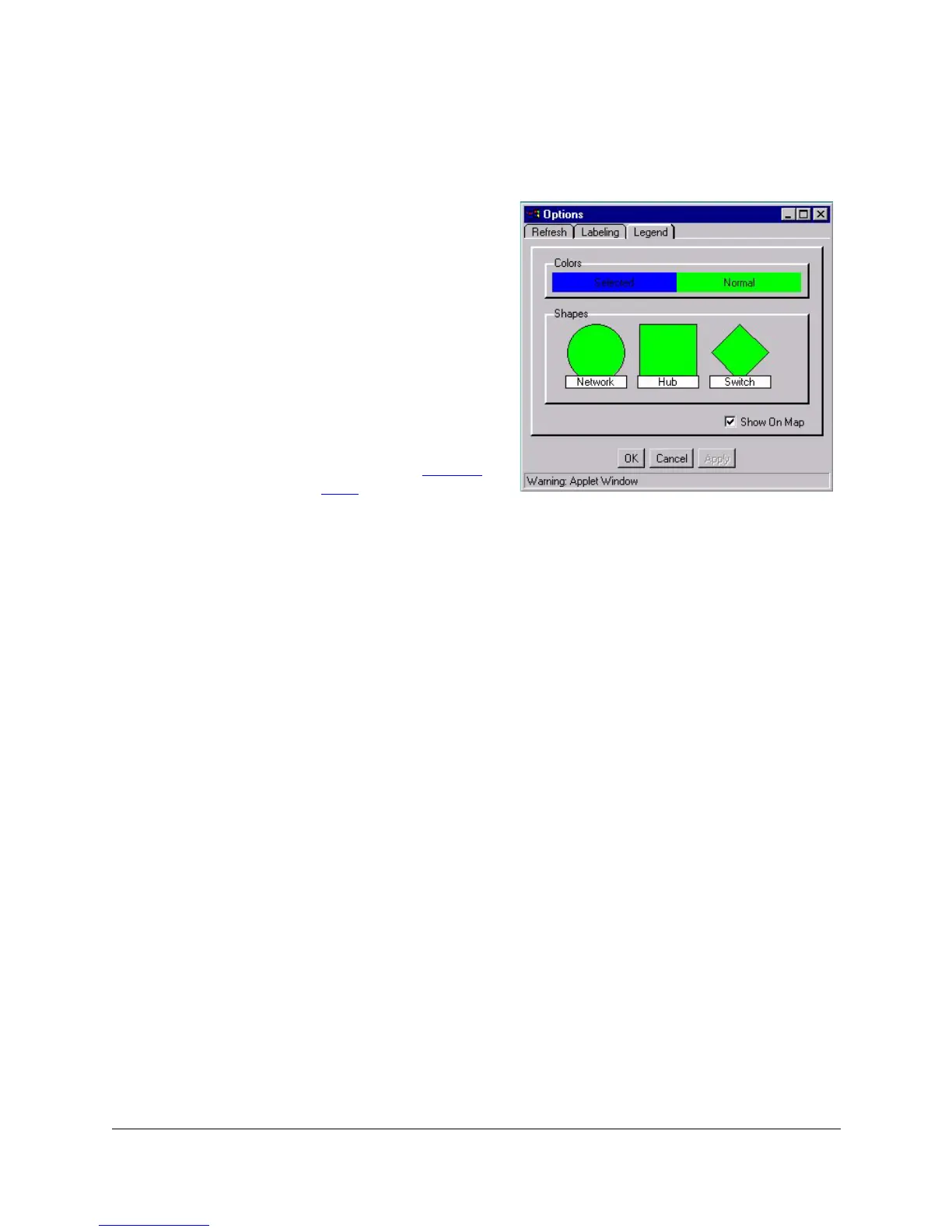

Options—Legend
Select this option to
display the legend for
the map. Check the box
Show on Map to have the
legend display on the
map. Click on Apply to
save your choices.
Changing Map
Views
Click on the Views
button to select the
style of map layout that
you prefer. See Default
View for an explanation
of the four styles.
Locating a Node
To locate a particular end node, click the Locate button at the bottom of the
page displaying a map. In the Locate browser window, select the network that
the node is in, then select the node. Click on the Locate button to locate the
node. A dialog box displays stating that the node has been found and the
appropriate map is opened (if it not open already).
Select Pan in the dialog box to set the panner window so that the located item
is enlarged and centered in the map. If Show labels is turned on, the label under
the located device is displayed in reverse video.
