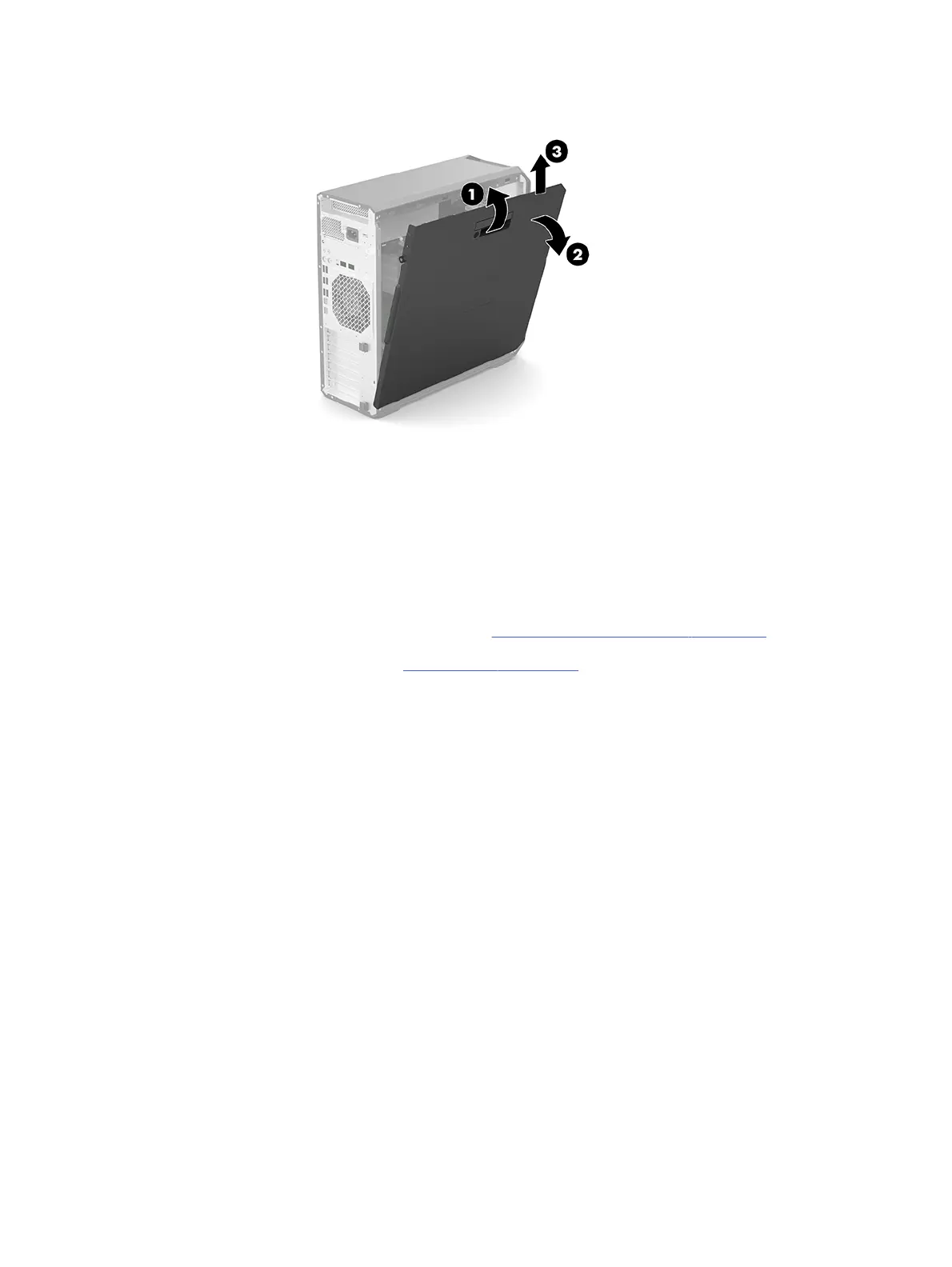

4. Remove the access panel (3) by lifting it straight up.
To install the access panel, reverse the removal procedure.
I/O assembly
To remove the I/O assembly, use these procedures.
Before removing the I/O assembly, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 18).
2. Remove the access panel (see Access panel on page 20).
Remove the I/O assembly:
1. Disconnect the I/O front audio cable (1) from the system board.
2. Disconnect the I/O assembly UI cable (2) from the I/O assembly.
3. Disconnect the I/O assembly USB cable (3) from the I/O assembly.
4. Disconnect the I/O assembly memory card reader cable (4) from the I/O assembly.
I/O assembly
21
