Before removing the storage device, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 18).
2. Remove the access panel (see Access panel on page 20).
Remove the storage device:

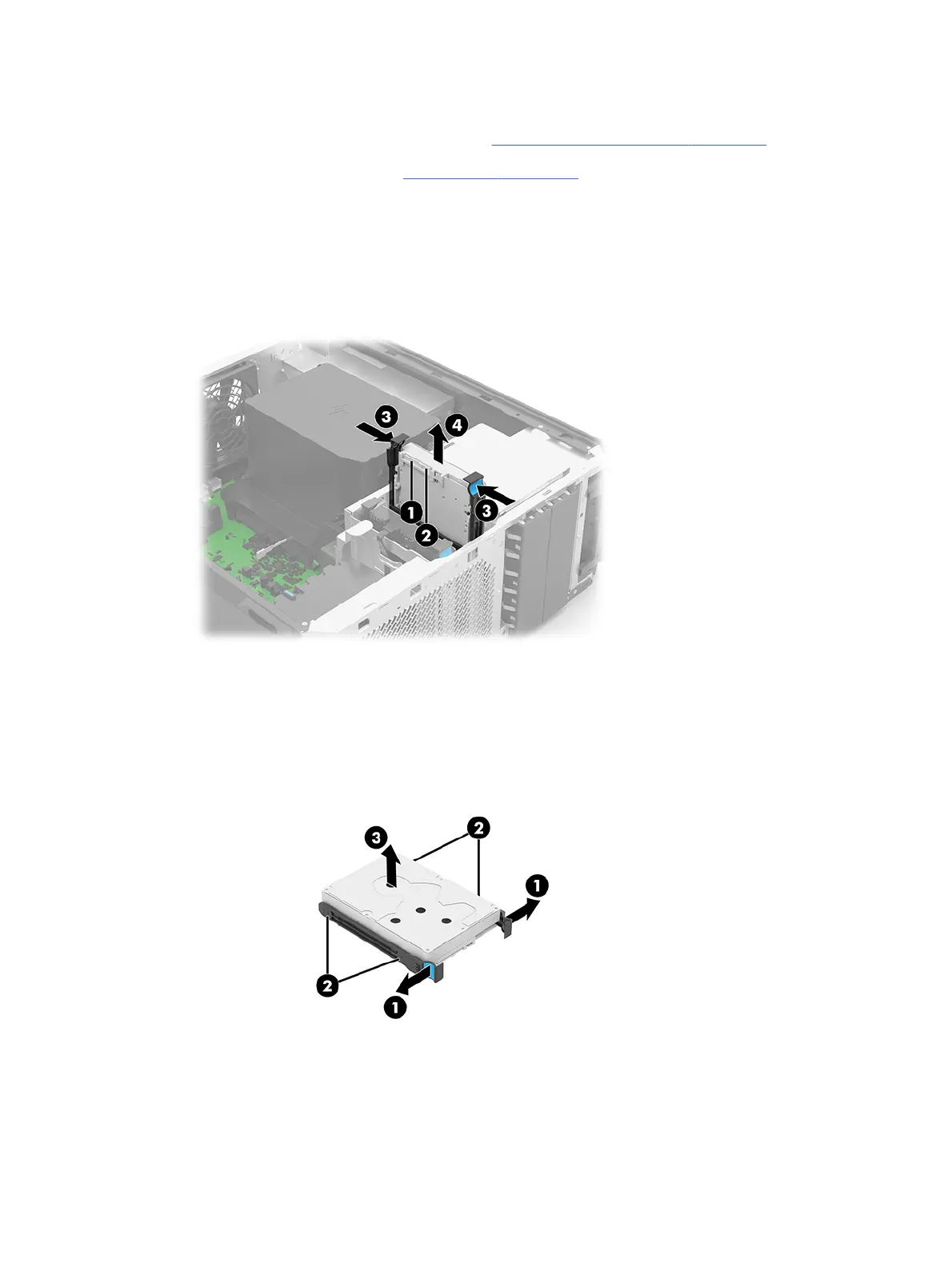

1. Disconnect the storage device power cable (1) and SATA cable (2) from the storage device.
2. Squeeze and hold the drive cage release tabs (3).
3. Remove the drive cage (4) from the computer.
4. Separate the drive cage retention arms (1) from the storage device, making sure the retention pins
(2) fully release from the device.
5. Remove the storage device (3) from the drive cage.
To replace the storage device, reverse the removal procedures.
