Removing a Riser Module
Step 1 Wear an ESD wrist strap. For details, see 5.2 ESD Protection.
Step 2 Power o the server. For details, see 5.4.2 Powering O the Server.
Step 3 Remove the power cables. For details, see 5.7 PSU.
Step 4 Remove the server. For details, see 5.4.4 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 5.8 Chassis Cover.
Step 6 For riser module 1 or 2, remove the screw that secures the riser module and lift
the module. See Figure 5-41 or Figure 5-42.

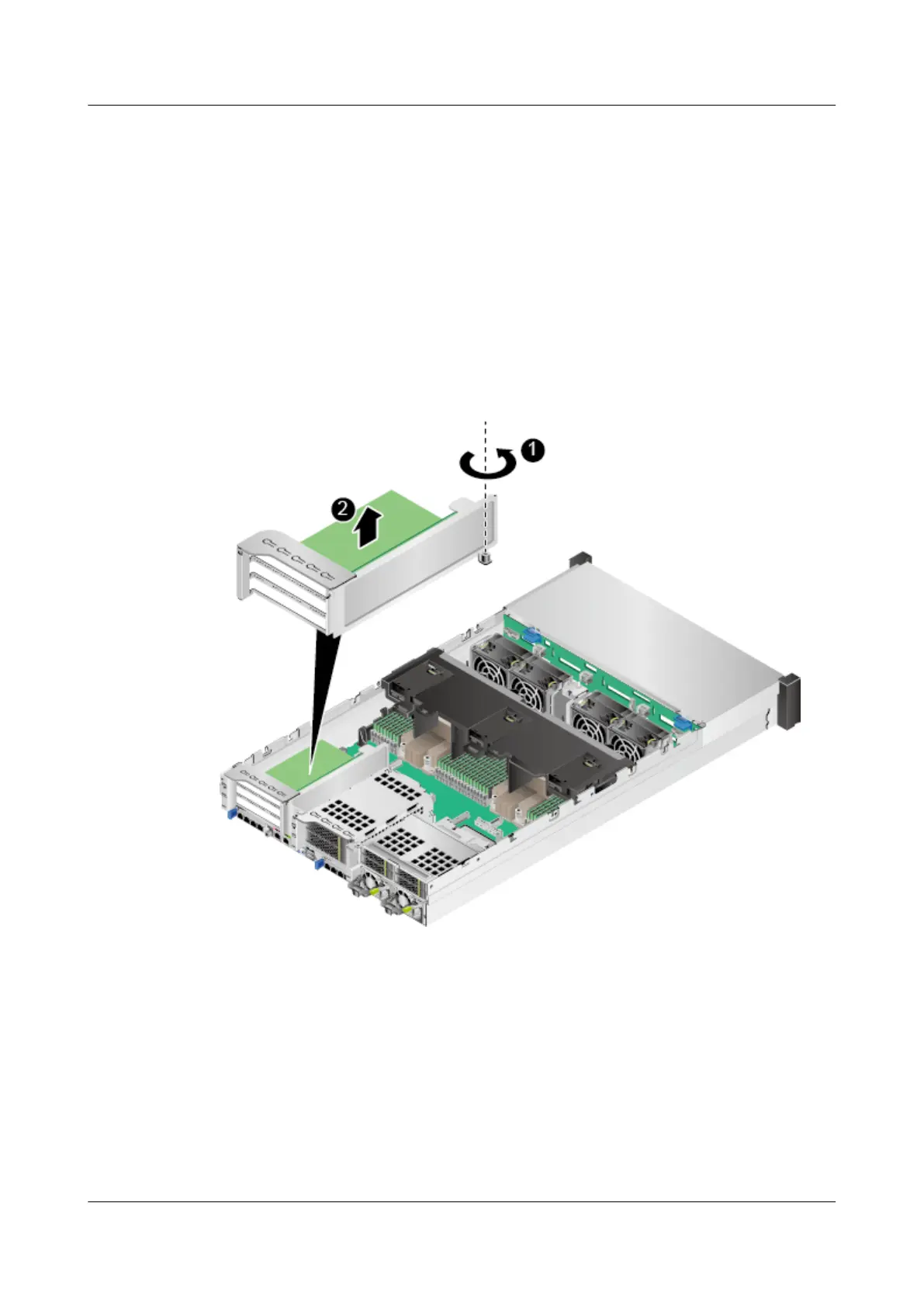

Figure 5-41 Removing the riser module 1
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 5 Removal and Installation
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 110
