● Figure 2-4 shows the components on the front panel of a server with 24 x 2.5
SAS/SATA pass-through drives.

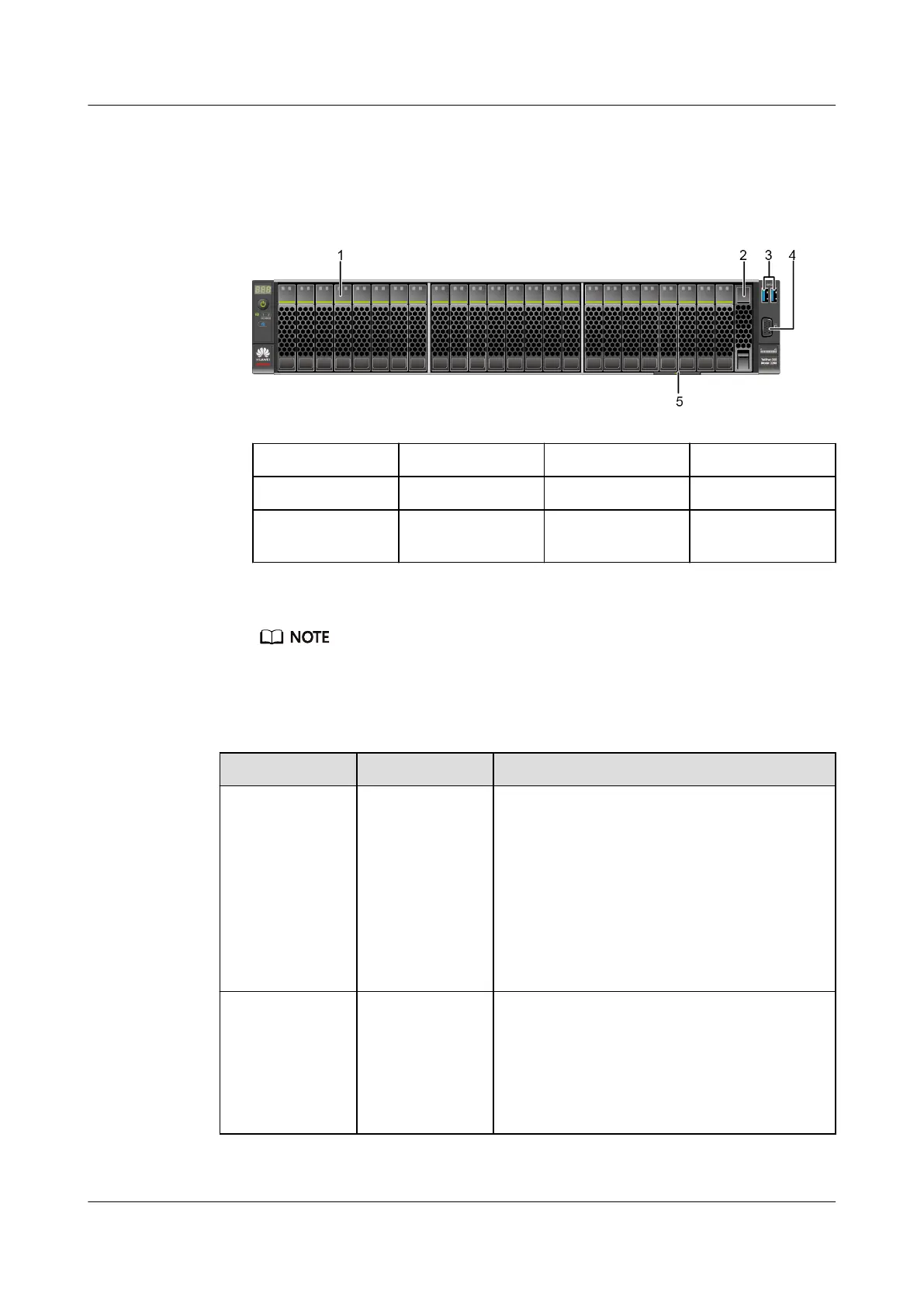

Figure 2-4 Components on the front panel of a server with 24 x 2.5 SAS/SATA
pass-through drives
1 Drive 2 Filler panel
3 USB 3.0 port 4 VGA port
5 Label plate with
an SN label
- -
Servers with Kunpeng 920 5220 or 3210 processors do not support the conguration
of 24 x 2.5-inch SAS/SATA pass-through drives.
Table 2-1 Description of ports on the front panel
Port
Type Description
USB port USB 3.0 The USB ports allow USB devices to be
connected to the server.
NOTE
● Before connecting an external USB device,
check that the USB device functions properly.
A server may operate abnormally if an
abnormal USB device is connected.
● If an external USB device is used, the
maximum length of the extension cable is 1
m.
VGA port DB15 The VGA port is connected to a terminal,
such as a monitor or physical KVM.
NOTE
The VGA port on the front panel does not have
cable screws. The VGA cable is easy to fall
o.
You are advised to use the VGA port on the rear
panel.
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 2 Components
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 6
