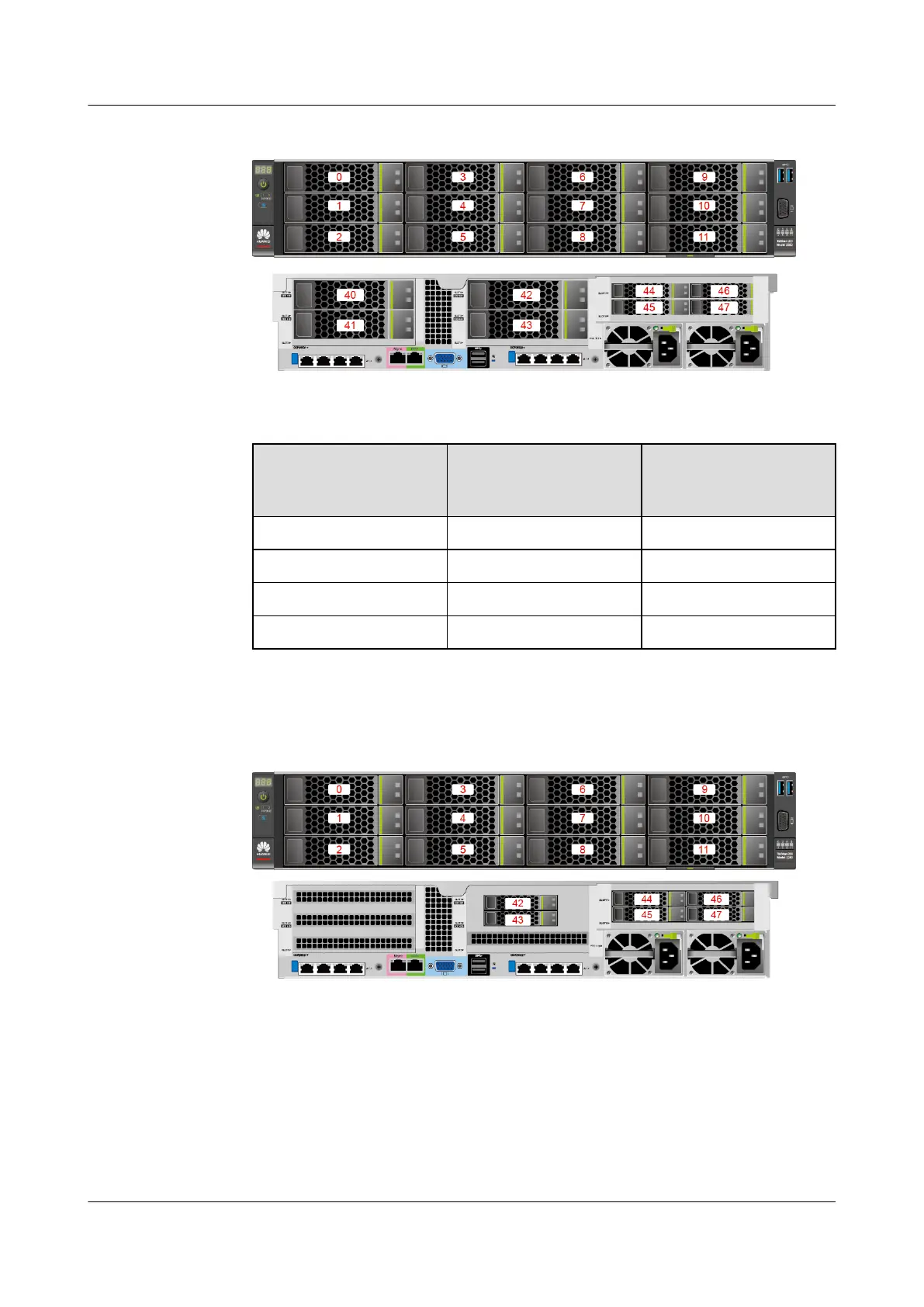

Figure 2-14 Server with 12 x 3.5-inch drives in Expander mode
Table 2-7 Drive slot numbers of a server with 12 x 3.5-inch drives in Expander
mode
Physical Slot Number Slot Number
Identied by iBMC
Slot Number
Identied by RAID
Controller
40 Disk40 12
41 Disk41 13
42 Disk42 14
43 Disk43 15
● Figure 2-15 shows the drive slot numbers of a server with 12 x 3.5-inch drives
in pass-through mode.
Figure 2-15 Server with 12 x 3.5-inch drives in pass-through mode
● Figure 2-16 shows the drive slot numbers of a server with 25 x 2.5-inch drives
in Expander mode.
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 2 Components
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 16
